The two detachable, software-adjustable external omnidirectional antennas work with the one internal directional antenna to provide you with up to 5000 square feet of coverage. Connect the 2.5G Ethernet port to a PoE+ compatible switch to transfer power and data over a single cable. Use the UniFi Network application to set up, configure, and manage your device. Your wireless connections are protected by WPA3 encryption.

UniFi Network Application Features
Manage networks from a single interface
Intuitive configuration options and robust device control and monitoring
Remote device firmware updates
Manage network users and guests
Personalize the design, architecture, and privacy of guest hotspots

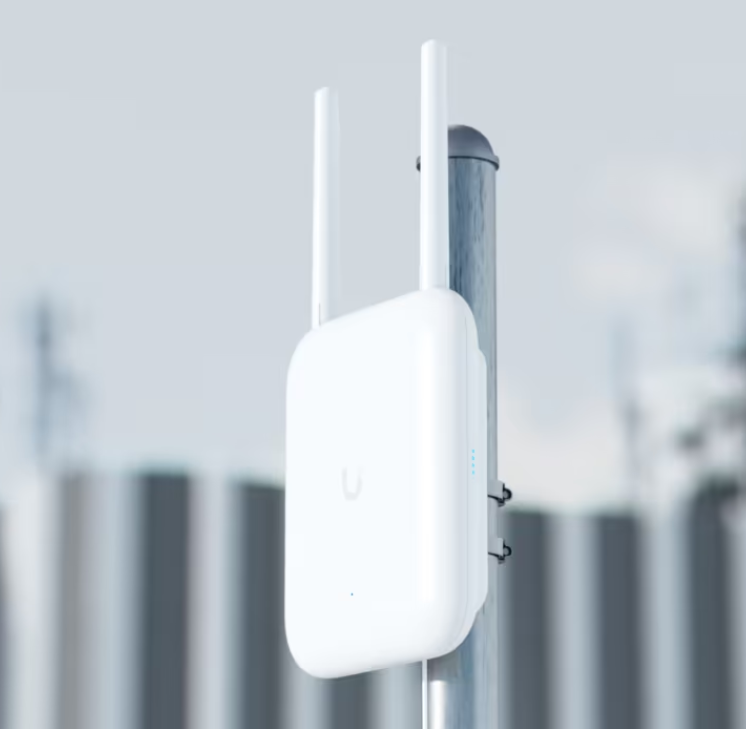

Outdoor Installation
This outdoor access point features IPX6-rated weatherproofing and can withstand up to 125 mph winds.

Overview
Dimensions: 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
WiFi Standard: WiFi 7
Spatial Streams: 4
Coverage Area: 465 m² (5,000 ft²)
Max. Client Count: 250+
Uplink: 2.5 GbE
Mounting: Wall, Pole (Mounts Included)
Weatherproofing: IPX6
Power Method: PoE+

Performance
MIMO
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain
5 GHz:
Directional internal: 12.5 dBi, 45° x 45°
External omni: 4 dBi, 360° x 30°
2.4 GHz:
Directional internal: 8 dBi, 90° x 90°
External omni: 3 dBi, 360° x 30°

Max. TX Power
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Hardware
Max. Power Consumption: 19W
Supported Voltage Range: 42.5–57V DC
Networking Interface: (1) 1/2.5 GbE RJ45 port
Weight: 1.2 kg (2.6 lb)
Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter: 1–2.36" (25–60 mm)

Antennas:
(1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna

Antenna beamwidth
5 GHz: 45°
2.4 GHz: 90°
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Polycarbonate, SGCC steel

LEDs:
System
(1) Power: White/Blue
(1) System: White/Blue
(4) Mesh Signal: Blue

Channel Bandwidth:
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant: Yes
Certifications: CE, FCC, IC, Anatel: 08999-24-08356
Operating Frequency: US/CA:
2400 - 2472 MHz:
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5850 MHz

Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software
Application Requirements
UniFi Network: Version 8.2.93 and later
