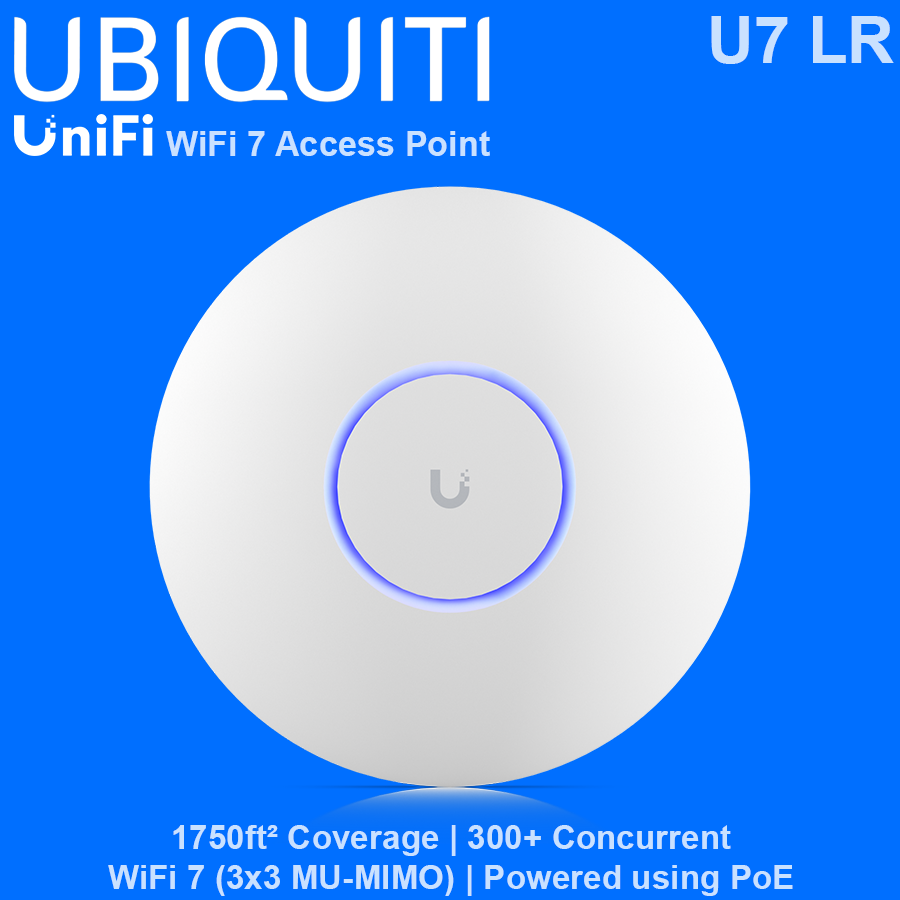

Experience reliable long-range wireless connections by expanding your network with the UniFi U7 Long-Range Dual-Band Wi-Fi 7 Access Point from Ubiquiti Networks. Supporting over 300 concurrent connections, this Wi-Fi 7 (802.11be) access point mounts onto a wall or ceiling to provide up to 4988 Mb/s transfer speeds over the 2.4 GHz and 5 GHz bands with about 1750 square feet of coverage.

Dimensions: 175.7 x 43 mm (6.9 x 1.7")
WiFi Standard: WiFi 7
Spatial Streams: 5
Coverage Area: 160 m² (1,750 ft²)
Max. Client Count: 300+
Uplink: 2.5 GbE
Mounting: Ceiling, Wall (Plastic Mounting Plate included)
Power Method: PoE

Performance
MIMO: 5 GHz 3 x 3 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz: 4.3 Gbps (BW160)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain
5 GHz: 6 dBi
2.4 GHz: 4 dBi

Max. TX Power
5 GHz: 27 dBm
2.4 GHz: 26 dBm

Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features
Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): YesYes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0): Yes
Captive Hotspot Portal
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-assigned VLAN: Yes

Hardware
Max. Power Consumption: 14W
Includes PoE Adapter: —
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 2.5 GbE RJ45 port
Weight: 448 g (15.8 oz)
Management: Ethernet
Enclosure Material: Polycarbonate, aluminum alloy
Mount Material: Polycarbonate, galvanized steel (SGCC)
LEDs
System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant: Yes
Certifications: CE, FCC, IC, Anatel
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software
Application Requirements
UniFi Network: Version 9.1.120 and later
Mobile App: iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
