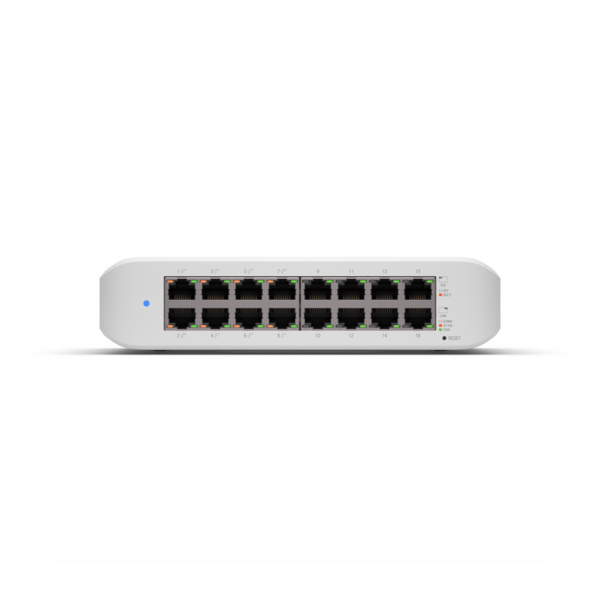

The Switch Lite 16 PoE (USW Lite 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices. The USW Lite 16 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:
(8) GbE, 802.3at PoE+ RJ45 ports
(8) GbE RJ45 ports
45W total PoE supply
Fanless, silent cooling
Wall-mountable (kit included)
Works with UniFi Network Application

Mechanical
Dimensions
191.7 x 185 x 43.7 mm
(7.55 x 7.28 x 1.72")

Weight
1.2 kg
(2.65 lb)

Hardware
Total Non-Blocking Line Rate - 16 Gbps
Max. Power Consumption - 15W
Power Method - Universal AC Input: 100-240VAC
Power Supply - Internal 60W AC/DC Power Supply
Networking Interfaces - (16) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces - (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Mangement Interface - Ethernet In-Band
Max PoE+ Wattage per Port by PSE - 30W
Modes - SMB Layer 2 PoE Gigabit Ethernet Switch
Operating Temperature - -15 to 40° C (5 to 104° F)
Operating Humidity - 10 - 90% Noncondensing
Certifcations - CE, FCC, IC

LED
System - (1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

Ethernet - Green: 1G, Amber: 10/100 Mbps
PoE - Amber: IEEE 802.3af/at
