Simultaneous, dual-band, 3x3 MIMO technology, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps.

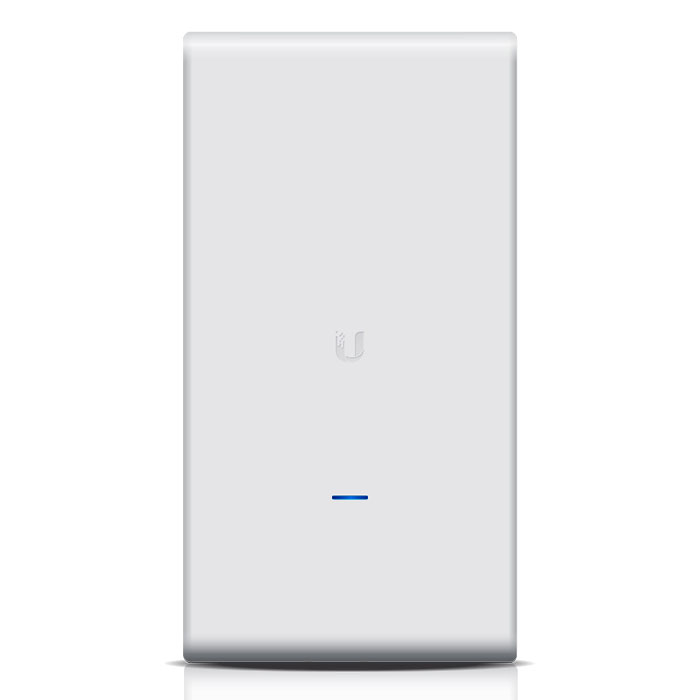

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Pro Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M-PRO is a high-performance, outdoor, 3x3 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps. It features a proprietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.

Dimensions - 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")
Weight - 633 g (1.40 lb)
Networking Interface - (2) 10/100/1000 Ethernet Ports
Ports - (2) 10/100/1000 Ethernet
Buttons - Reset
Antennas - 3 Dualband antennas
Wi-Fi Standards - 802.11a/b/g/n/ac
Power Method - 802.3af PoE
Power Supply - PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption - 9W
Max TX Power - 22 dBm
BSSID - Up to Four per Radio
Power Save - Supported
Wireless Security - WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications - CE, FCC, IC
Mounting - Wall/Pole (Pole Kit Included)
Operating Temperature - -40 to 70° C (-40 to 158° F)
Operating Humidity - 5 to 95% Noncondensing

VLAN - 802.1Q
Advanced QoS - Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM - Voice, Video, Best Effort, and Background
Concurrent Clients - 100+

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
