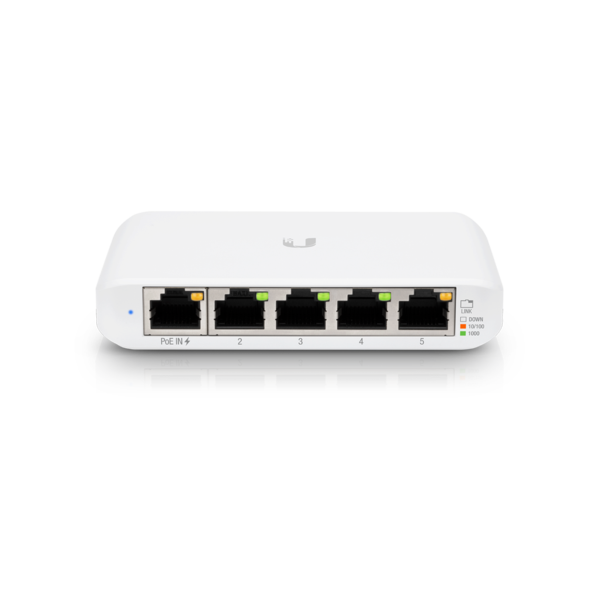

The Switch Flex Mini (USW Flex Mini) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input. The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:
(1) GbE, 802.3af PoE RJ45 input
(4) GbE RJ45 ports
Compact, slim housing
Can be powered with a 5V, 1A USB-C adapter
Works with UniFi Network Application

Mechanical
Dimensions
107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")

Weight
150 g (5.29 oz)

Networking
(5) 10/100/1000 Mbps RJ45 Ports

PoE In
802.3af/at PoE (Pins 1, 2+; 3, 6-)

Management
Ethernet In-Band

Total Non-Blocking Throughput
5 Gbps

Switching Capacity
10 Gbps

Forwarding Rate
7.44 Mpps

Power Method
USB Type C, 5V

802.3af/at PoE
(44 - 57VDC, 0.05 - 0.04A)

Power Supply
5V, 1A Power Adapter*

LEDs
System
RJ45 Data Ports
Status
Speed/Link/Activity

ESD/EMP Protection
± 16kV Air, ± 12kV Contact

Shock and Vibration
ETSI300-019-1.4 Standard

Operating Temperature
-5 to 45° C (23 to 113° F)

Operating Humidity
10 to 90% Noncondensing
