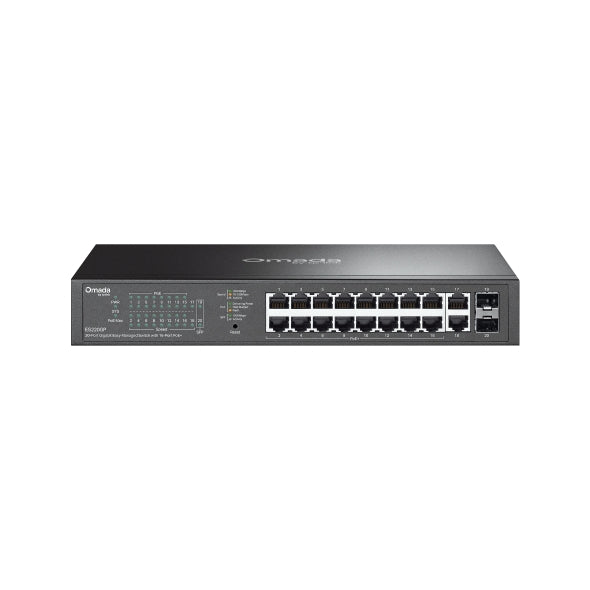

16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
2× Gigabit RJ45 port, 2× Gigabit SFP port
250W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

20× Gigabit Ports (16× PoE+, 2× RJ45, 2× SFP)
250 W Total PoE Budget
Up to 250m PoE Transmission
Easy Centralized Management
Automatic Loop Prevention
PoE Auto Recovery
Traffic Separation
Traffic Prioritization

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

HARDWARE FEATURES
Interface:
• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot

Fan Quantity: 2
Installation: Rackmountable
Physical Security Lock: Yes
Power Supply: 100–240 VAC, 50/60 Hz

PoE Ports (RJ45):
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 16 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance

Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection: ±6kV

PERFORMANCE
Switching Capacity: 40 Gbps
Packet Forwarding Rate: 29.76 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB

SOFTWARE FEATURES
Quality of Service:
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control

L2 Features:
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP

L2 Multicast:
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave

VLAN:
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

Transmission Method: Store-And-Forward

Management Features
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller

Management Features:
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration

Environment
• Operating Temperature: -5℃~50℃ (23℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
