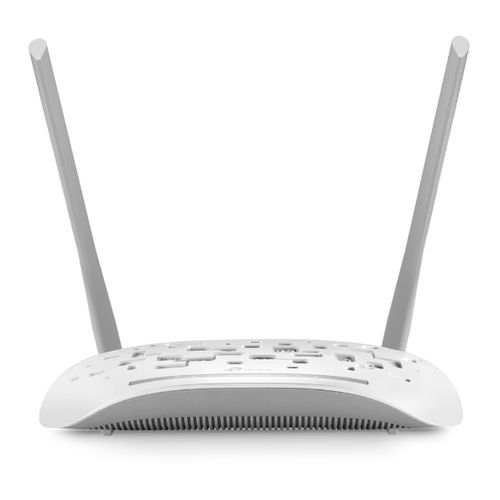

All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
Easy Setup Assistant with multi-language support provides quick & hassle-free installation
Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button

All-in-One Device with Stronger Wi-Fi
Combined with ADSL2+ modem and NAT Router, TD-W8961N is an incredibly robust all-in-one device that provides a full rate of ADSL2+ /ADSL2 /ADSL standard with the superb reliability and a cost-effective solution for home and small business.

Wi-Fi Speed Up to 300Mbps
With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, TD-W8961N is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.

Interface
4 10/100Mbps RJ45 Ports
1 RJ11 Port

Button
1 Power On/Off Switch
1 WPS Button
1 Wi-Fi On/Off Button

External Power Supply
9VDC/0.85A

IEEE Standards
IEEE 802.3, 802.3u

ADSL Standards
Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs),
ITU-T G.995.1

ADSL2 Standards
ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards
ITU-T G.992.5

Dimensions ( W x D x H )
7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )

Antenna Type
Omni directional, Fixed

Antenna Gain
2x5dBi

WIRELESS FEATURES
Wireless Standards
IEEE 802.11n, 802.11g, 802.11b

Frequency
2.400-2.4835GHz

Transmit Power
<20dBm(EIRP)

Wireless Security
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
Wireless MAC Filtering

SOFTWARE FEATURES
Quality of Service
QoS Remarking based on IPP/ToS, DSCP and 802.1p

Security
NAT Firewall,
SPI Firewall,
MAC / IP / Packet / Application / URL Filtering,
Denial of Service(DoS),
SYN Flooding,
Ping of Death

Management
Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP v1/2c,
SNMP over EOC,
Web Based Firmware Upgrade,
CWMP(TR-069),

Diagnostic Tools
Port Forwarding Virtual Server, DMZ, ACL(Access Control List)

VPN Pass-Through
PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols
ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC - Up to 8 PVCs

Advanced Features
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Mapping
VLAN, 802.1P,
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP
