10/100/1000Mbps PCIe Adapter
32-bit PCIe interface, saving the finite chassis space
Wake-on-LAN, convenient to manage over LAN

What This Product Does

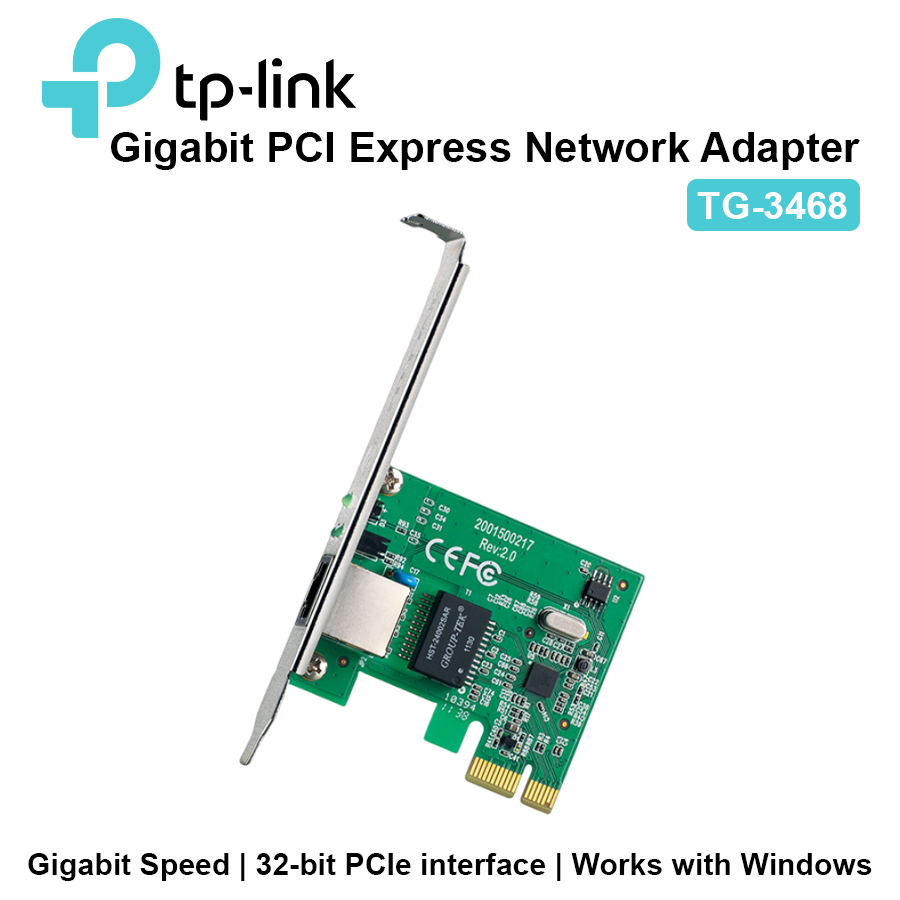

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface
32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED
Status

Wireless Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Data Rates
10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode

Dimensions ( W x D x H )
3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)

Flow Control
IEEE 802.3x Flow Control (Full-Duplex)
OTHERS

Package Content
Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide

System Requirements
Windows 11/10/8.1/8/7/XP/Vista (32/64bits)

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature
-40℃~70℃ (-40℉~158℉)

Operating Humidity
10%~90% non-condensing

Storage Humidity
5%~90% non-condensing
