Supports 802.11ac standard
Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
4 external antennas and one internal antenna provide stable wireless connections and optimal coverage
Easy network management at your fingertips with TP-Link Tether
MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once
Supports Access Point mode to create a new Wi-Fi access point

Smooth Entertainment with AC1200 Dual Band Wi-Fi

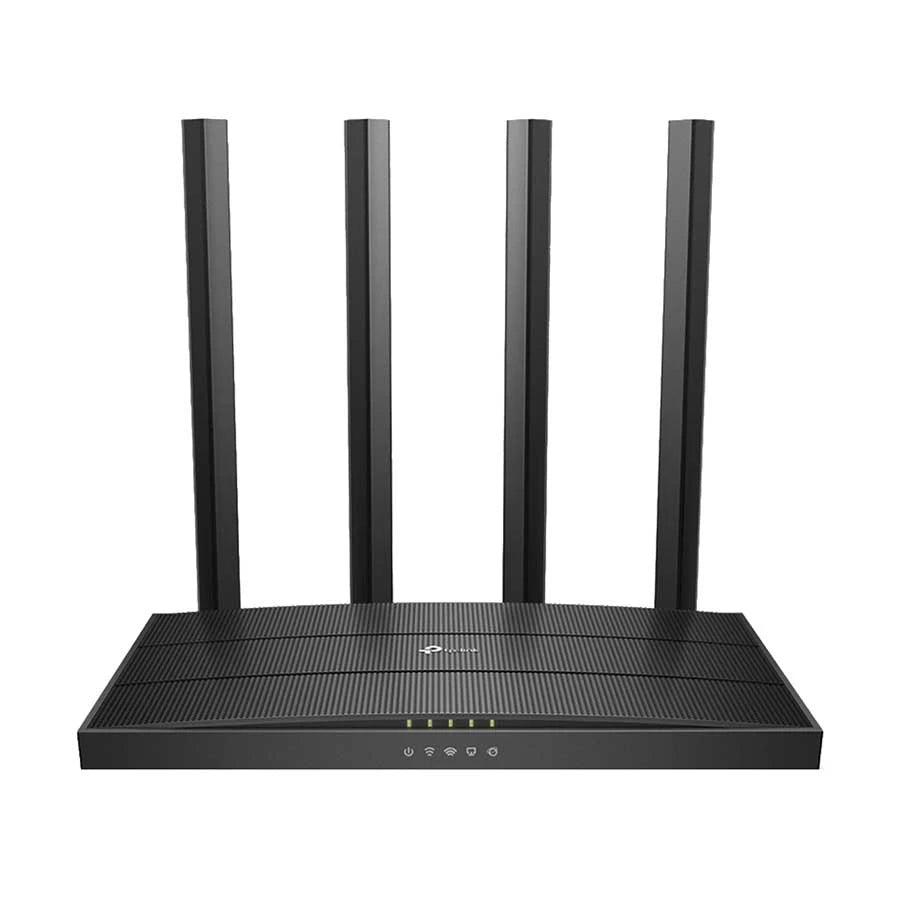

The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers
speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to
867Mbps, ideal for HD video streaming and lag-free online gaming.

5 High-Performance Antennas
Wi-Fi Coverage throughout Your Home
Four external antennas and one internal antenna send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony.With a powerful chipset, the Archer C6 provides ideal Wi-Fi coverage. The 2.4GHz band coverage is especially impressive, eliminating Wi-Fi dead-zones and beating that of other competing routers.

It’s An Access Point, Too
Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices.

MU-MIMO Matters
Increase Speed, Throughput, Capacity
MU-MIMO lets the Archer C6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!

Gigabit Connectivity, 10× Faster
With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than standard Ethernet
connections. Connect your favorite wired devices to the Archer C6 and get impressed!

Easy Setup and Management with the Tether APP
The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C6 and manage your network settings.

Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds - AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range - 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity - Medium
Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Working Modes - Router Mode
Access Point Mode

HARDWARE
Processor - Qualcomm CPU

Ethernet Ports - 1× Gigabit WAN Port
4× Gigabit LAN Ports

Buttons - WPS/Wi-Fi Button
Power On/Off Button
Reset Button

Power - 12 V ⎓ 1 A

SECURITY
WiFi Encryption EU Version:
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

US, TW Version:
WPA
WPA2
WPA3

Network Security - SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network - 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server - OpenVPN
PPTP
SOFTWARE

Protocols - IPv4
IPv6

OneMesh™ - OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Parental Controls - URL Filtering
Time Controls

WAN Types - Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service - QoS by Device
NAT Forwarding Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV - IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP - Address Reservation
DHCP Client List
Server

DDNS - NO-IP
DynDNS

Management - Tether App
Webpage

PHYSICAL
Dimensions (W×D×H) - 9.1 × 5.7 × 1.4 in
(230 × 144 × 35 mm)
