EXPERIENCE WIFI LIKE NEVER BEFORE

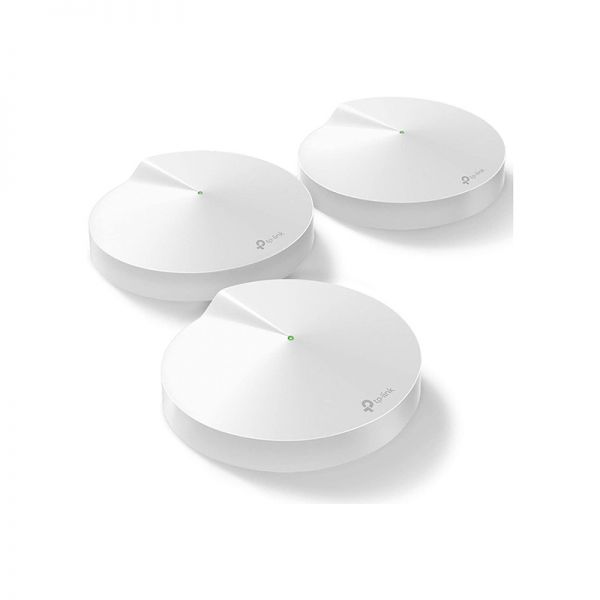

Deco M5 uses new technology to cover your entire home in powerful WiFi. With multiple units working together seamlessly, Deco M5 creates a home network like nothing you've ever experienced.

No More Dead Zones
Deco M5 delivers WiFi up to 5,500 sq. ft. to cover homes of all sizes and shapes, from the corner bedroom to the backyard.*

High-Speed WiFi
Every Deco unit acts like a router to keep your Wi-Fi running fast, and a Deco M5 system can keep 100-plus devices connected at once.*

One Network, One Name
With Deco M5, you can walk from room to room with your smartphone or tablet and stay connected on a single Wi-Fi network

A MORE SECURE WIFI SYSTEM
Deco M5 protects your personal data and every connected device from online threats like viruses and malware. The system also makes it easy to customize WiFi access for guests and family.

Hands-Off WiFi
Deco M5 adjusts automatically to give you the best connections when you add devices or walk around the house.

App-Based Setup
Set up in minutes through the Deco app, and never fear—Deco M5 works with any modem or ISP.

Voice Control
When paired with Alexa, you can control Deco M5 with simple voice commands.

Easy Management
In just a few taps, monitor and manage your WiFi settings at home or away with the Deco app.

WIRELESS
Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds - AC1300
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)

WiFi Range - 3-5 Bedroom Houses (3-pack)

TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity - Medium
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Working Modes
Router Mode
Access Point Mode

HARDWARE
Processor - Qualcomm 717 MHz Quad-core CPU
Ethernet Ports - 2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons - Reset Button
Power - 12 V ⎓ 1.2 A

SECURITY
WiFi Encryption
WPA-Personal
WPA2-Personal

Network Security
SPI Firewall
Access Control

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

SOFTWARE
Protocols
IPv4
IPv6

Service Kits
HomeCare™

Parental Controls
HomeCare™ Parental Controls
Custom Profiles
Content Filtering
URL FIltering
Time Limit
Time Schedule (Bed Time)
Log Insight
Usage Monitor
Monthly Reports

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
HomeCare™ QoS
QoS by Device
QoS by Application

Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List

Server
DDNS
TP-Link

Management
Deco App

PHYSICAL
Dimensions (W×D×H)
4.7 × 4.7 × 1.5 in
(120 × 120 × 38 mm)
