Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.

Connect More Devices—OFDMA and MU-MIMO technology increase capacity by 4 times to enable simultaneous transmission to more devices.

Ultra-Low Latency—Up to 75% reduction in latency enables more responsive gaming and video chatting.

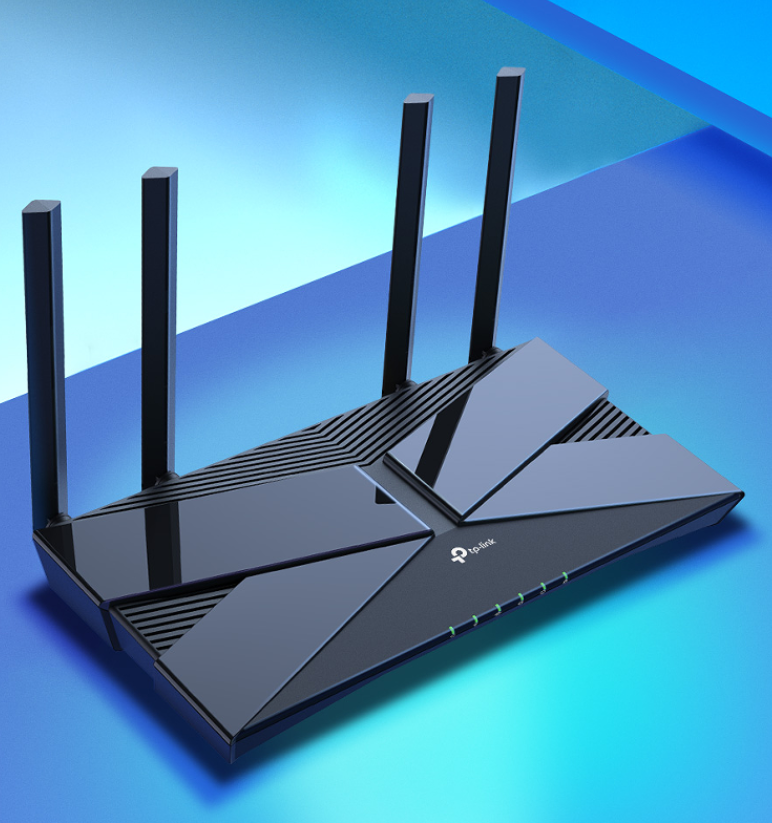

Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.

Improved Security—More secure and trusted Wi-Fi with TP-Link HomeCare™.

Reliable Connections—Intel® Home Wi-Fi Chipset greatly increases processing speed to deliver superior Wi-Fi 6 Gig+ performance.

Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.

Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

The Next Generation of Wi-Fi is Upon Us
Wi-Fi 6 (802.11ax) could turn out to be the most significant advancement in Wi-Fi development, delivering a huge boost in speed and total capacity. Mainstream adoption of Wi-Fi 6 is inching ever closer with more and more AX clients available. It's the right time to upgrade your router to the newest generation of Wi-Fi!

Blazingly Fast Gig+ Speed Can't Wait
There is no reason to hold off on buying a Wi-Fi 6 router when you can already take full advantage of the speed it delivers. Featuring a 160 MHz bandwidth and 1024-QAM, Archer AX50 delivers true gigabit speeds of up to 3 Gbps. Enjoy faster streaming and gaming like never before. Powered by Intel® Home Wi-Fi WAV654 chipset for a full-featured Wi-Fi 6 AX3000 router, to pair perfectly with new Intel® Wi-Fi 6 Gig+ PCs and laptops, allowing numerous bandwidth-intensive tasks to run smoothly at the same time

Reliable Connections for up to 256 Devices
In answer to ever growing demands on home Wi-Fi, Archer AX50 future-proofs your home networks by providing 4× greater capacity to connect more devices. Advanced technologies, such as OFDMA and MU-MIMO, quadruple the connection capacity in high-density scenarios compared to standard 802.11ac routers. Keep pace with the latest technology and future developments.

Lower Latency,
Greater Experience.
Taking a giant leap forward in wireless connectivity, Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow's hyperconnected homes. Enjoy more responsive gaming and seamless video conferencing even when multiple compatible device are connected and transmitting data at the same time.

Reduce Devices’
Power Consumption
While Wi-Fi 6 clients are starting to hit the market in meaningful numbers, the newest AX technology—Target Wake Time—helps your devices to communicate more while consuming less power. Mobile and IoT devices that support TWT negotiate when and how often they will wake up to send or receive data, increasing sleep time and substantially prolonging battery life

Easy Management with Tether
Set up your router in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings, including parental controls and media sharing, from any Android or iOS device.

Standards - Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds - AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Range - 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power - FEM
Improves transmission power to strengthen signal coverage

WiFi Capacity - High

Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

4 Streams
Connect your devices to more bandwidth
Working Modes - Router Mode
Access Point Mode

HARDWARE
Processor - Dual-Core CPU
Ethernet Ports -
1× Gigabit WAN Port
4× Gigabit LAN Ports

Static Link Aggregation - (LAG) available with 2× LAN ports
USB Support - 1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

Buttons - Wi-Fi/WPS Button
Power - On/Off Button
LED - On/Off Button
Reset - Button
Power - 12 V ⎓ 2 A

SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Network Security - SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

Guest Network -
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server - OpenVPN
PPTP

SOFTWARE
Protocols - IPv4
IPv6

Service Kits - HomeCare™

Parental Controls - HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight

WAN Types - Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service - QoS by Device

HomeCare™ QoS
QoS by Application

Cloud Service - Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding - Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP - Address Reservation
DHCP Client List
Server

DDNS - TP-Link
NO-IP
DynDNS

Management - Tether App
Webpage

PHYSICAL
Dimensions (W×D×H) - 10.2 × 5.3 × 1.5 in
(260.2 x 135.0 x 38.6 mm)
