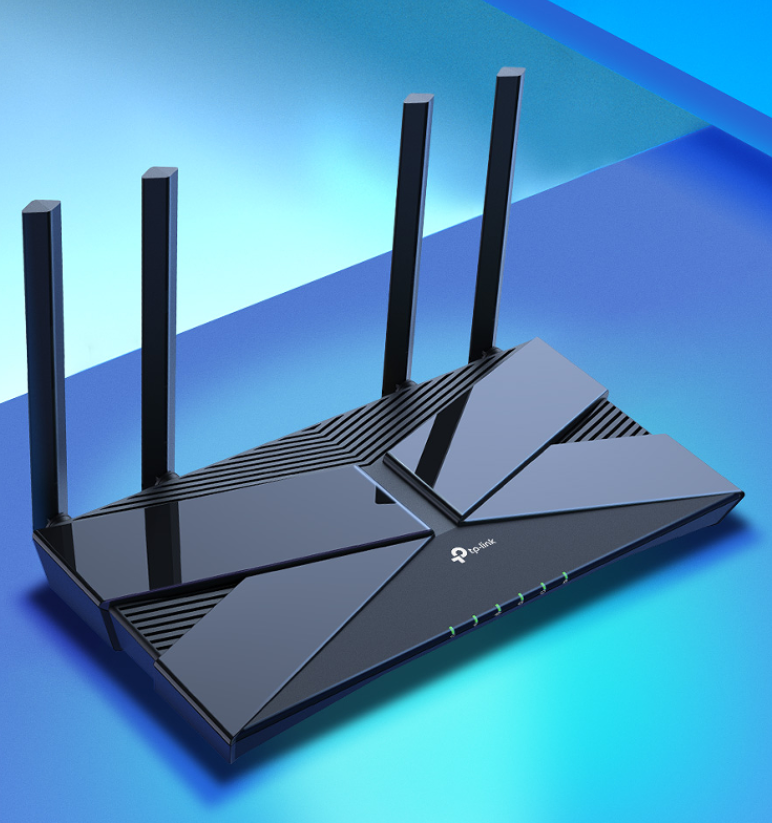

Wi-Fi 6 Technology—Archer AX10 comes equipped with latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.2 6
Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches fast speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)1
Connect More Devices than Ever Before—Wi-Fi 6 technology simultaneously communicates more data to more devices using OFDMA and MU-MIMO while reducing lag.3 5
Triple-Core Processing—The 1.5 GHz tri-core processor ensures communications between your router and all connected devices are smooth and buffer-free.
More Reliable Coverage—Achieve the strongest, most reliable WiFi coverage with Archer AX10 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
Increased Battery Life—Target Wake Time technology reduces your devices' power consumption to extend their battery life.4
Easy Setup—Set up your router in minutes with the powerful TP-Link Tether App
Backward Compatible—Archer AX10 supports all previous 802.11 standards and all WiFi devices

Advanced, Revolutionary Wi-Fi 6
Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest WiFi technology to wipe out all the annoying slowdown, and enjoy the future network that loads faster and connects more.

Beyond Gigabit Speeds
The latest 1024-QAM and higher symbol rate work to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps WiFi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.

Connect More Devices
Add more WiFi devices without dragging down performance. OFDMA allows multiple devices to use one band at the same time, enabling your WiFi to bear more devices compared to the same speed level Wi-Fi 5 router

Less Lag, More Fun
Wi-Fi 6 increases the efficiency of transmits data, cutting the lag. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices—all at the same time.

Triple-Core Processor
Instant Response to Every Click
A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy a more instant response when you click the play button and get better quality for online video chatting.

Boosted Wi-Fi Coverage
Beamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for all your devices.

Gigabit Broadband Internet Access
The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.

Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.

Ready for Today and Tomorrow's Smart Home
With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.

Parental Controls
Block inappropriate content and restrict time spent online

VPN Service
Safely reach files in your home, wherever you are, with a secure VPN connection

Quality of Service
Prioritize devices and applications for faster performance when needed

Standards - Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds - AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range - 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity - High
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth

Working Modes - Router Mode
Access Point Mode

HARDWARE
Processor - 1.5 GHz Triple-Core CPU

Ethernet Ports - 1× Gigabit WAN Port
4× Gigabit LAN Ports

Buttons - WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button

Power - 12 V ⎓ 1 A

SECURITY
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security - SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network - 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server - OpenVPN
PPTP

SOFTWARE
Protocols - IPv4
IPv6

OneMesh™ - OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Parental Controls - URL Filtering
Time Controls

WAN Types - Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service - QoS by Device

Cloud Service - Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding - Port Forwarding
Port Triggering
DMZ
UPnP

IPTV - IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP - Address Reservation
DHCP Client List
Server

DDNS - TP-Link
NO-IP
DynDNS

Management - Tether App
Webpage

PHYSICAL
Dimensions (W×D×H) - 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
