Ultra-Fast Wi-Fi for Extreme Gaming – AX11000 speed machine that delivers Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)1
Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive
Game Protector – Keep your accounts and documents safe with a free lifetime subscription of Homecare™ security system.7
Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
Ultra Connectivity - 2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.6
Powerful Processing – 1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
Highly Efficient – OFDMA increases the avg. throughput and reduces the lag.2
Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

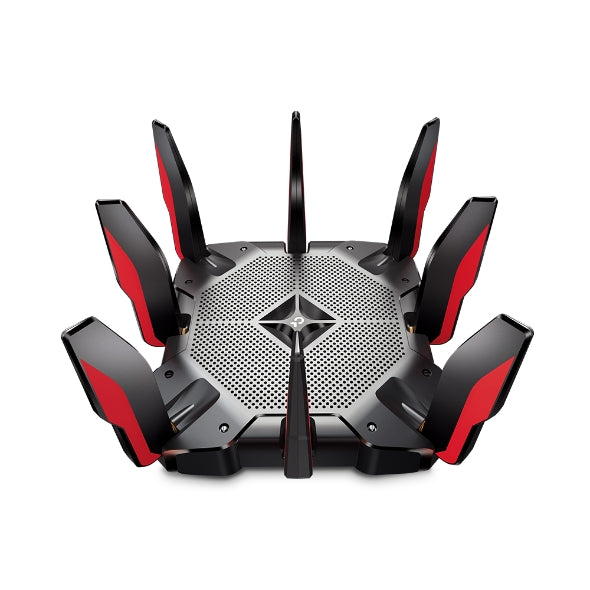

Faster speed the router is, less congestion for gaming rigs. Armed with Wi-Fi 6, Archer AX11000 becomes the next-level speed machine that offers astonishing Wi-Fi speeds up to 10756 Mbps with an extended range.

LIGHTNING ATTACK TO DEFEAT LATENCY
More connected devices shall bring more fun rather than dragging the performance.1 Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency.2 3 Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

OFDMA2
Multiple devices share
one channel at same time.

MU-MIMO2
Offer 4×4 connections
to reduce wait time

BSS COLOR
Keep transmission under
overlapped signals.

CRUSH THE LAG WIN THE GAME
GAME ACCELERATOR automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.

KNOW YOUR NETWORK
GAME STATISTICS shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.

KEEP ALL ELEMENTS SECURITY
GAME PROTECTOR keeps your accounts and system safe. This free lifetime subscription of the HomeCare™ security system delivers comprehensive antivirus protection that ensures your total security while gaming online.

GAME ON THE FAST LANE
GAMING BAND—a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.
DFS expands available channel automatically, get on the more vacant lane and boost the game.

BATTLE-TESTED HARDWARE
Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.

READY FOR TODAY AND TOMORROW'S SMART HOME
With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.

Standards - Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds - AX11000
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 1148 Mbps (802.11ax)

WiFi Range - 4-6 Bedroom Houses
8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity - Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

12 Streams
Connect your devices to more bandwidth
Working Modes - Router Mode
Access Point Mode

HARDWARE
Processor - 1.8 GHz 64 Bit Quad-Core CPU
Ethernet Ports - 1× 2.5 Gbps WAN Port
8× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports
USB Support - 1× USB-C 3.0 Port
1× USB-A 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

Buttons - Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button

Power - 12 V ⎓ 5 A

SECURITY
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security - SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

Guest Network - 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server - OpenVPN
PPTP
SOFTWARE

Protocols - IPv4
IPv6

Game Center - Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits - HomeCare™

Parental Controls - HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight

WAN Types - Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service - Game Accelerator QoS
QoS by Device

HomeCare™ QoS
QoS by Application

Cloud Service - Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding - Port Forwarding
Port Triggering
DMZ
UPnP

IPTV - IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP - Address Reservation
DHCP Client List
Server

DDNS - TP-Link
NO-IP
DynDNS

Management - Tether App
Webpage

PHYSICAL
Dimensions (W×D×H) - 11.3 × 11.3 × 7.2 in
(288 × 288 × 184 mm)
