Homeplug AV2 standard compliant
Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters

Dual band 802.11ac Wi-Fi
AC750 dual band Wi-Fi (433Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home

Wi-Fi Auto-Sync
Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move

Gigabit Ethernet Ports
Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS

Plug, Pair and Play
Quickly set up a secured Powerline network

Extend Wired and Wireless Network Using Electrical System

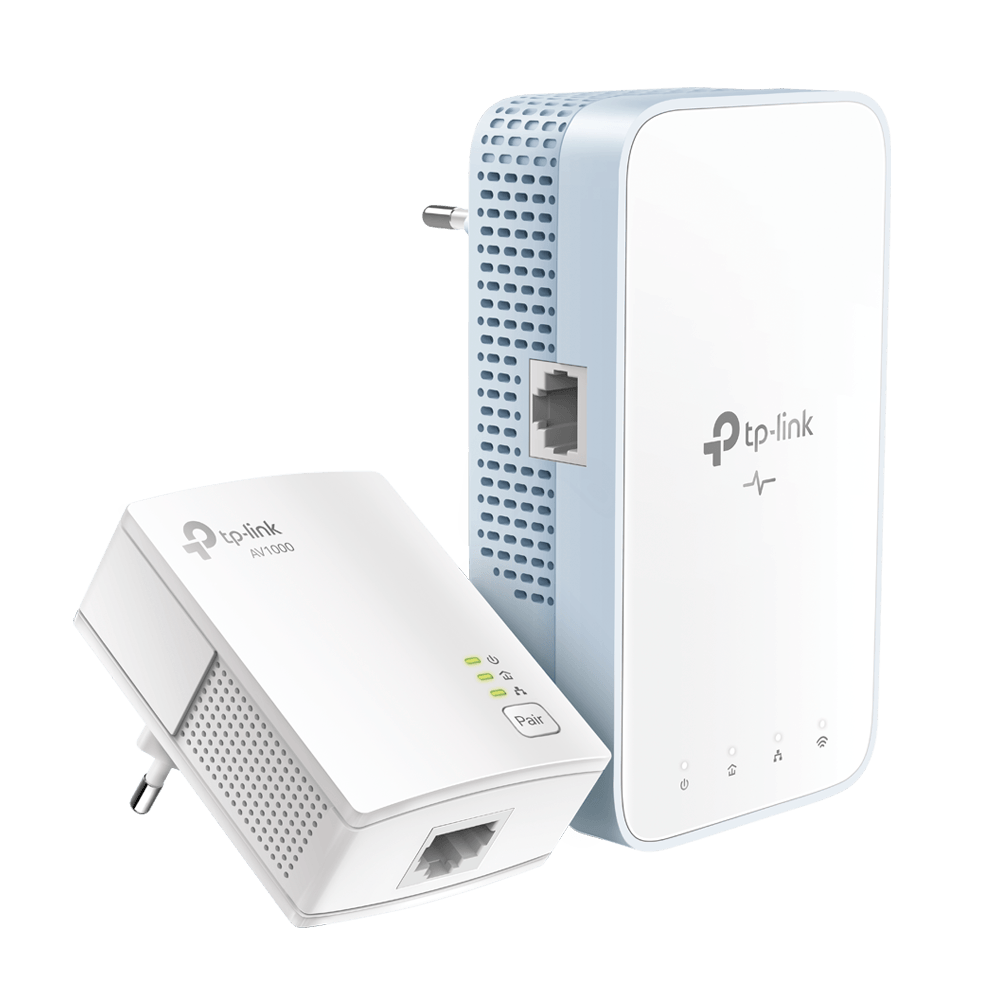

TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.

> No need for drilling or wire installation
> Network passes through walls and floors
> Expand coverage by adding more extenders
> Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

AC750 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.

One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.

Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.

Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.

View real-time powerline speed
LED control (also controlled by LED On/Off button)
Guest network

HARDWARE FEATURES

Transmission Speeds: Powerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
Plug Type: US
Interface: TL-WPA7517: 1 Ethernet Port
TL-PA7017: 1 Ethernet Port
Button: Pair, Reset, Wi-Fi Clone, LED On/Off
Max. Power Consumption: TL-WPA7517: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6W
LED: Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
Dimensions ( W x D x H ): TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
Range: Up to 300 meters / 1000 feet range over the existing household power circuit

WIRELESS FEATURES
Wireless Standards:
• TL-WPA7517: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
• TL-PA7017: N/A

Frequency:
• TL-WPA7517: 2.4 GHz and 5 GHz
• TL-PA7017: N/A

Signal Rate:
• TL-WPA7517: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
• TL-PA7017: N/A
Wireless Security: WPA-PSK / WPA2-PSK, WEP Encrptions

SOFTWARE FEATURES
Mesh Technology: EasyMesh-Compatible
Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products.

Modulation Technology: OFDM (PLC)
Encryption: Powerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE

OneMesh: OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

PHYSICAL

Dimensions (W×D×H):
• TL-WPA7517: 2.7 × 1.4 × 4.9 in (69.5 × 35 × 124.1 mm)
• TL-PA7017: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)

Package Content:
• AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
• 2× Ethernet Cables
• 1× Quick Installation Guide

System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
