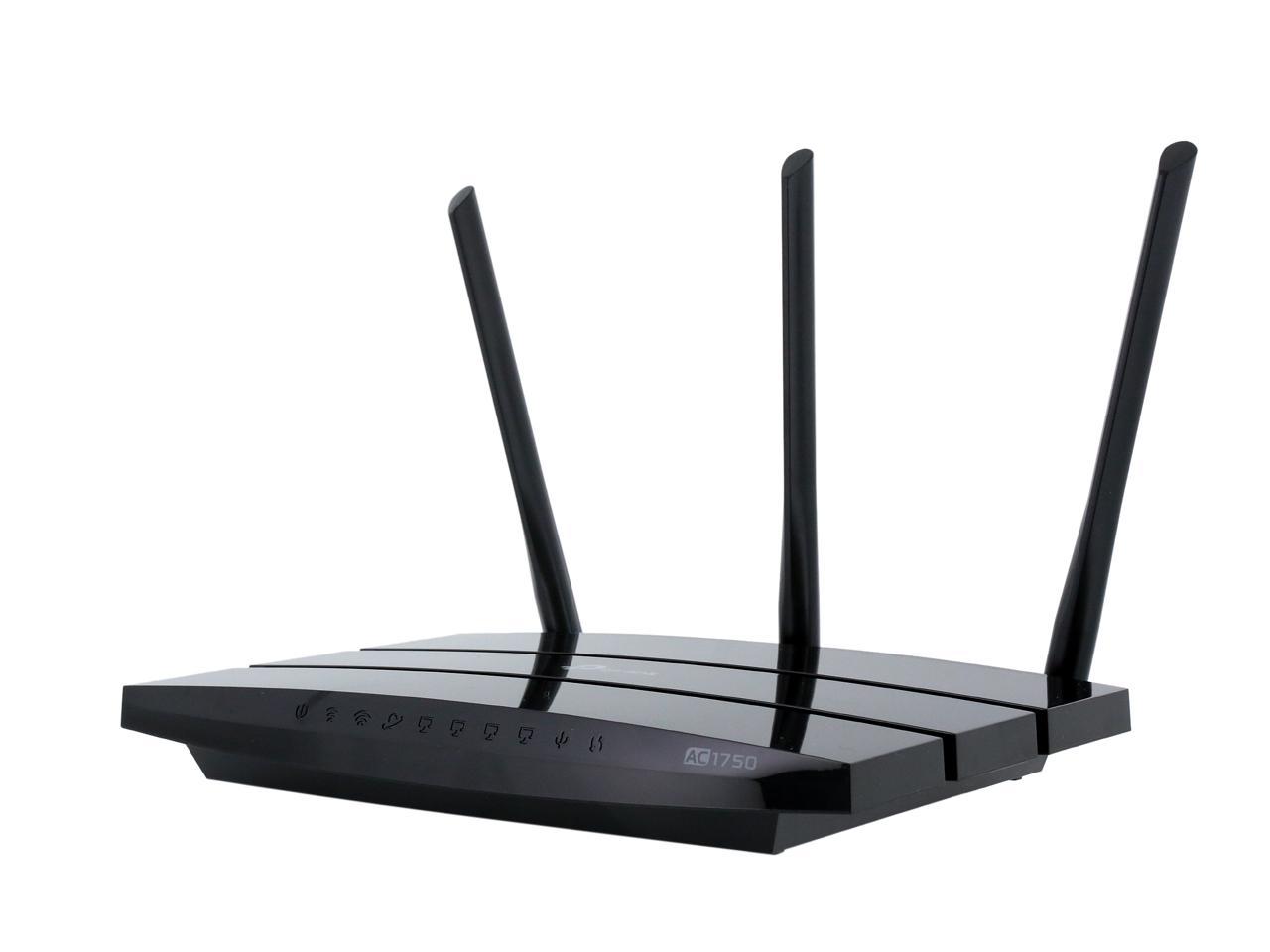

AC1750 Wireless Dual Band Gigabit Router
Supports 802.11ac standard - Faster than wireless N speeds
Simultaneous 2.4GHz 450 Mbps and 5GHz 1300 Mbps connections for 1.75Gbps of total available bandwidth*
USB Port - easily shares files & media with networked devices or remotely via FTP server
Guest Network Access - provides secure Wi-Fi access for guests sharing your home or office network
Easy setup and management with Tether App

The New WiFi Standard for an Advanced Online Experience
The Archer A7 is a fast 802.11ac router with incredible range. It's better than many routers that are twice as expensive. This advanced WiFi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard.

Concurrent Dual Band Connections for Lag-Free Work and Entertainment
The Archer A7 operates both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

External Antennas with Dual Band WiFi Greatly Expand Wireless Coverage*
Three external antennas with advanced connection technology allow you to maintain impressive speeds. With antennas serving both the 2.4GHz and 5GHz band, you can enjoy incredible wireless coverage and reliability in any part of your large home or office.

Versatile USB Connectivity
A USB 2.0 port makes the Archer A7 a truly resourceful gateway. Share a hard drive full of media through your home network, or via an ftp server whenever you’re away.

Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one Gigabit WAN port and four Gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections.
The Archer A7 is a powerful hub to support a robust and extremely fast wired network.

Parental Controls
Manage when and how connected devices can access the internet

IPv6 Supported
Supports IPv6, the next generation of Internet protocol, helping you to future-proof your network.

Quality of Service
Prioritizes devices or applications to give faster performance where you need it.

Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds - AC1750
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 450 Mbps (802.11n)

WiFi Range - 3 Bedroom Houses
3× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity - Medium
Dual-Band
Allocate devices to different bands for optimal performance

Working Modes - Router Mode
Access Point Mode

HARDWARE
Processor - Qualcomm CPU
Ethernet Ports - 1× Gigabit WAN Port
4× Gigabit LAN Ports

USB Support - 1× USB 2.0 Port

Supported Partition Formats:
NTFS, FAT32

Supported Functions:
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
WPS/Reset Button

Power - 12 V ⎓ 1.5 A

SECURITY
WiFi Encryption WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Network Security - SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server - OpenVPN
PPTP
SOFTWARE

Protocols - IPv4
IPv6

OneMesh™ - OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls - URL Filtering

Time Controls
WAN Types - Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service - QoS by Device
Cloud Service - OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV - IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management - Tether App
Webpage
Check Web Emulator>

PHYSICAL
Dimensions (W×D×H) - 9.6 × 6.4 × 1.3 in
(243 × 160.6 × 32.5 mm)

Package Contents - Wi-Fi Router Archer A7
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

OTHER
System Requirements - Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
