Share Your 4G LTE Network

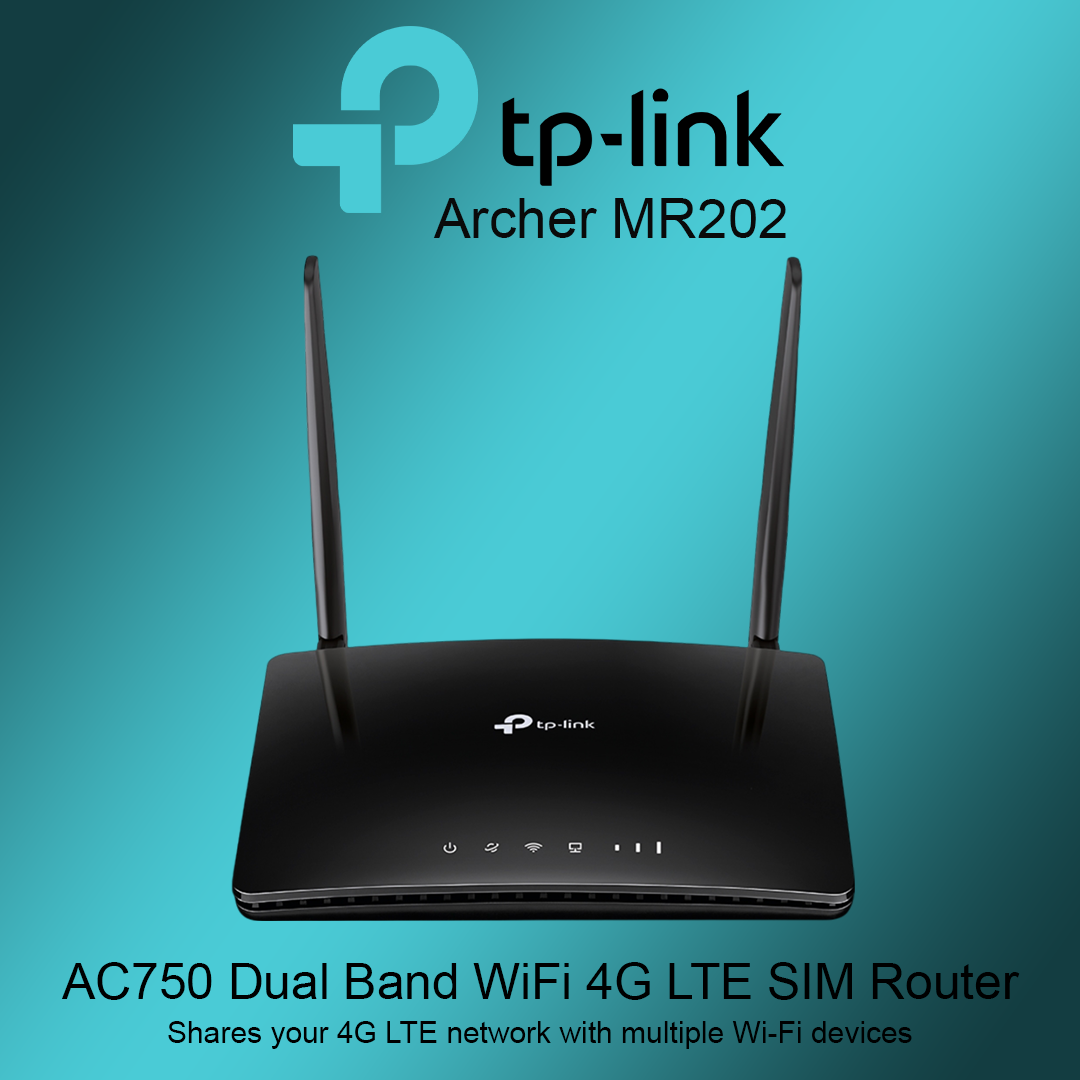

Take full advantage of your cutting-edge 4G LTE network with the Archer MR202, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR202. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Internet Access for up to 64 Devices Simultaneously
The Archer MR202 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.

Wi-Fi Where You Need It
The Archer MR202 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR202 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR202 has you covered.

Support TP-Link OneMesh
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
OneMesh Range Extender or Powerline Adapter sold separately.

Personalise Your Home Network
Archer MR202 provides a wealth of advanced tools for personalised management.

Available WAN Connection
The WAN/LAN port enables Archer MR202 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Management
Set up the Archer MR202 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.

HARDWARE FEATURES
Interface
3× 10/100Mbps LAN Ports
1× 10/100Mbps LAN/WAN Port
1× Nano SIM Card Slot
2× External SMA-F Antenna Interface

Button - WPS/Wi-Fi Button，Reset Button
External Power Supply - 12V/1A
Dimensions ( W x D x H ) - 6.85 × 4.9 × 1.32 in
Antenna - 2 Detachable External 4G LTE Antennas

WIRELESS FEATURES
Wireless Standards - IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency - 2.4 GHz and 5 GHz
Signal Rate - 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz

Reception Sensitivity
5 GHz:
11a 54M: -78 dBm
11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm
11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm
11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm

2.4 GHz:
11g 54M: -74 dBm
11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm
11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
Transmit Power < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Wireless Functions - Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

WAN Failover - Yes
Wireless Security - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type -
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
Quality of Service - Prioritizes network traffic by device or application
Operating Modes 3G/4G Router, Wireless Router

WAN Type - Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management - Access Control, Local Management, Remote Management, reboot schedule
DHCP - Server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS - DynDns, NO-IP, TP-Link DDNS

Access Control
Firewall Security - DoS, SPI Firewall, IP and MAC Address Binding
Protocols - Supports IPv4 and IPv6
Guest Network - 2.4GHz guest network x 1, 5GHz guest network x 1
VPN Server - PPTP VPN, OpenVPN

Package Contents - AC750 Wireless Dual Band 4G LTE Router Archer MR202
RJ45 Ethernet Cable
1.5m Power Adapter
Quick Installation Guide

System Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Nano SIM Card

Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
