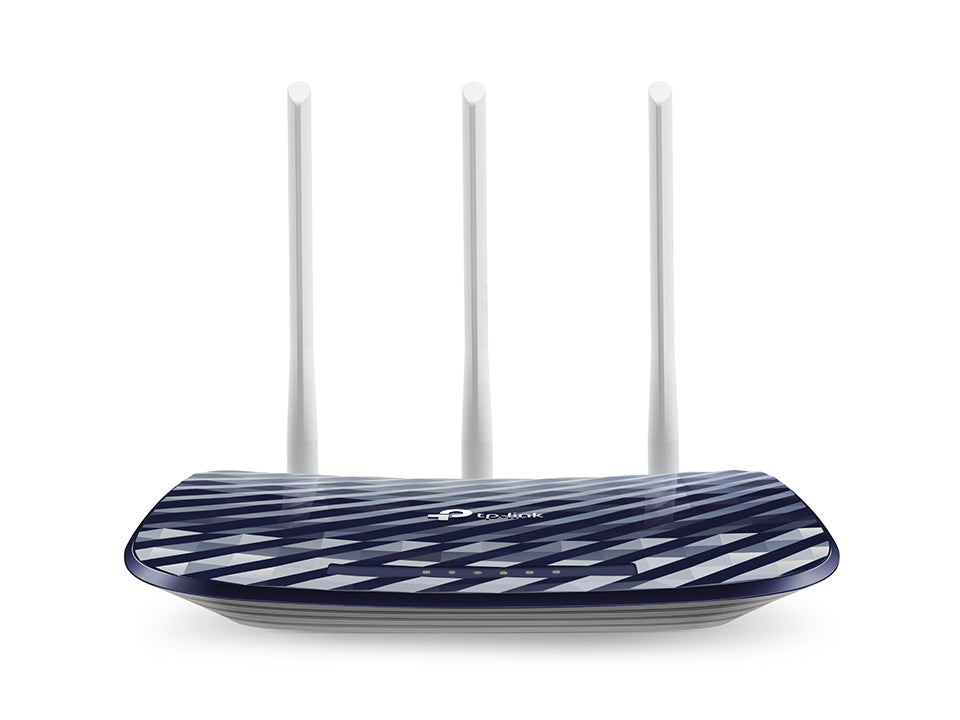

AC750 Wireless Dual Band Router
Upgrade your Wi-Fi to connect newer AC devices
Delivers reliable AC750 Wi-Fi over dual 2.4 GHz (300 Mbps) and 5 GHz (433 Mbps) bands*
Strong coverage and connectivity with three high-quality antennas
Easily set up and manage your Wi-Fi using the intuitive Tether App

Upgrade to Fast AC Wi-Fi
Upgrade your network to fast, reliable AC Wi-Fi with the Archer C20 for smoother streaming on laptops, smart TVs and mobile devices. The dual 5 GHz (433 Mbps) and 2.4 GHz (300 Mbps) bands allow for more devices to be connected to your home network at once.

Reliable AC750 Wi-Fi Speeds
Sit back and stream your favorite movie. The router's AC750 Wi-Fi speed and dual 2.4GHz and 5 GHz bands create reliable connections so you can watch what you love without any interruptions.

Great Wi-Fi Range
Get connected and stay connected. The Archer C20’s high-quality antennas deliver great Wi-Fi coverage and strong connectivity in your home.

Easy Setup and Use
Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

WIRELESS
Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds - AC750
5 GHz: 433 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range - 2 Bedroom Houses
3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity - Medium
Dual-Band
Allocate devices to different bands for optimal performance

Working Modes - Router Mode
Access Point Mode
Range Extender Mode

HARDWARE
Processor - Single-Core CPU

Ethernet Ports -
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports

Buttons -
WPS/Wi-Fi Button
Power On/Off Button
Reset Button

Power - 9 V ⎓ 0.6 A

SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security - SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

SOFTWARE
Protocols - IPv4 / IPv6

Parental Control -
URL Filtering
Time Controls

WAN Types -
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service -
QoS by Device

NAT Forwarding -
Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV - IGMP Proxy
IGMP Snooping

DHCP - Address Reservation
DHCP Client List

Server
DDNS - NO-IP
Comex
DynDNS

Management -
Tether App
Webpage

PHYSICAL
Dimensions (W×D×H) - 9.1 × 5.7 × 1.4 in
(230 × 144 × 35 mm)
