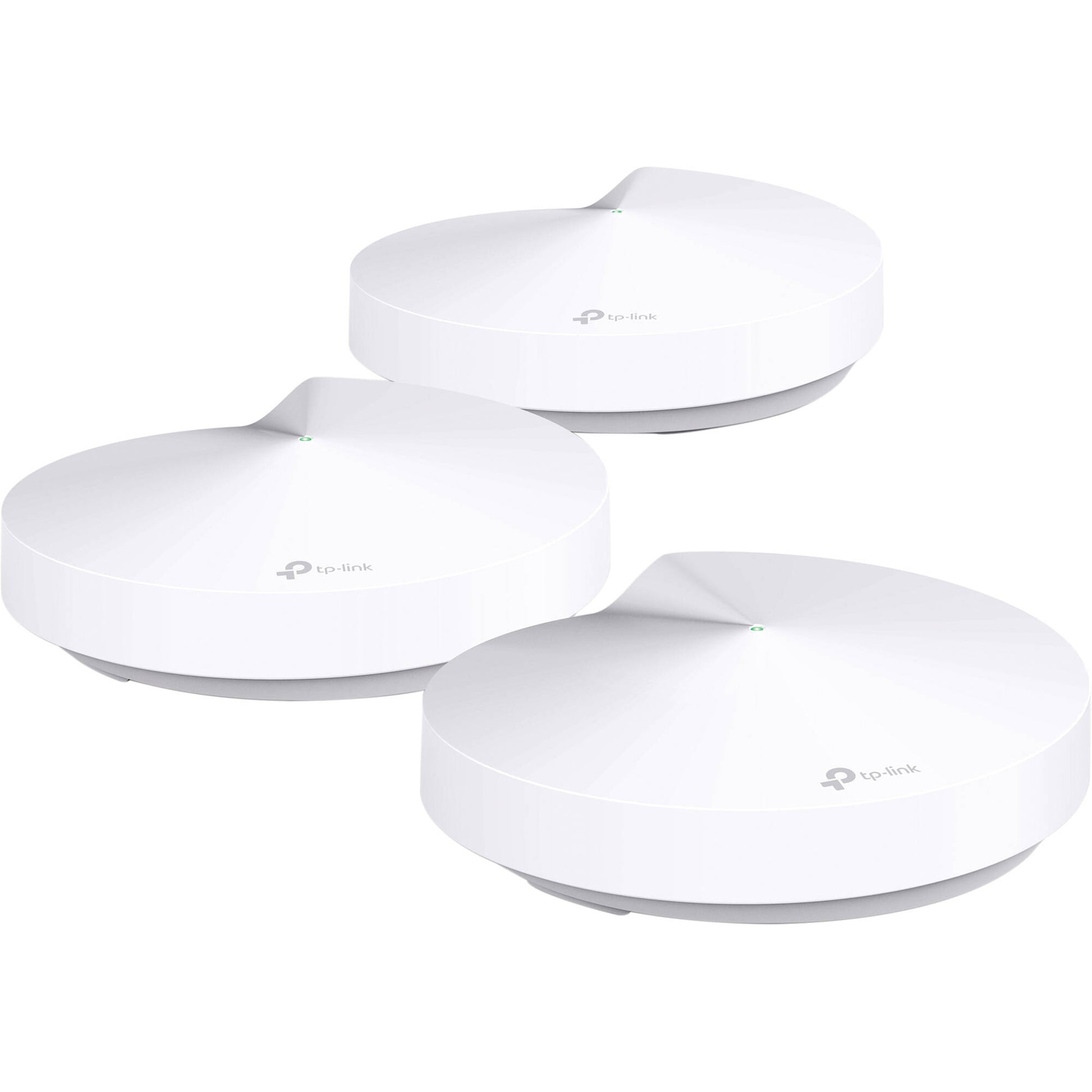

Whole Home Coverage: Deco M9 Plus (3-pack) uses a system of units to achieve seamless whole-home WiFi coverage up to 6,500 sq. ft. — eliminate weak signal areas once and for all!

Tri-Band Speeds: Reach speeds up to 2200 Mbps with the tri-band Deco M9 Plus.

TP-Link Mesh Technology: With advanced Deco Mesh Technology, units work together to form one unified whole-home network with the same network name. Deco automatically chooses the best connection for your device as you move throughout your home.

Dynamic Backhaul: A dynamic backhaul up to 1.5 Gbps ensures you have fast, stable connections throughout your home.

Built-in Smart Hub: Deco M9 Plus acts as a hub for your wireless and smart home devices. Adjust settings and create interactions from one app.

Connect More Devices: Deco can handle traffic from even the busiest of networks, providing lag-free WiFi connection for over 100 devices.

TP-Link HomeCareTM: A free lifetime subscription to TP-Link HomeCare protects your family with personalized security features, including Parental Controls, built-in Antivirus and Quality of Service (QoS).

Easy Setup: Setup is easier than ever — The Deco app will walk you through setup step by step.

WIRELESS
Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Bluetooth 4.2
ZigBee HA 1.2

WiFi Speeds - AC2200
5 GHz: 867 Mbps (802.11ac)
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)

WiFi Range - 4-6+ Bedroom Houses (3-pack)

TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

8× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity - Medium
Tri-Band
Distribute devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes - Router Mode
Access Point Mode
HARDWARE
Processor - Qualcomm 717 MHz Quad-core CPU
Ethernet Ports - 2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons - Reset Button
SECURITY
WiFi Encryption - WPA-Personal
WPA2-Personal
Network Security - SPI Firewall
Access Control

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network - 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols - IPv4
IPv6WIRELESS
Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Bluetooth 4.2
ZigBee HA 1.2
WiFi Speeds - AC2200
5 GHz: 867 Mbps (802.11ac)
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)
WiFi Range - 4-6+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

8× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity - Medium
Tri-Band
Distribute devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes -
Router Mode
Access Point Mode

HARDWARE
Processor - Qualcomm 717 MHz Quad-core CPU
Ethernet Ports - 2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons - Reset Button

SECURITY
WiFi Encryption -
WPA-Personal
WPA2-Personal

Network Security -
SPI Firewall
Access Control

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

Guest Network -
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE

Protocols - IPv4
IPv6

Parental Controls -
HomeCare™ Parental Controls
Custom Profiles
Content Filtering
URL FIltering
Time Limit
Time Schedule (Bed Time)
Log Insight
Usage Monitor
Monthly Reports

WAN Types -
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service -
HomeCare™ QoS
QoS by Device
QoS by Application

Cloud Service -
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding -
Port Forwarding
UPnP

IPTV -
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP -
Address Reservation
DHCP Client List
Server

DDNS -
TP-Link

Management -
Deco App

PHYSICAL
Dimensions (W×D×H) - 5.7 × 5.7 × 1.8 in
(144 × 144 × 46 mm)
