Expand Your Wi-Fi Network for Ultimate Performance*
450Mbps on 2.4GHz + 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds*
Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
Gigabit Ethernet port acts as a wireless adapter to connect a wired device to your network at gigabit speed
Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
Works with any Wi-Fi router or wireless access point**

EXPAND
WI-FI NETWORK
FOR ULTIMATE PERFORMANCE

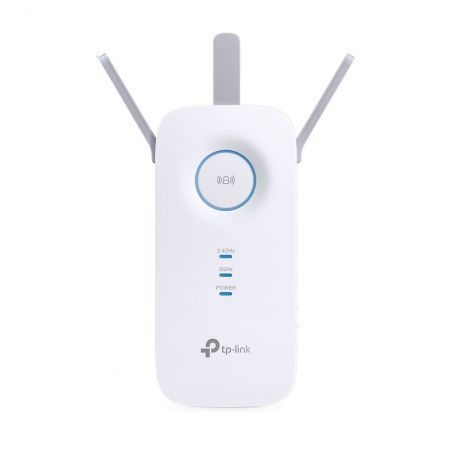

AC1750 Wi-Fi Range Extender

RE450

Boost Your Wi-Fi Coverage
Tired of Wi-Fi “dead zones”? The TP-Link AC1750 Wi-Fi Range Extender connects to your router wirelessly,
strengthening and expanding its signal into areas it can’t reach on its own. The device also reduces signal
interference to ensure reliable Wi-Fi coverage throughout your home or office.

Super-Fast Speed Next Generation AC Wi-Fi
TP-Link's RE450 comes with next generation 802.11AC Wi-Fi technology, it's 3 times faster than the standard 802.11n speeds. The RE450 delivers fast speeds of dual band Wi-Fi, providing reliable connections for bandwidth-intensive tasks like HD/4K streaming, lag free gaming, large file downloads.

Gigabit Wired Speed
A gigabit Ethernet port turns the extender into a wireless bridge, letting you connect a wired device like a Blu-ray player, gaming console, DVR, or smart TV to your Wi-Fi network.

Easy Installation & Quick Position
Easy Installation with RE Button
The extender RE450 works with any standard wireless router. Instantly connect the RE450 to a router by pressing the extender’s RE button followed by the router’s WPS button (if available).

Once connected with an existing router, you can take RE450 anywhere within the wireless range of the existing router, no more further configurations.

High Performance External Antennas
Three external dual band antennas (3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz) boost your wireless coverage and reliability, helping your devices stay connected anywhere your network reaches.

High Speed Mode
High Speed mode maximizes overall performance by combining the bandwidth of both the 5GHz and 2.4GHz channels to create a lightning-fast connection with one band sending data and the other receiving it.

Standards and Protocols
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface
1 * 10/100/1000M Ethernet Port (RJ45)

Button
RE (Range Extender) Button, Reset Button, LED Button, Power Button

Power Consumption
9W（max power consumption）

Dimensions ( W x D x H )
6.4x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)

Antenna
3* external

WIRELESS FEATURES
Frequency
2.4GHz & 5GHz(11ac)

Signal Rate
5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mpbs

Reception Sensitivity
5GHz：
11a 6Mbps:-93dBm@10% PER
11a 54Mbps: -76dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -64dBm@10% PER
11ac HT80 mcs9: -61dBm@10% PER
2.4GHz
11g 54M: -77dBm@10% PER
11n HT20 mcs7: -73dBm@10% PER
11n HT40 mcs7: -70dBm@10% PER

Wireless Modes
Range Extender

Wireless Functions
Wireless Statistic

Concurrent Mode boost both
2.4G/5G WiFi band

High Speed Mode for great speed for HD Gaming and video
Access Control
LED Control
Domain Login Function

Wireless Security
64/128-bit WEP
WPA-PSK / WPA2-PSK

Transmission Power
<20dBm(2.4GHz)
<23dBm(5GHz)
