Supports 802.11ac standard - Faster than wireless N speeds*
Simultaneous 2.4GHz 450 Mbps and 5GHz 1300 Mbps connections for 1.75Gbps of total available bandwidth*
USB Port - easily shares files & media with networked devices or remotely via FTP server
Guest Network Access - provides secure Wi-Fi access for guests sharing your home or office network
Easy setup and management with Tether App

The New WiFi Standard for an Advanced Online Experience

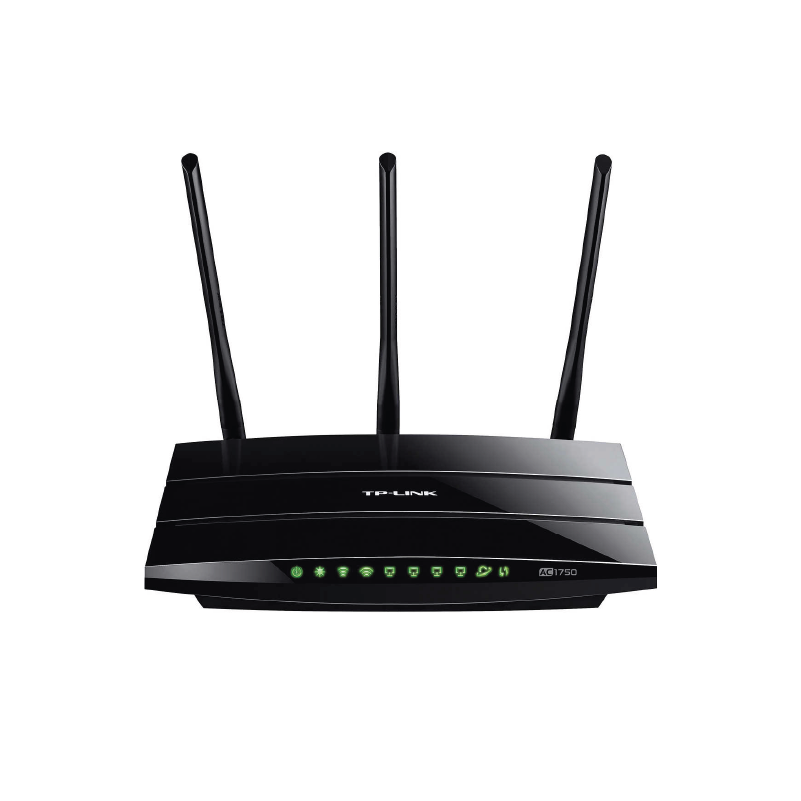

The Archer C7 is a fast 802.11ac router with incredible range. It's better than many routers that are twice as expensive. This advanced WiFi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard.

Concurrent Dual Band Connections for Lag-Free Work and Entertainment
The Archer C7 operates both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

External Antennas with Dual Band WiFi Greatly Expand Wireless Coverage
Three external antennas with advanced connection technology allow you to maintain impressive speeds. With antennas serving both the 2.4GHz and 5GHz band, you can enjoy incredible wireless coverage and reliability in any part of your large home or office.

Versatile USB Connectivity
A USB 2.0 port makes the Archer C7 a truly resourceful gateway. Share a hard drive full of media through your home network, or via an ftp server whenever you’re away.

Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one Gigabit WAN port and four Gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections.
The Archer C7 is a powerful hub to support a robust and extremely fast wired network.

TP-Link OneMesh™ :
Flexibly Create a Whole-Home WiFi
OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect a OneMeshTM range extender to a OneMesh™ router. No more searching around for a stable connection.

WiFi Dead-Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house

Smart Roaming
Uninterrupted streaming when moving around your home

One WiFi Name
No more switching WiFi network names

Unified Management
Manage the whole-home WiFi by managing the central node via Tether app/Web UI

Enjoy a Mesh Network with Your Existing Router
Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set?
TP-Link OneMesh™ resolves your dilemma.

Parental Controls
Manage when and how connected devices can access the internet

IPv6 Supported
Supports IPv6, the next generation of Internet protocol, helping you to future-proof your network.

Quality of Service
Prioritizes devices or applications to give faster performance where you need it.

Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds - AC1750
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 450 Mbps (802.11n)

WiFi Range - 3 Bedroom Houses
3× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity - Medium

Dual-Band
Allocate devices to different bands for optimal performance

Working Modes - Router Mode
Access Point Mode

HARDWARE
Processor - Qualcomm CPU
Ethernet Ports -
1× Gigabit WAN Port
4× Gigabit LAN Ports

USB Support - 1× USB 2.0 Port

Supported Partition Formats:
NTFS, FAT32

Supported Functions:
FTP Server
Media Server
Samba Server

Buttons - Wi-Fi On/Off Button
Power On/Off Button
WPS/Reset Button

Power - 12 V ⎓ 1.5 A

SECURITY
WiFi Encryption WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Network Security - SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network - 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server - OpenVPN
PPTP
SOFTWARE

Protocols - IPv4
IPv6

OneMesh™ - OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Parental Controls - URL Filtering
Time Controls

WAN Types - Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service - QoS by Device

Cloud Service - OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding - Port Forwarding
Port Triggering
DMZ
UPnP

IPTV - IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP - Address Reservation
DHCP Client List
Server

DDNS - TP-Link
NO-IP
DynDNS

Management - Tether App
Webpage

PHYSICAL
Dimensions (W×D×H) - 9.6 × 6.4 × 1.3 in
(243 × 160.6 × 32.5 mm)
