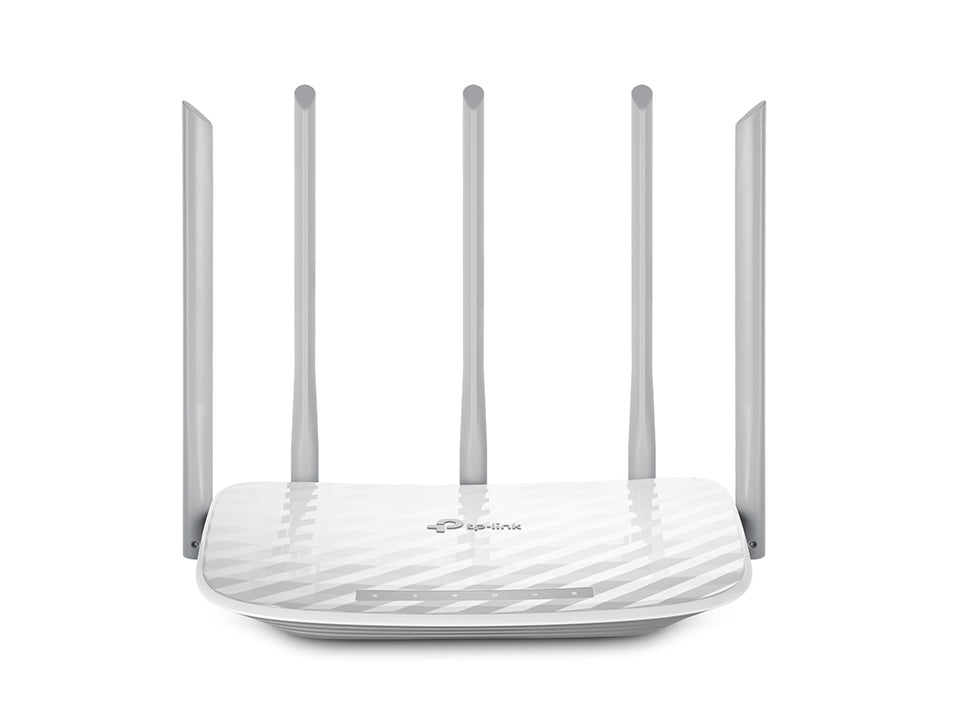

AC1350 Wireless Dual Band Router
Get faster Wi-Fi at both the 2.4GHz band (450Mbps) and the 5GHz band (867Mbps)
The advanced AC Wi-Fi unlocks the performance of all your wireless devices
Three 2.4GHz antennas and two 5GHz antennas create superior Wi-Fi coverage
Advanced software functions like Parental Control and Guest Network
Tether app provides easy router management in your palm

The New Wi-Fi Standard for an Advanced Online Experience
The Archer C60 comes with the latest wireless standard – 802.11ac. This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard. The result: faster, stronger and more capable Wi-Fi to unleash all your wireless devices.

Fast, Concurrent Dual Band Wi-Fi
The Archer C60 provides you with simultaneous dual band Wi-Fi connections.
2.4GHz band: 3×3 MIMO creates fast and stable Wi-Fi at speeds of 450Mbps, making it perfect for daily applications like sending emails, browsing the web or listening to music.
5GHz band: Provides up to 867Mbps Wi-Fi for latency-sensitive entertainment so you can stream HD video, play online games and hold video chats all at the same time, without delay.

Arranged Coverage, Enhanced Stability
Archer C60’s innovative design includes five antennas, three at 2.4GHz and two at 5GHz. These have been arranged alternately to optimize the dual band 802.11ac Wi-Fi, creating a transmission with maximized coverage, minimized interference.

Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use URL blocking to easily set up a black or white list and limit the level of web access.

Guest Network Access
Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.

Impeccable Design
To match its advanced features, the Archer C60 introduces an elegant
texture and color to fit the stylish décor of your home.

Easy Setup and Management
Set up the Archer C60 in minutes thanks to its intuitive web interface. Configuration is also in the palm of your hands with TP-LINK’s powerful app, Tether, the easiest way to access and manage your router through your smartphone.

WIRELESS
Standards - Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds - AC1350
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 450 Mbps (802.11n)

WiFi Range - 3 Bedroom Houses
5× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity - Medium
Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Working Modes -
Router Mode
Access Point Mode

HARDWARE
Processor - Qualcomm CPU
Ethernet Ports -
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports

Buttons -
Wi-Fi On/Off Button
Power On/Off Button
WPS/Reset Button

Power - 12 V ⎓ 1 A

SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Network Security -
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network -
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server -
OpenVPN
PPTP
SOFTWARE

Protocols -
IPv4
IPv6

Parental Controls -
URL Filtering
Time Controls

WAN Types -
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service - QoS by Device
Cloud Service - OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding -
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV - IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP -
Address Reservation
DHCP Client List
Server

DDNS -
TP-Link
NO-IP
DynDNS

Management -
Tether App
Webpage

PHYSICAL
Dimensions (W×D×H) - 9.1 × 5.7 × 1.5 in
(230 × 144 × 37 mm)
