8× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
Green Ethernet technology saves power
IEEE 802.3X flow control provides reliable data transfer
Plastic casing, desktop or wall-mounting design
Plug and play, no configuration needed
Fanless design ensures quiet operation

Gigabit Ports For Faster Speeds

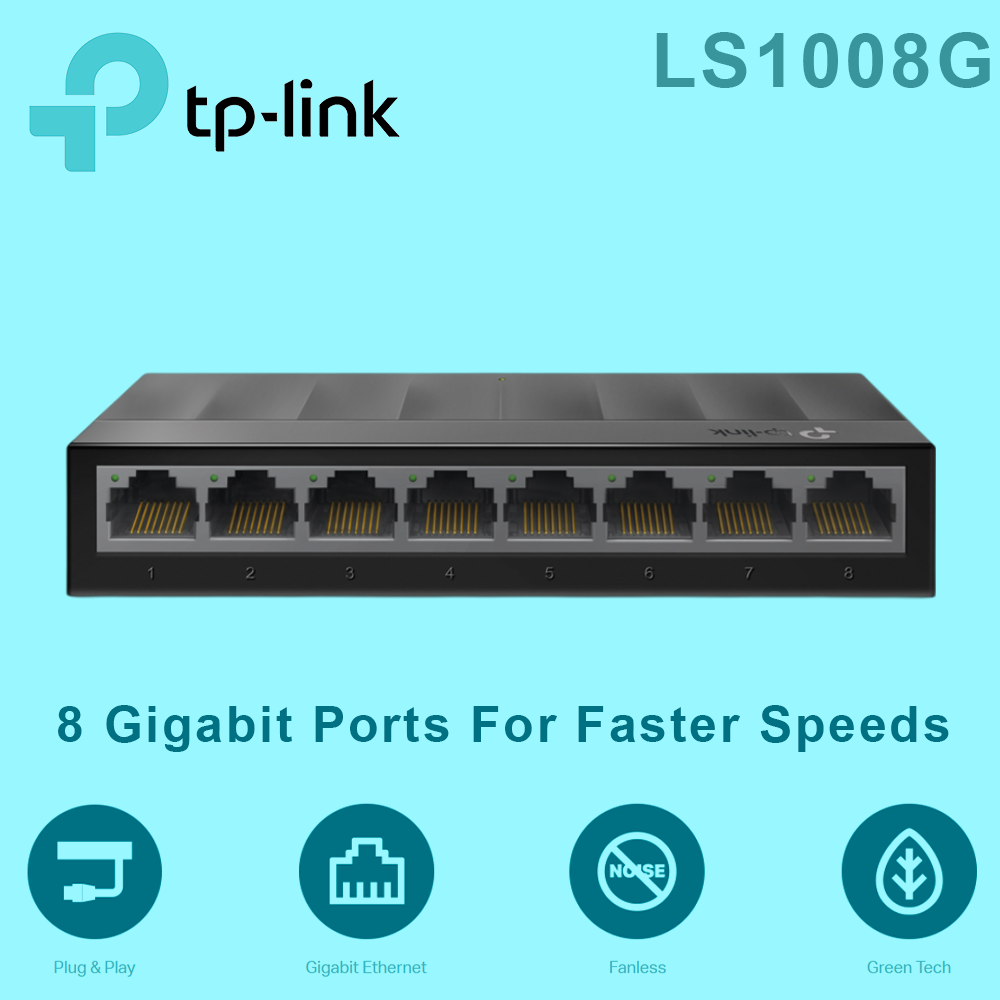

Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need
The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface
8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)

Dimensions ( W x D x H )
5.0 × 2.6 × 0.9 in.

Max Power Consumption
2.7W

Max Heat Dissipation
13.3 BTU/h

PERFORMANCE
Switching Capacity
16 Gbps

Packet Forwarding Rate
11.9 Mpps

MAC Address Table
4K

Packet Buffer Memory
1.5 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
Back Pressure
Transfer Method Store and Forward
