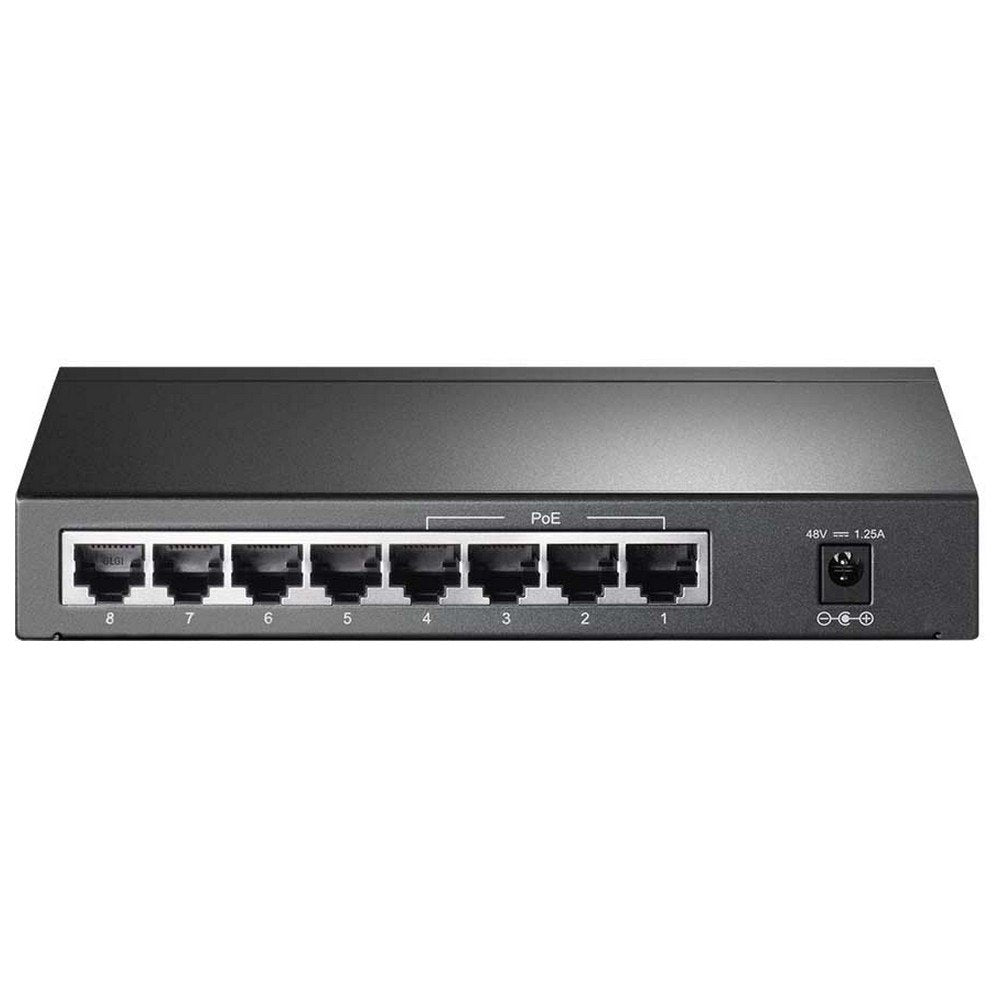

8× 10/100/1000 Mbps RJ45 ports.
4× PoE+ ports transfer data and power on the cables
Works with IEEE 802.3af/at compliant PDs
Plug and Play, no configuration and installation required
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE power up to 30 W for each PoE port
Supports PoE power up to 64 W for all PoE ports

HARDWARE FEATURES
Interface
8× 10/100/1000 Mbps RJ45 Ports

AUTO Negotiation
AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
Yes

External Power Supply
External power adapter
(Output: 54VDC / 1.3A)

Packet Forwarding Rate
11.904 Mpps

PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: ports 1–4
• Power budget for all PoE ports: 64 W

Mac Address Table
4K

Jumbo Frame
16 KB

Switching Capacity
16 Gbps

Dimensions ( W x D x H )
6.7 × 3.9 × 1.1 in
(171×98×27 mm)

Max Power Consumption
• 5.4 W (with no PD connected)
• 75 W (with 64W PD connected)

Max Heat Dissipation
• 18.4 BTU/h (with no PD connected)
• 225.8 BTU/h (with 64 W PD connected)

SOFTWARE FEATURES
Transmission Method
Store-And-Forward

Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
