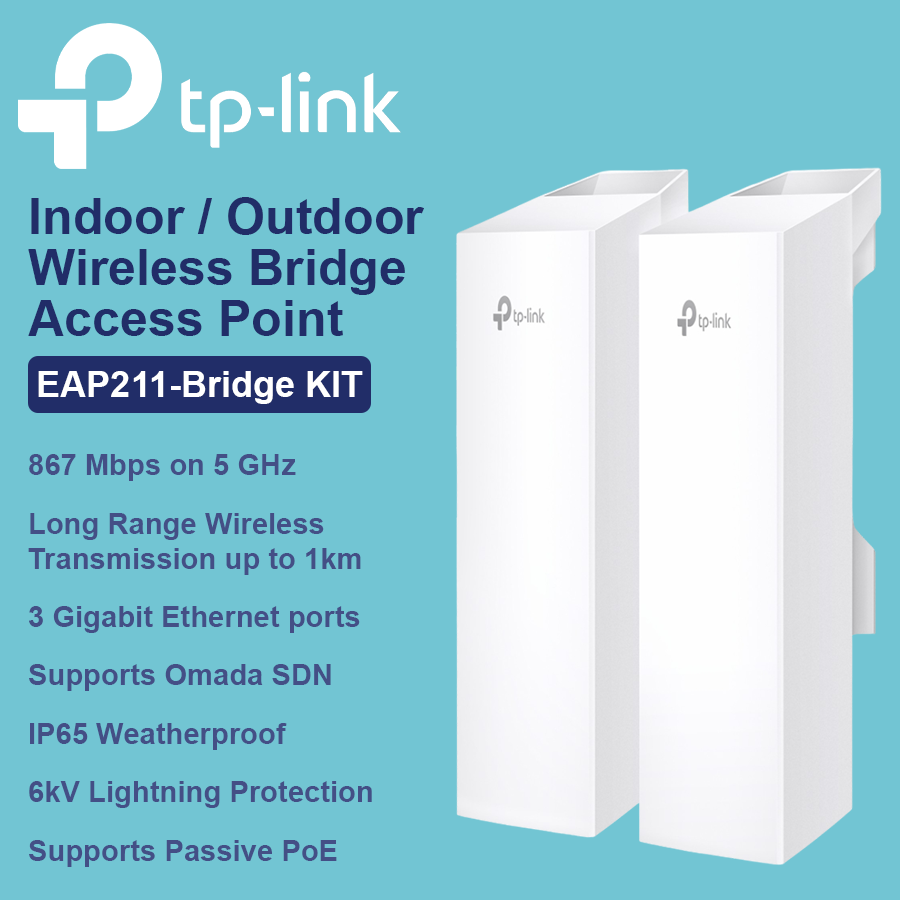

802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.

Ideal for long-range wireless transmission up to 1 km.

Auto-pairing and agile LEDs for efficient deployment.

3× Gigabit Ethernet ports for more high-speed IP camera connections.

Supports Omada SDN for remote and centralized management.

IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.

Supports Passive PoE for flexible deployment (adapter included).

Up to 0.62mi (1km) Distance
Ideal for setting up networks in remote locations.

Up to 70° Beamwidth for Wider Deployment
One central AP covers more distributed APs and cameras, eliminating the need for multiple central APs.

Three Ports for More Devices
Connect more cameras and devices without an extra switch.

IP65 Weatherproof for Outdoor Use
Durable performance with IP65 rating and operating range of -40°F to 158°F (-40°C to 70°C).

Standalone or Omada SDN Mode
Flexible dual modes for batch deployment and remote management via the Omada app or Web UI.

Extend Wi-Fi to Additional Buildings
Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.

Extend Wi-Fi to Additional Offices
Provide 550Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.

Elevator PtP Wi-Fi for Surveillance
Record real-time video to an NVR with virtually no hardwiring required

HARDWARE FEATURES
Interface
3x Gigabit Ethernet Ports

Button
Reset

Power Supply
12V DC / 24V Passive PoE (Passive PoE adapter included.)

Max. Power Consumption
11.5W

Dimensions ( W x D x H )
8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)

Antenna
Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 7.0 dBi
Horizontal:70°, Vertical: 70°

Weatherproof Enclosure
IP65

Mounting
Pole Mounting (Accessories included)

WIRELESS FEATURES
Coverage
1000m(3280ft)5

Wireless Standards
IEEE 802.11 a/b/g/n/ac

Frequency
5 GHz

Signal Rate
5 GHz: Up to 867 Mbps

Wireless Functions
• Mesh
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Load Balance
• Beamforming
• Airtime Fairness
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP

Wireless Security
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise

Transmission Power
• CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);

• FCC:
<22dBm (5 GHz band1/4)

Management Features
Omada App
Yes

Restore & Backup
Yes

Firmware update via Web
Yes

NTP
Yes

Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access
Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c, v3

SSH
Yes

Web-based Management
Yes

OTHERS
Certification
CE, FCC, RoHS

Package Content
• EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit

Environment
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
