5× 10/100/1000 Mbps RJ45 ports

With four PoE+ ports, transfers data and power on one single cable

Works with IEEE 802.3af/at compliant PDs

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 65 W for all PoE ports

Requires no configuration and installation

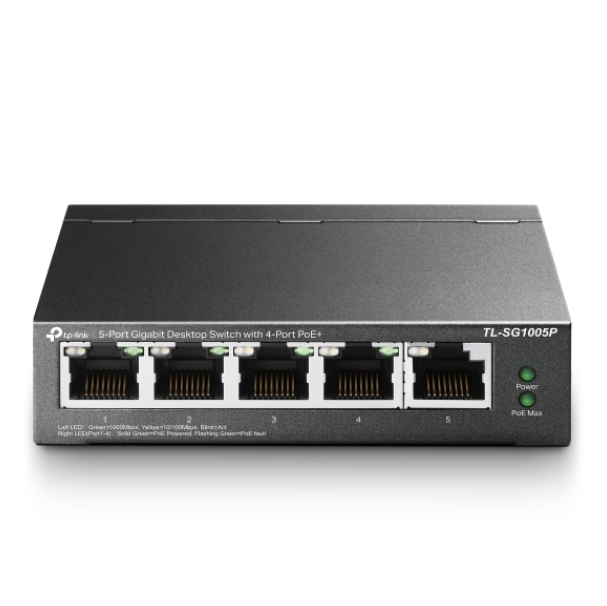

Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

QoS For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.

HARDWARE FEATURES

Interface
• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 54 VDC / 1.3 A)
Packet Forwarding Rate: 7.44 Mpps

PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 65 W

Mac Address Table: 2K
Jumbo Frame: 16 KB
Switching Capacity: 10 Gbps
Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in.
(99 × 98 × 25 mm)

Max. Power Consumption
• 4.3 W (without power device connected)
• 74.2 W (with 65W power devices connected)

Max. Heat Dissipation
• 14.6 BTU/h (no PD connected)
• 253.2 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES
Advanced Features
• Compatible with IEEE 802.3af/at compliant power devices
• MAC address auto-learning and auto-aging
• IEEE 802.3x flow control
• 802.1p/DSCP QoS
• IGMP snooping

Transmission Method: Store-And-Forward
