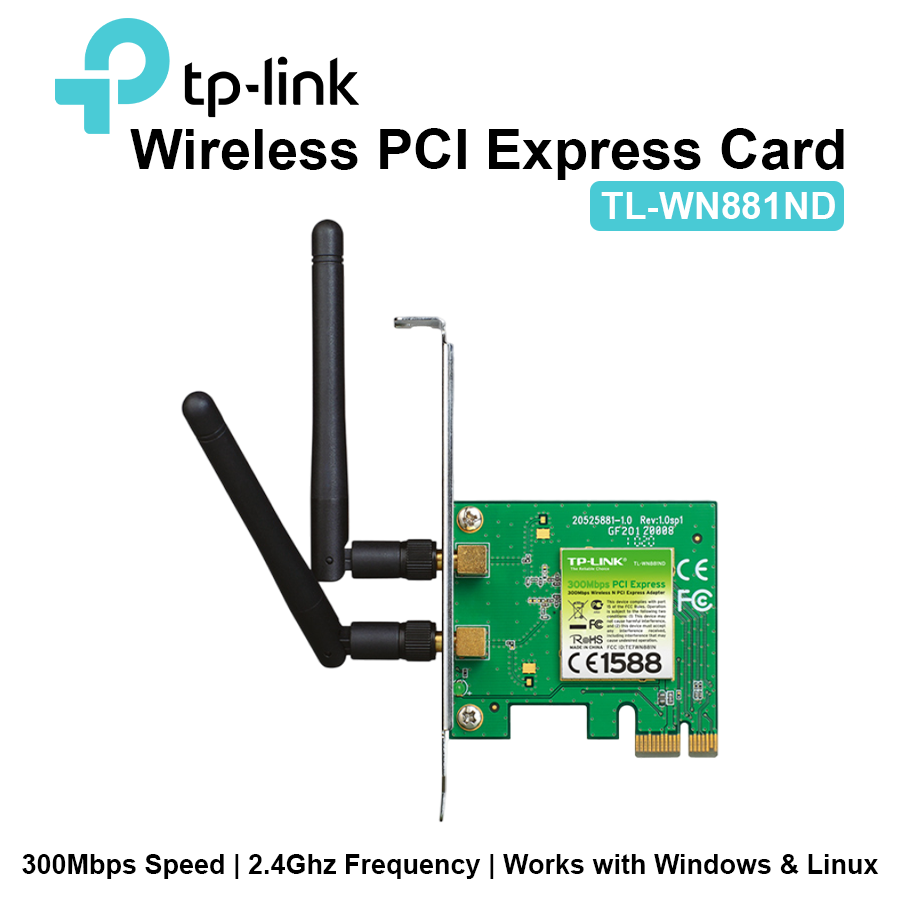

300Mbps Wireless N PCI Express Adapter

Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls

MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability

Easily setup a highly secured wireless link with WPS (Wi-Fi Protected Setup)

What This Product Does
Wireless N PCI Express 2.0(x1) Adapter TL-WN881ND allows you to connect a desktop computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300Mbps, which is beneficial for the online gaming or even HD video streaming.

Wireless N - Speed & Range
MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not

CCA Technology - Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.

WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.

WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.

HARDWARE FEATURES
Interface: PCI Express(x1)
Dimensions ( W x D x H ): 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)
Antenna: Detachable Omni Directional (RP-SMA)
Antenna Gain: 2dBi

WIRELESS FEATURES
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.400-2.4835GHz
Signal Rate:
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity:
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -73dBm@10% PER
54M: -73dBm@10% PER
11M: -89dBm@8% PER
6M: -87dBm@10% PER
1M: -90dBm@8% PER

Wireless Modes: Ad-Hoc / Infrastructure mode
Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Transmission Power: <20dBm(EIRP)

System Requirements: Windows 10/8.1/8/7，Linux
