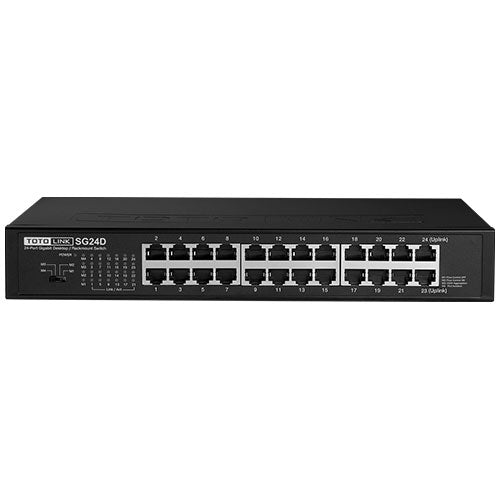

Toto Link 24 Port Gigabit Network Switch - SG24D
Toto Link 24 Port Gigabit Network Switch - SG24D
Couldn't load pickup availability
Delivery Options
Delivery Options
Free Delivery
- Male
- Hulhumale
- Boat Delivery
Air Cargo (Additional charges will apply)
- Redbox Delivery
- F&C Speed Delivery
- Maldivian Air Cargo Delivery
24 10/100/1000Mbps auto-negotiated RJ45 ports.
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
48Gbps Switching Capacity.
Auto-MDI/MDIX eliminates the need for crossover cables.
Store and forward Switching scheme.
MTBF≥5 years.
Supports Jumbo Frame (10KByte).
Supports IGMP Snooping.
Desktop and Rack-mountable design.
Standards
-IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface
- 24*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply
- AC 100V~240V, 50/60Hz
LED Indicators
- 1* Power, Link/Act (1~24), M1~M4
Dimensions(L x W x H)
- 11.6 x 7.1 x 1.7in. (294 x 180 x 44mm)
MAC Address Learning
- Auto-learning, auto update
MAC Address Table
- 8K
Backup Bandwidth
- 48Gbps
Network Media
- 10BASE-T: UTP Cat 3, 4, 5 cable
- 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
Four Working Modes
- M1: Flow Control OFF
- M2: Flow Control ON
- M3: 23/24 Ports Aggregation based on MAC sources
- M4: Port Isolation
Frame Filtering
- 10Mbps: 14,880pps
- 100Mbps: 148,800pps
- 1000Mbps: 1,488,000pps
Transfer Method
- Store-and-Forward
