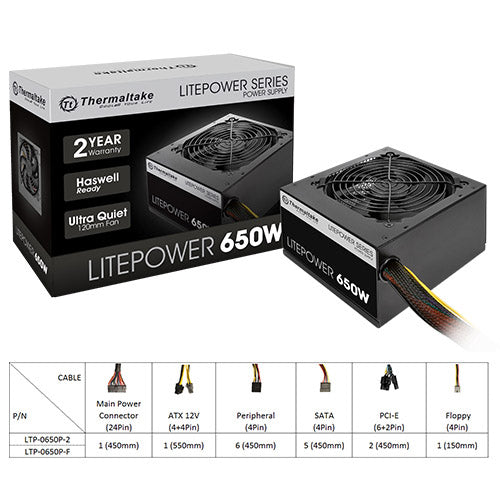

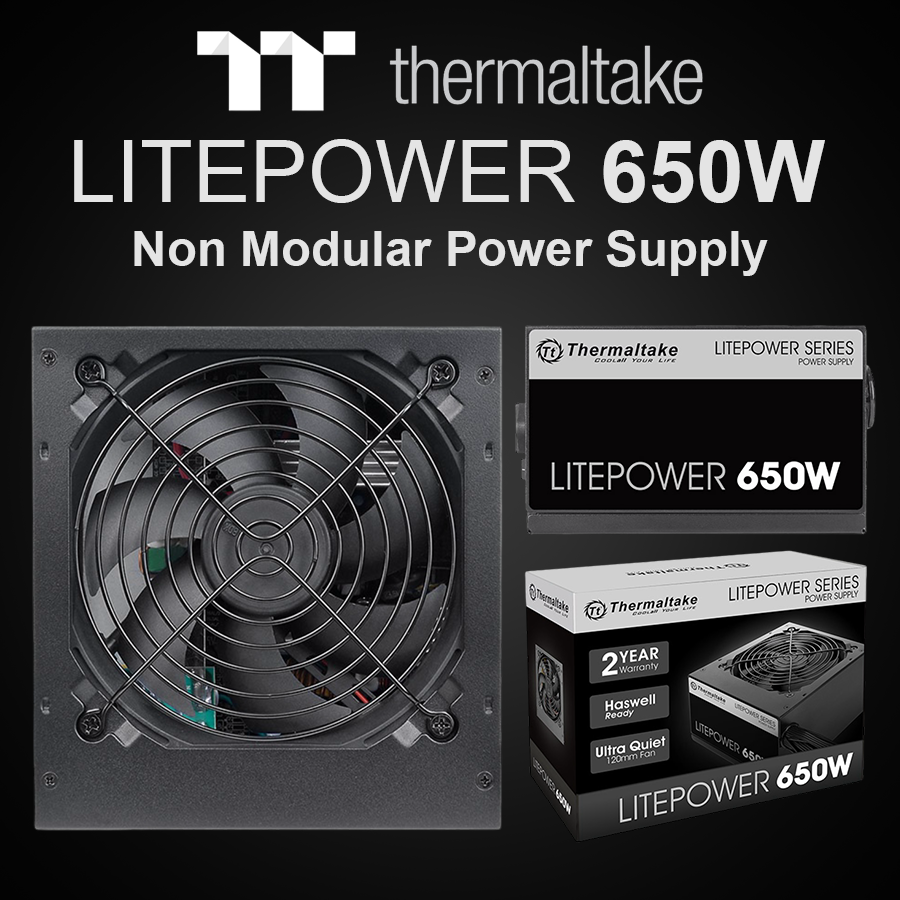

Thermaltake Litepower 650W
The Thermaltake Litepower 550W, 650W and 750W are specifically targeting energy efficient PC systems with lower overall power consumption in application fields, office and entertainment computers. The Litepower Series comply to the latest ATX 12V V2.3 Standard for utmost reliability and compatibility supporting state-of-the-art Intel and AMD processor and graphics technologies. With Over Voltage, Over Power and Short-Circuit protection the Litepower series offers industry grade protection. The Thermaltake Litepower series now offers you all these characteristics.

Ultra Quiet Fan
Large 120mm cooling fan delivers cool performance and silent operation.

Elongated Cable
The longer cables enable enthusiasts and power users to properly route the cables in optimal location to prevent airflow blockage. Significantly improving computer system’s overall thermal efficiency, as well as the aesthetic.

Utmost Reliability and Compatibility
The Litepower Series comply to the latest ATX 12V V2.3 Standard for utmost reliability and compatibility supporting state-of-the-art Intel and AMD processor and graphics technologies.

Massive and Dedicated +12V Output
Litepower 650W is equipped with a powerful +12V rail, please see the output specification on the left hand side:

P/N
LT-650P

WATTS
650W

RGB FAN
No

MODEL
LT-650AL2NL

TYPE
ATX 12V 2.3

MAX. OUTPUT CAPACITY
650W

COLOR
Black

DIMENSION ( W / H / D )
150mm x 85.1mm x 141mm

PFC (POWER FACTOR CORRECTION)
W/Active PFC

POWER GOOD SIGNAL
“Power Good” signal rise time is within 1ms.

HOLD UP TIME
The power supply with 80% of Max. load at 230 Vac, 50 Hz should supply regulated
DC outputs for at least 16 ms after the loss of the AC input voltage at zero cross.

INPUT CURRENT
6A

INPUT FREQUENCY RANGE
50Hz

INPUT VOLTAGE
230Vac

OPERATING TEMPERATURE
10℃~+40℃

OPERATING HUMIDITY
To 85% relative humidity

STORAGE TEMPERATURE
-20℃~+70℃

STORAGE HUMIDITY
To 95% relative humidity

COOLING SYSTEM
120mm Fan: 1600-1900 RPM

EFFICIENCY
70% typical at nominal line, maximum load.

MTBF
100,000 hrs minimum

SAFETY APPROVAL
TUV, CE, Gost

PCI-E 6+2PIN
6+2pin PCI-E Connector x 2
