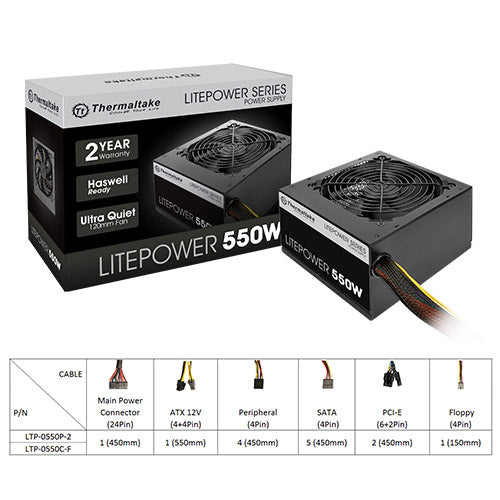

Thermaltake Litepower 550W
Incorporating various high-quality components, the new Litepower Series – rated from 350W to 650W – saves energy up to 80% efficiency. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. In addition, the single +12V rail design enables non-stop usage with stable and reliable performance.

Ultra Quiet Fan
Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Cables with High Flexibility
Users are able to properly route the cables in optimal location to prevent airflow blockage. Extra-long EPS/ATX 12V 4+4pin CPU cable (550mm) guarantees sufficient lengths of cables to the build, especially full-tower chassis. Sleeved 24pin cable makes cable management easier, reducing clutter and increasing airflow inside the chassis.

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage

Massive and Dedicated +12V Output
Litepower Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
AC INPUT
Input Voltage: 110V/220V
Input Current: 10A max
Frequency: 50Hz-60Hz

DC OUTPUT    +3.3V    +5V    +12V    -12V    +5Vsb
Max Output Current    21A    16A     38A   0.5A     2.5A
Max Output Power    105W   456W    6W   12.5W
Total Power    550W

P/N
LTP-0550C-F

WATTS
550W

RGB FAN
No

FORM FACTOR
ATX

MODEL
LTP-550NL2NK

TYPE
ATX 12V 2.3

MAX. OUTPUT CAPACITY
550W

COLOR
Black

DIMENSION ( W / H / D )
150mm x 86mm x 140mm

PFC (POWER FACTOR CORRECTION)
W/O PFC

POWER GOOD SIGNAL
100-500 msec.

HOLD UP TIME
>16msec

INPUT CURRENT
10A

INPUT FREQUENCY RANGE
50Hz - 60Hz

INPUT VOLTAGE
110V / 220V

OPERATING TEMPERATURE
+5℃ to +35℃

OPERATING HUMIDITY
20% to 85%,non-condensing

STORAGE TEMPERATURE
-40℃ to +55℃

STORAGE HUMIDITY
10% to 95%, non-condensing

COOLING SYSTEM
120mm Fan: 1800±10% RPM

MTBF
100,000 hrs minimum

SAFETY APPROVAL
CE, TUV SUD, CB, FCC, UL, S-Mark, EAC, BSMI and RCM certified.

PCI-E 6+2PIN
6+2pin PCI-E Connector x 2
