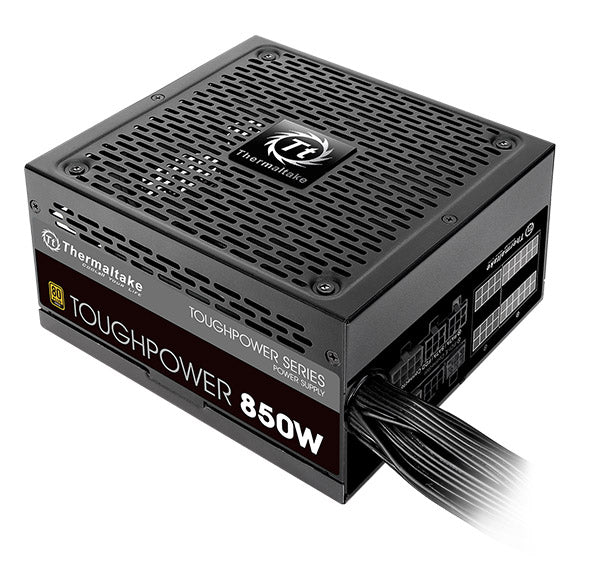

Toughpower 850W Gold
The Thermaltake Toughpower Series is a premium line of PSUs certified to the 80 PLUS Gold standard. Incorporating components of the highest quality, it delivers stable performance and unbeatable efficiency. TPD 850W Gold, which uses a semi-modular design. An ultra-quiet fan delivers silent cooling and a single strong 12V rail flexibly routes the maximum available power to the CPU, enabling peak performance of the computer system.

Ultra Quiet Fan
The Toughpower 850W adopts a 135mm cooling fan with intelligent RPM control. This guarantees superior cooling performance and silent operation.

80 PLUS Gold Certified and Haswell Ready
The Toughpower 850W saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. In addition, the Toughpower Series is designed to meet the demands of Intel’s new Haswell processors.

Flat Modular Cables
Low-profile flat modular cables used in the design enhance airflow as well as improve the thermal performance of the chassis. Flat cables are inherently more flexible, making cable routing easier.

100% High Quality Japanese 105°C/221°F Capacitors
100% high quality 105 °C (221 ° F) Japanese made capacitors which greatly improve the durability and offer the highest stability and reliability.

Massive and Dedicated +12V Output
The Toughpower 850W is equipped with an authentic and powerful single +12V rail to ensure a stable and reliable supply to other PC components.

P/N
PS-TPD-0850MPCG

WATTS
850W

RGB FAN
No

FORM FACTOR
ATX

MODEL
TP-850AH5CEG-A

TYPE
Intel ATX 12V V2.3 & EPS 12V standards

MAX. OUTPUT CAPACITY
850W

PEAK OUTPUT CAPACITY
900W

COLOR
Black

PFC (POWER FACTOR CORRECTION)
Active PFC

POWER GOOD SIGNAL
100-500 msec

HOLD UP TIME
16msec (minimum) @ 75% of full load at 115V / 230V input.

INPUT CURRENT
11A - 5.5A

INPUT FREQUENCY RANGE
60 Hz - 50 Hz

INPUT VOLTAGE
100 Vac- 240 Vac

OPERATING TEMPERATURE
0℃ to +40℃

OPERATING HUMIDITY
10% to 90%,non-condensing

STORAGE TEMPERATURE
-20 ℃ to +60 ℃

STORAGE HUMIDITY
5% to 95%, non-condensing

COOLING SYSTEM
135mm double ball-bearing fan, 1500±10%R.P.M.

EFFICIENCY
87-92% efficiency @ 20-100% load

MTBF
120,000 hrs minimum

SAFETY APPROVAL
UL/ CB+Baurt mark/ CE/ FCC/ CCC/ GOST certification

PCI-E 6+2PIN
PCI-E 6+2pin x 6

PROTECTION
OVP, OPP,SCP
