Ultra Quiet 140mm Hydralic Bearing Fan

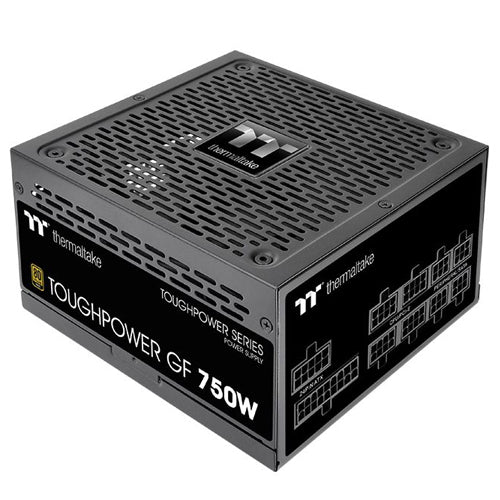

The Toughpower GF 750W Gold adopts a 140mm ultra quiet Hydralic Bearing Fan, ensuring the overall good cooling performance and silent operation.

Fully Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.

High quality Japanese Main Capacitor
High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Toughpower GF 750W to have highest stability and reliability.

DC to DC for Stable Output Voltage
With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.

High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Lake C6/C7 States Ready
Toughpower GF 750W saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

P/N - PS-TPD-0750FNFAGK-2
WATTS - 750W
MODEL - TTP-750AH3FCG-B
MAX. OUTPUT CAPACITY - 750W
PEAK OUTPUT CAPACITY - 900W
COLOR - Black
DIMENSION ( W / H / D ) - 150mm(W) x 86mm(H) x 160mm(D)
PFC (POWER FACTOR CORRECTION) - Active PFC
POWER GOOD SIGNAL - 100-500 msec
HOLD UP TIME - > 12msec at 80% of full load at 230Vac input
INPUT CURRENT - 10A max.
INPUT FREQUENCY RANGE - 47Hz – 63Hz
INPUT VOLTAGE - 100V – 240V~
OPERATING TEMPERATURE - 0°C to + 40°C
OPERATING HUMIDITY - 20% to 90%,non-condensing
STORAGE TEMPERATURE - -20°C to + 70°C
STORAGE HUMIDITY - 5% to 95%, non-condensing
COOLING SYSTEM - 14cm hydraulic bearing fan
EFFICIENCY - Meet 80 PLUS®Gold at 115Vac input.
MTBF - 100,000 hrs minimum
SAFETY APPROVAL - CE/cTUVus/TÜV/FCC/EAC
PCI-E 6+2PIN - 4
