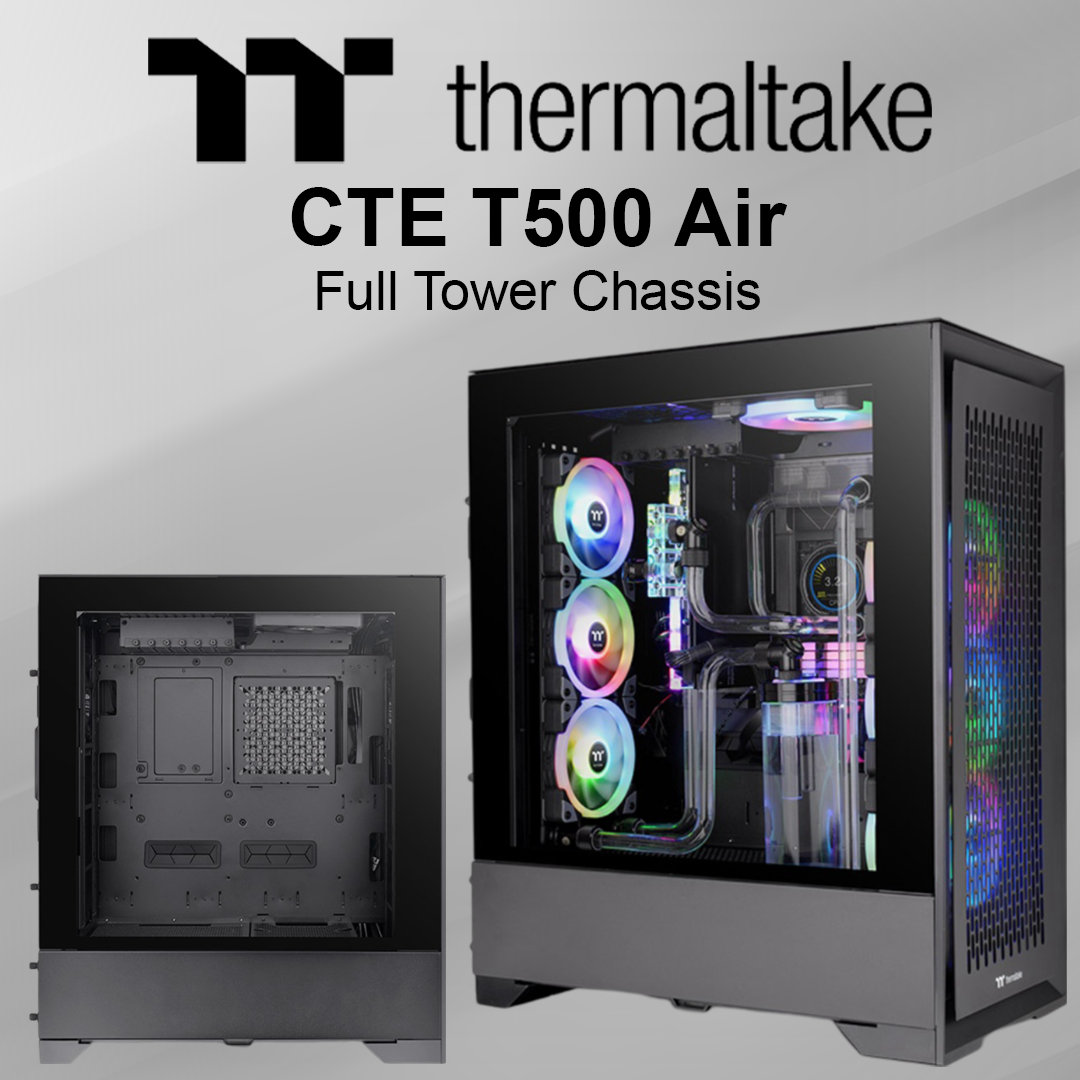

The CTE T500 Air is a specially designed E-ATX full tower chassis from the new CTE form factor series that emphasizes more airflow and is designed to provide high levels of thermal performance to critical components. It comes with three pre-installed 140mm CT140 fans and can support up to a 420mm AIO radiator at the front, and up to a 360mm AIO radiator at the rear.

Create and Display Your Dream Build
Designed to meet the needs of both all-in-one and custom liquid cooling solutions, the CTE T500 Air's versatile interior features one 4mm tempered glass panel on the left side, allowing users to view and admire all components in their full RGB glory.

Dual 360mm Radiators Support
Our CTE T500 Air offers excellent cooling support for custom liquid cooling enthusiasts, allowing users to install up to two 360mm radiators at the front and rear simultaneously. For AIO compatibility, users can install up to one 420mm AIO radiator at the front and up to two 360mm AIO radiators at the front and the rear.

Massive Airflow & Incredible Performance
Thermal images taken during thermal testing. Thanks to its CTE form factor design and three pre-installed CT140 Sync PC Cooling Fans, we were able to ensure that the CTE T500 Air has massive airflow, guaranteeing amazing cooling performance that keeps the internal temperature low and stable while using the most high-end components.

Perfect Dust Protection
There are fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.

P/N: CA-1X8-00F1WN-00
Series: CTE
CASE TYPE: Full Tower
Dimension (H x W x D): 615 x 275 x 516 mm
NET WEIGHT: 15.3 kg / 33.73 lbs.
PANEL: 4mm Tempered Glass x 1
MATERIAL: SPCC / ABS

COOLING SYSTEM
Front(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Rear(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1
Drive Bays: 4 x 3.5” or 6 x 2.5”
EXPANSION SLOTS: 7
MOTHERBOARDS: Mini ITX, Micro ATX, ATX, E-ATX
I/O Port: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU: Standard PS2 PSU (optional)

FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm

Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right:
1 x 120mm, 1 x 140mm

Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm

Bottom:
1 x 120mm, 1 x 140mm

PSU Cover: 1 x 120mm, 1 x 140mm

RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Top:
1 x 120mm(AIO only)

Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

CLEARANCE
CPU cooler max height: 195mm
VGA max length: 385mm
PSU max length: 180mm
