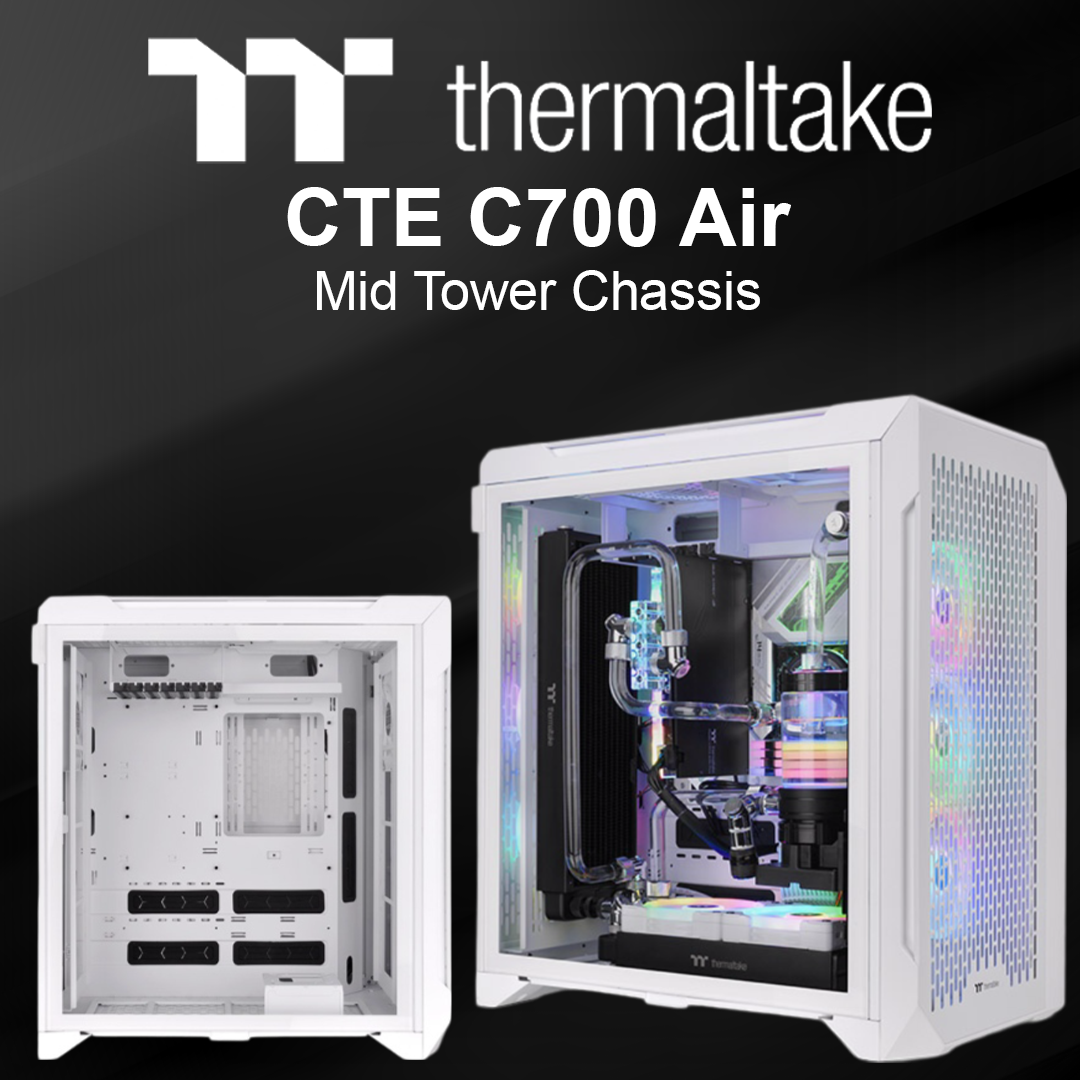

The CTE C700 Air, a specially designed E-ATX mid tower chassis from the new CTE form factor series, was engineered to provide optimal thermal efficiency and maximum airflow to ensure that critical components of your build are provided with adequate cooling. To achieve this the CTE C700 Air can support up to a 420mm AIO radiator not only at the front but also at the rear of the chassis. Three 140mm CT140 fans are pre-installed.

Move Critical Heat Sources (CPU And Graphic Cards) Closer Towards Cool Air
Since the CPU location of the CTE C700 has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively.

Active Cooling for More Efficient Intake Airflow
This overall approach has allowed CTE C700 to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.

Create and Display Your Dream Build
Framed to fit your view, the CTE C700 Air Snow comes with one 4mm tempered glass panels located on the left of the chassis. Show off everything from full custom liquid cooling loops to fancy AIOs and fans. To make removing the tempered glass easy there is a small tab located on the upper left corner and to hold things back in place the tempered glass panel snaps back in utilizing peg hooks, which are located on the rest of the panels of chassis as well.

Massive Airflow & Incredible Performance
Thermal images taken during thermal testing. Thanks to its CTE form factor design and three pre-installed CT140 PC Cooling Fans, we were able to ensure that the CTE C700 Air Snow has massive airflow, guaranteeing amazing cooling performance that keeps the internal temperature low and stable while using the most high-end components.

Perfect Dust Protection
There are fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.

Series: CTE
CASE TYPE: Mid Tower
Dimension (H x W x D): 566.5 x 327.6 x 505.5 mm
NET WEIGHT: 15.8 kg / 34.83 lbs.
PANEL: 4mm Tempered Glass x 1
MATERIAL: SPCC / ABS

COOLING SYSTEM
Front(intake): 140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1
Top(exhaust): 140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1
Rear(intake): 140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1
Drive Bays: 7 x 3.5” or 6 x 2.5”
EXPANSION SLOTS: 7
MOTHERBOARDS: Mini ITX, Micro ATX, ATX, E-ATX
I/O Port: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU: Standard PS2 PSU (optional)

FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm

Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right:
1 x 120mm, 1 x 140mm

Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Bottom:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

CLEARANCE
CPU cooler max height: 190mm
VGA max length: 327mm (With radiator) / 410mm (Without radiator)
PSU max length: 220mm
