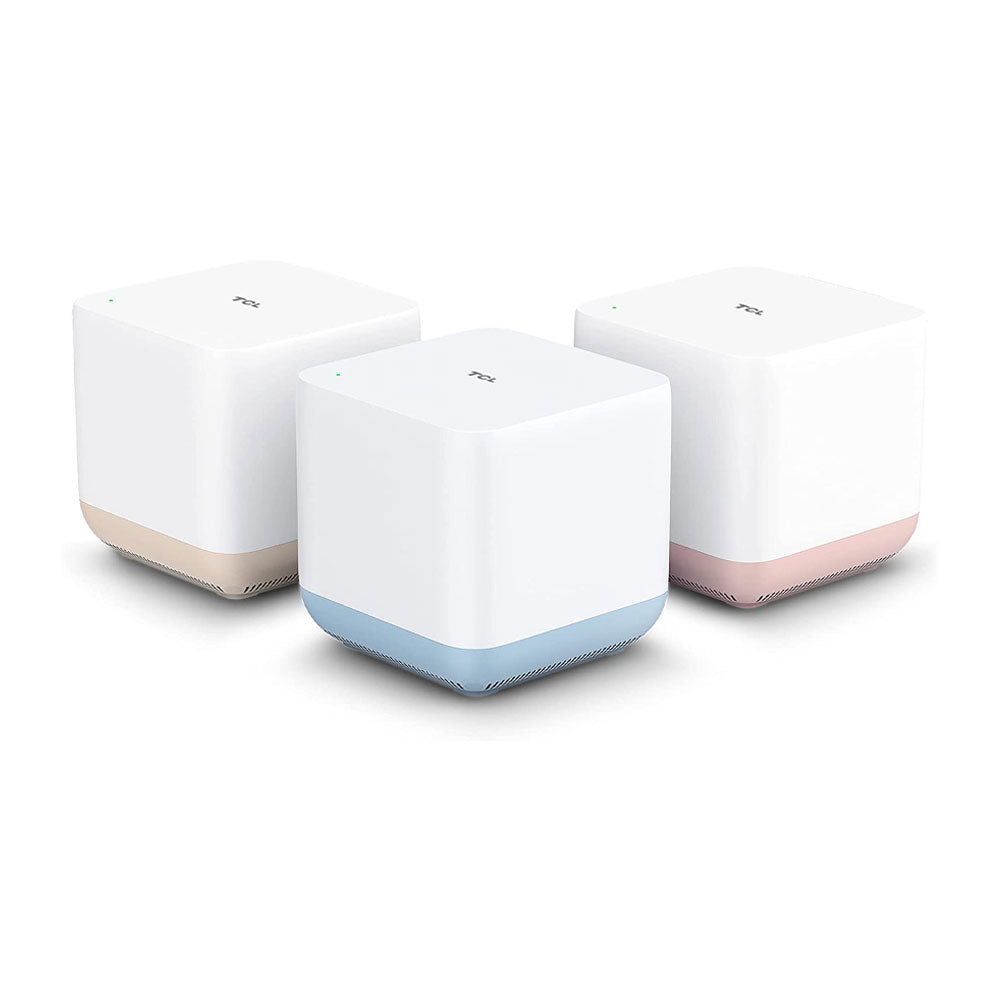

STABLE WHOLE-HOME WI-FI SYSTEM
The LINKHUB Mesh Wi-Fi system provides coverage up to 4,300 sq. ft. with a set of three routers. Arrange them throughout your home and eliminate dead zones when you move from one room to another. Experience the freedom to stream 4K/8K videos on multiple devices at the same time with boosted coverage and ultra-fast Wi-Fi.

MULTIPLE USER CONNECTIVITY
MU-MIMO & Beamforming technology allows each connected device its own dedicated full-speed Wi-Fi connection, ensuring multiple devices can access the network simultaneously without slowing it down. The 3-pack LINKHUB Mesh Wi-Fi can support up to 100 users simultaneously, making it an ideal solution for large homes and small businesses alike.

EFFORTLESS SETUP
Start browsing, streaming and working quickly with LINKHUB Mesh Wi-Fi System’s pre-pairing factory settings. Choose any unit to connect to Ethernet and all settings will automatically sync with the rest of the pack. Then all you need to do is decide where to place them.

EASY MANAGEMENT
Manage your network with ease using the mesh system’s dedicated TCL WIFI app. This convenient app lets you modify network access, change password, create a guest network, or schedule Wi-Fi breaks for young children.

Flash
16MByte Nor Flash

SDRAM
128MByte DDR3(Main chip built-in)

Interface
1*10/100/1000Mbps WAN/LAN Port

1*10/100/1000Mbps LAN Port

1* 3.5mm DC in( 12V 1A)

Power Supply
12 VDC / 1A

Button
Reset/Wps Hole

LED Indicator
1* System/Power/Mesh Blue

Antenna
2* 3dBi internal antennas（2.4G*2 + 5G*2）

Dimensions (L x W x H)
103x103x100mm

Wireless Standards
IEEE 802.11ac/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz

Mesh Standards
IEEE802.11s

Roaming standards
IEEE802.11v/r

Ethernet Standard
IEEE802.3

IEEE8.3u

IEEE802.3ab

Data Rate
2.4GHz: Up to 300Mbps

5GHz: Up to 867Mbps

Wireless Security
64/128-bit WEP, WPA and WPA2

Frequency band
2.4GZ or 5GHz, MiMo 2x2

Wifi user amount
3in1 up to 100 wifi users.

Certification
CE

FCC

Wi-Fi Alliance

RoHS

WEEE
