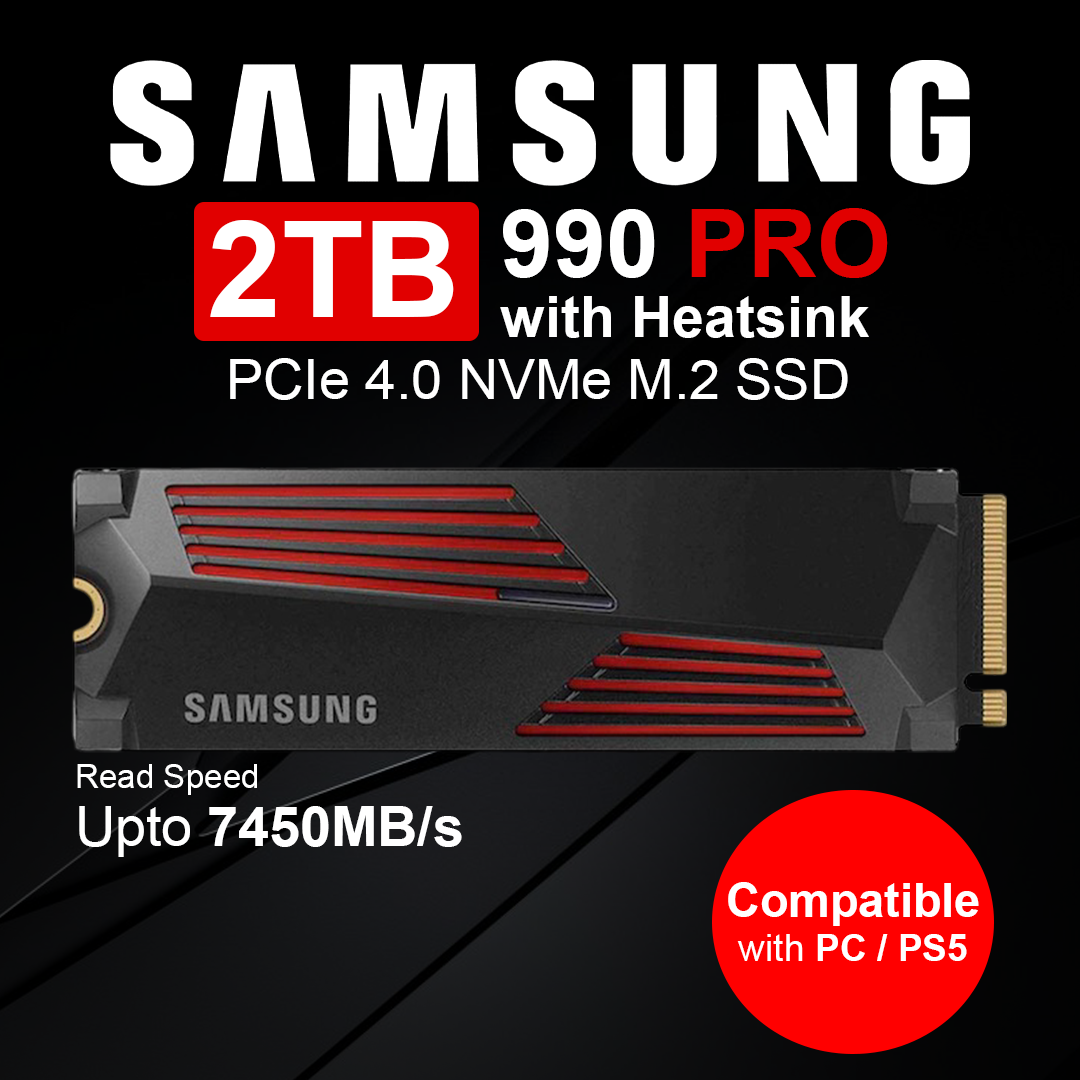

Ultimate SSD
Reach max performance with PCIe 4.0.Experience longer-lasting, opponent-blasting speed.The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious performance that always keeps you at the top of your game.

Maximized PCIe 4.0 speed Huge speed boost
Get random read/write speeds that are 40%/55% faster than 980 PRO. Experience up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near the max performance of PCIe4.0. Fly high in gaming, video editing, 3D modeling, data analysis and more.

Breakthrough power efficiency More power-efficient performance
Use less power and get more performance. Enjoy up to 50% improved performance per watt over 980 PRO, plus optimal power efficiency with max PCIe 4.0 performance.

Smart thermal control
Samsung's own nickel-coated high-end controller delivers effective thermal control and prevents sudden performance drops from overheating. Play confidently with stable thermal power and minimal fan noise even during heavy-graphic gaming. With its slim size, 990 PRO with Heatsink is a perfect fit for PlayStation5, desktops and laptops that meet the PCI-SIGD8 standard.

The champion maker
A more than 55% improvement in random performance enables faster loads for an ultimate gaming experience on PS5 and DirectStorage PC games. With RGB LED lights, Heatsink’s futuristic design adds style to function.

Samsung Magician Software Unlock the full potential of 990 PRO.
Get the most out of your SSD with Samsung Magician's advanced yet intuitive optimization tools. Monitor drive health, protect valuable data, receive important updates and set up LED color combinations for your 990 PRO with Heatsink. It's your personal SSD toolkit.

General Feature
Application
Client PCs, Game Consoles

Capacity
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Interface
PCIe Gen 4.0 x4, NVMe 2.0

Dimension (WxHxD)
80 x 24.3 x 8.2 mm (with heatsink)

Weight
Max 28.0g Weight

Form Factor
M.2 (2280)

Storage Memory
Samsung V-NAND 3-bit MLC

Controller
Samsung in-house Controller

Cache Memory
Samsung 1GB Low Power DDR4 SDRAM

Performance
Sequential Read
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

Sequential write
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

Random Read (4KB ,QD32)
Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB ,QD32)
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

Random Read (4KB ,QD1)
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB ,QD1)
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Type
Product Type
990 PRO with Heatsink

Environmental Specs
Operating Temperature
0 - 70 ℃ Operating Temperature

Shock
1,500 G & 0.5 ms (Half sine)

Software
Management SW
Magician Software for SSD management

Special Feature
TRIM Support

Supported
S.M.A.R.T Support

Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm

Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support
Not supported

Device Sleep Mode Support
Yes

Environment
Average Power Consumption (system level)
*Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)
Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage
3.3 V ± 5 % Allowable voltage

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
