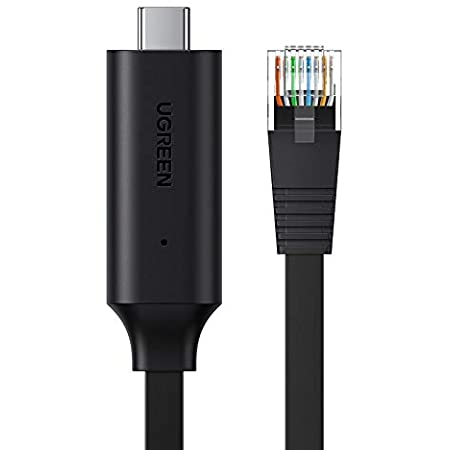

Ugreen USB Typ C to RJ45 Console Flat Cable 1,5m

USB Typ C CONSOLE CABLE adapter connects from the USB Typ C port of a computer to the RJ45 console port of a networking switch or router; RJ45 to USB Typ C console cable connects new computers and laptops without a serial port

SNAGLESS MALE TO MALE Cisco console cable provides a convenient solution for configuring equipment with a console port; A snagless RJ45 connector protects the tab from being torn off and stuck in the console port

WINDOWS & MAC & LINUX COMPATIBLE to connect equipment with a standard Cisco USB Typ C to RJ45 pin-out; USB Typ C to console cable reverses all 8 pins in the cable to communicate from a computer USB Typ C port to a console port

USB Typ C ROLLOVER CABLE directly connects to a router, switch, server or wireless access point for configuration from the console port; Directly connect this switch console cable instead of carrying a cable plus an adapter; Program equipment without a network or internet connection

Console Configuration Cable

The Cable Matters USB Typ C to RJ45 Console Cable connects from a computer USB Typ C port to the RJ45 console port of a networking switch or router. This rollover cable connects a laptop with Windows, Linux or macOS to a Cisco-standard serial console port for configuration and management. The integrated FTDI chipset handles the USB Typ C signaling and protocol functions including an RS-232 level shifter. FTDI drivers are available for download.

Specifications

Host Connector: USB Typ C 2.0 Male
Console Port Connector: RJ45 8P/8C Male
Chipset: FTDI USB Typ C to serial UART
OS Compatibility

Windows 7 and up for 32/64 bit computers
macOS 9 and up
Linux Ubuntu 11.10 and up
Important Notes

Administrator permission is required
Windows 10 requires a CLI terminal utility such as PuTTy for configuration
Console Cable Functions

Directly connect to a console port on a network switch
FTDI drivers are integrated into the latest versions of Windows 10 and macOS
Configure a switch or router with direct terminal access from your computer
Important Notes

NOT a crossover cable that reverses TX and RX
Will NOT operate over an Ethernet port for internet access
Rollover Cable

Rollover cable reverses all 8 pins to connect from a computer to a network switch
Cisco-standard wiring pin-out (check the requirements of your equipment)
Data transfer rate up to 250 Kbps
Bus-powered cable
