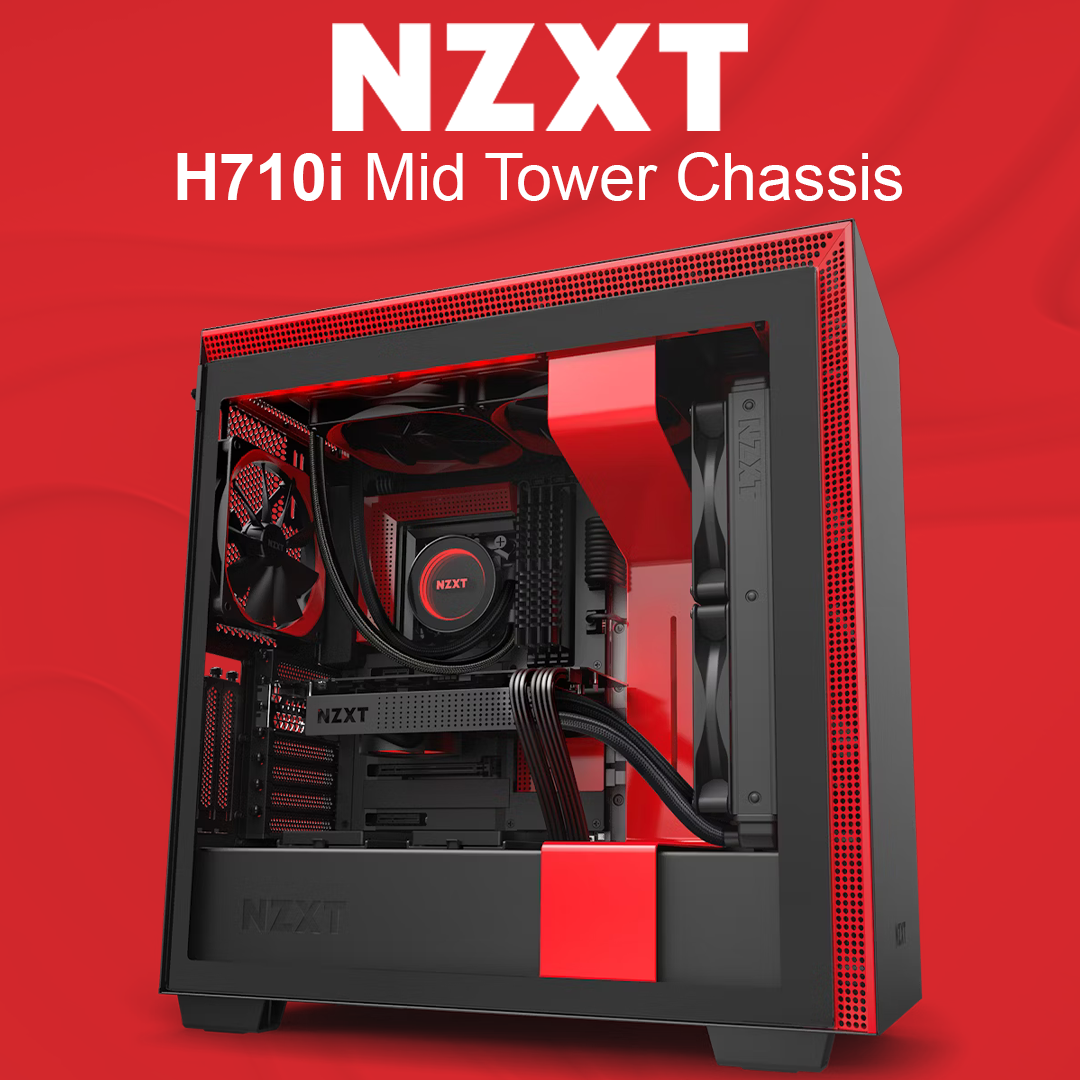

This mid-tower case is excellent for ambitious builds with plenty of space for large or premium components plus two RGB strips and intuitive RGB and fan control with NZXT CAM while bringing the easy-to-build-in features of the compact H510 case series.

The new Smart Device V2 with faster microprocessor with two RGB LED strips
Two RGB lighting channels and three fan channels (for voltage regulated or PWM fans)
USB 3.1 Gen 2-compatible USB-C connector
Iconic cable management bar, and uninterrupted tempered-glass side panel showcase stunning RGB builds
Patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive.
Four fans are included for optimal internal airflow
Removable front panel and PSU intake filters.
Includes a reversible, removeable, top-mounted bracket designed for radiators up to 360mm
Graphics card can be highlighted with a built-in mounting bracket for installing any GPU vertically

Dimensions
Height: 516mm / 20.3 inches
Width: 230mm / 9.05 inches
Depth: 494mm / 19.45 inches
Weight: 12.3 kg / 27.12 lb

Compatibility & Clearance
Max CPU Cooler Clearance: 185mm
Max GPU Clearance: 413mm
Front Fan & Radiator Clearance: 60mm
Top Fan & Radiator Clearance: 30mm
Vertical GPU Clearance: 60mm
Cable Management: 19 - 23mm

Front I/O Ports
USB 3.2 Gen 1 Type-A: 2
USB 3.2 Gen 2 Type-C: 1
Headset Audio Jack: 1

Smart Device
Fan Channels: 3 (10W max per channel)
NZXT RGB Connector: 2 (Support up to 40 LEDs)

Expansion Slots
Standard: 7
Vertical: 2

Drive Bays
2.5": 5 + 1
3.5": 2 + 1

Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm
Filters: All air intakes

Radiator Support
Front: 360mm
Top: 360mm
Rear: 140mm

Fan Specs
Model: Aer P 140mm (Case Version)
Speed: 1,000 ± 200RPM
Airflow: 68.95 CFM
Noise: 29 dBA
Fan Connector: 3-pin

Fan Specs
Model: Aer P 120mm (Case Version)
Speed: 1,200 ± 200RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Fan Connector: 3-pin
