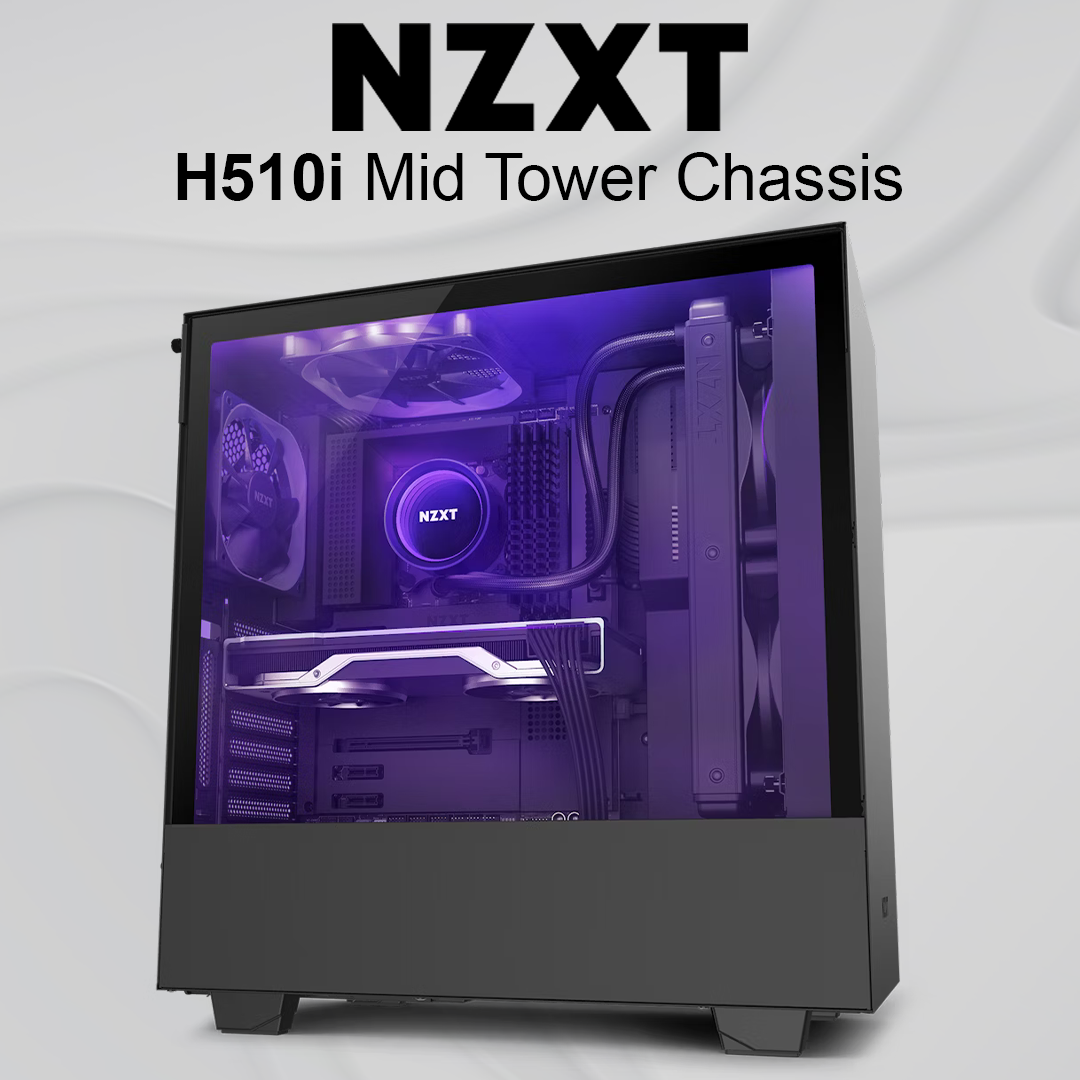

Taking it a step up from the H510, the H510i brings even more features to the H Series.

Pre-installed RGB LED Strip
Built-in mounting bracket for installing your GPU vertically
Lighting and fan control supported by CAM Smart Device V2
Cable routing kit with pre-installed channels and straps
USB 3.1 Gen2-compatible USB-C connector on the front panel
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Two Aer F120mm fans and removable filter on PSU intake.
Removable bracket designed for radiators up to 280mm

Key Specs
Motherboard Support: Mini-ITX, MicroATX, ATX
Enclosure Type: Compact Mid-Tower
Case Material: SGCC Steel, Clear Tempered Glass

Dimensions
Height: 460mm / 18.11 inches
Width: 210mm / 8.27 inches
Depth: 428mm / 16.85 inches
Weight: 6.8 kg / 15lbs

Compatibility & Clearance
Max CPU Cooler Clearance: 165mm
Max GPU Clearance: 321 - 381mm
Front Fan & Radiator Clearance: 60mm
Vertical GPU Clearance: 50.8mm
Cable Management: 19 - 23mm

Front I/O Ports
USB 3.2 Gen 2 Type-A: 1
USB 3.2 Gen 1 Type-C: 1
Headset Audio Jack: 1
Smart Device
Fan Channels: 3 (10W max per channel)
NZXT RGB Connector: 2 (Support up to 40 LEDs)

Expansion Slots
Standard: 7
Vertical: 2

Drive Bays
2.5": 2 + 1
3.5": 2 + 1

Fan Support
Front: 2 x 120mm / 2 x 140mm
Top: 1 x 120mm / 1 x 140mm
Rear: 1 x 120mm
Filters: All air intakes

Radiator Support
Front: 280mm
Top: -
Rear: 120mm

Fan Specs
Model: Aer P 120mm (Case Version)
Speed: 1,200 ± 200RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Fan Connector: 3-pin
