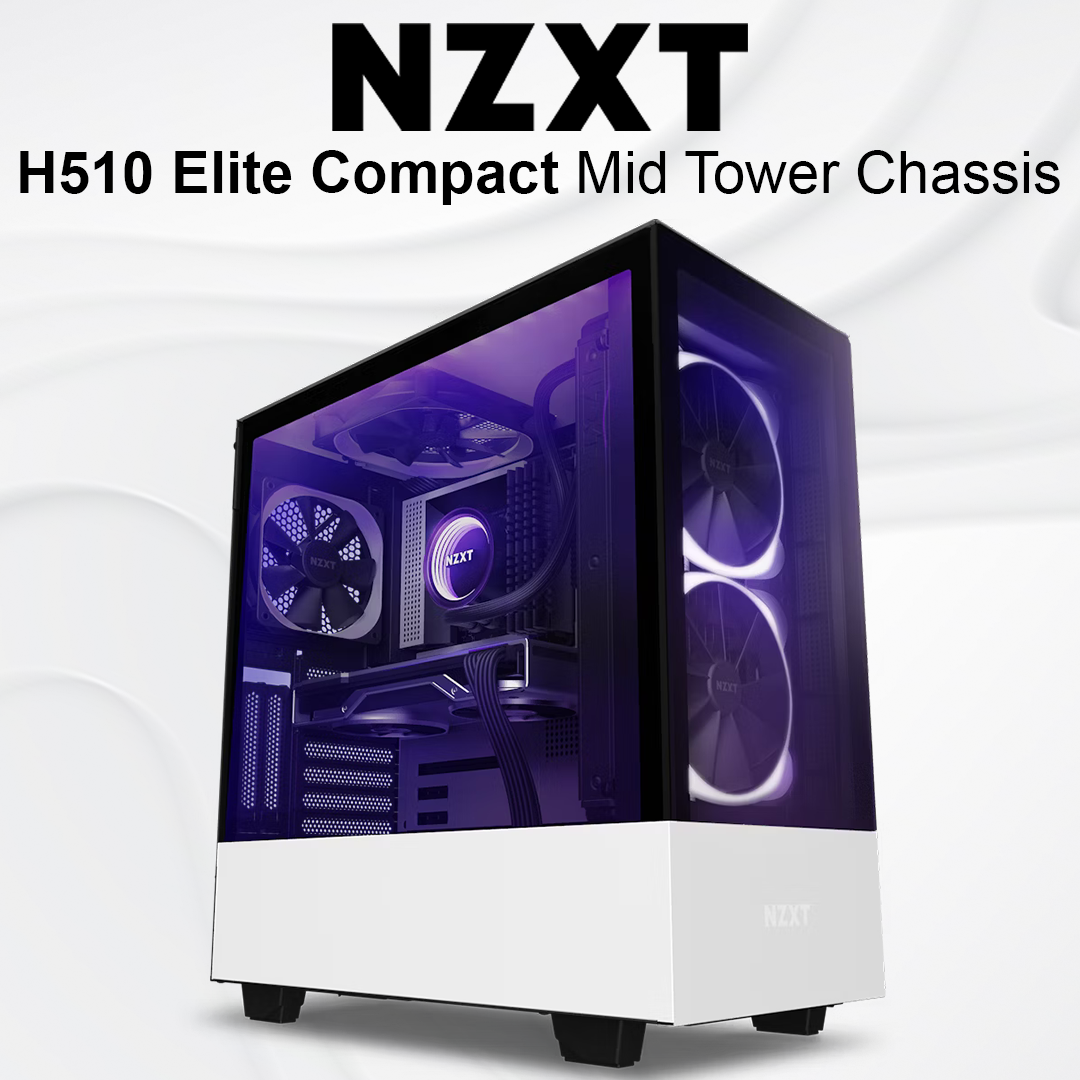

This compact mid-tower is ideal for highlighting RBG-focused builds with a front tempered glass panel that showcases included Aer 2 RGB fans along with the easy-to-build-in features of the H510.

Two tinted tempered glass panels for showcasing stunning RGB builds.
Two Aer RGB 2 fans and one RGB LED are included
Removable radiator mounting bracket and simple-to-use SSD trays
Patented cable management system
Smart Device 2 with two RGB lighting channels and three fan channels that support 0dB modes for voltage-regulated or PWM fans
USB 3.1 Gen 2-compatible USB-C connector
Iconic cable management bar

Key Specs
Motherboard Support: Mini-ITX, MicroATX, ATX
Enclosure Type: Compact Mid-Tower
Case Material: SGCC Steel, Dark Tinted Tempered Glass

Dimensions
Height: 460mm / 18.11 inches
Width: 210mm / 8.27 inches
Depth: 428mm / 16.85 inches
Weight: 7.5 kg / 16.53 lb

Compatibility & Clearance
Max CPU Cooler Clearance: 165mm
Max GPU Clearance: 338 - 368mm
Front Fan & Radiator Clearance: 60mm
Vertical GPU Clearance: 50.8mm
Cable Management: 19 - 23mm

Front I/O Ports
USB 3.2 Gen 1 Type-A: 1
USB 3.2 Gen 1 Type-C: 1
Headset Audio Jack: 1
Smart Device
Fan Channels: 3 (10W max per channel)
NZXT RGB Connector: 2 (Support up to 40 LEDs)

Expansion Slots
Standard: 7
Vertical: 2

Drive Bays
2.5": 2 + 1
3.5": 2 + 1

Fan Support
Front: 2 x 120mm / 2 x 140mm
Top: 1 x 120mm / 1 x 140mm
Rear: 1 x 120mm

Filters: All air intakes

Radiator Support
Front: 280mm
Top: -
Rear: 120mm

Fan Specs
Model: Aer RGB 2 140mm
Speed: 500 - 1,500 ± 300RPM
Airflow: 30.39 - 91.19 CFM
Static Pressure: 0.17 - 1.52 mm-H₂O
Noise: 22 - 33 dBA
Fan Connector: 4-pin PWM

Fan Specs
Model: Aer P 140mm (Case Version)
Speed: 1,000 ± 200RPM
Airflow: 68.95 CFM
Noise: 28 dBA
Fan Connector: 3-pin

Fan Specs
Model: Aer P 120mm (Case Version)
Speed: 1,200 ± 200RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Fan Connector: 3-pin
