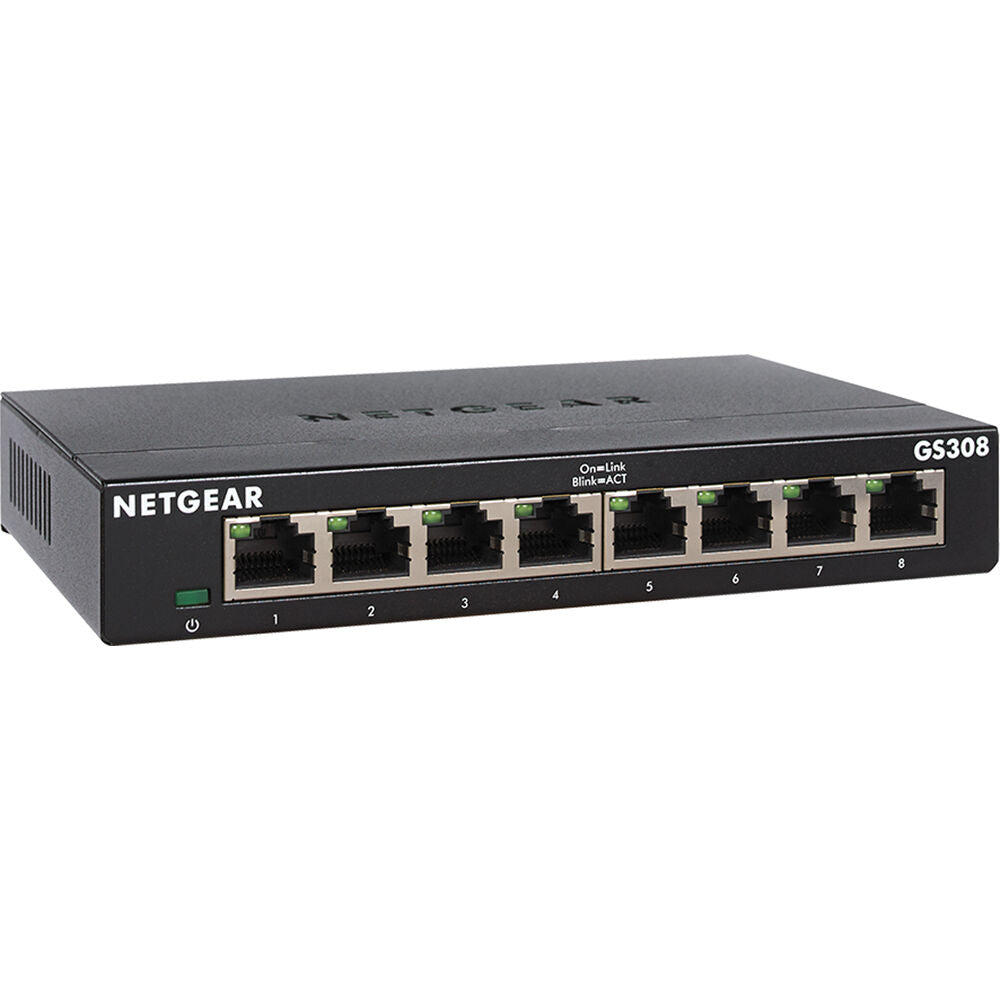

Boost the switching capacity of your small business with the 8-Port Business Essentials Gigabit Ethernet Unmanaged Switch. Capable of up to 16 Gb/s of total switching bandwidth, this unmanaged switch comes equipped with 8 Gigabit Ethernet ports.

Support for the Energy-Efficient Ethernet standard helps the plug-and-play switch to conserve power, while auto-MDI/MDIX support eliminates the need for crossover cables. The switch's 802.1p QoS capabilities allow for traffic prioritization, while its fanless design helps to ensure quiet operation.

LED indicators for ease of use
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Non-blocking switching architecture for maximum throughput at wire speed
Durable and rugged metal case
Ideal for small office and home networks
Standards-based technology helps to ensure interoperability with standards-based devices in the existing network
Auto power down
Short cable detection

Interfaces
Ports - 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)

Protocols
Supported Protocols - Auto-MDIX/MDI

MAC Filtering
Jumbo Frames Support - 9216 Bytes
MAC Address Table Size - 8K

Standards
Supported IEEE Standards - 802.1p, 802.3, 802.3ab, 802.3az, 802.3i, 802.3u, 802.3x

Performance
Latency - 2.6 µs
Forwarding Rate - 1.4 Mpps
Switching Bandwidth - 16 Gb/s (Non-Blocking)
Packet Buffer - 128 kB

Electrical
Power Draw - 3.52 W (Active)
0.57 W (Standby)

DC Input Power - VDC at 0.5 A

General
Material of Construction - Metal
Indicator Lights - Link/Activity, Power
Dimensions - 6.22 x 3.98 x 1.14" / 158 x 101 x 29 mm
Weight - 0.84 lb / 0.38 kg

Packaging Info
Package Weight - 1.4 lb
Box Dimensions (LxWxH) - 9 x 7.6 x 2.3"
