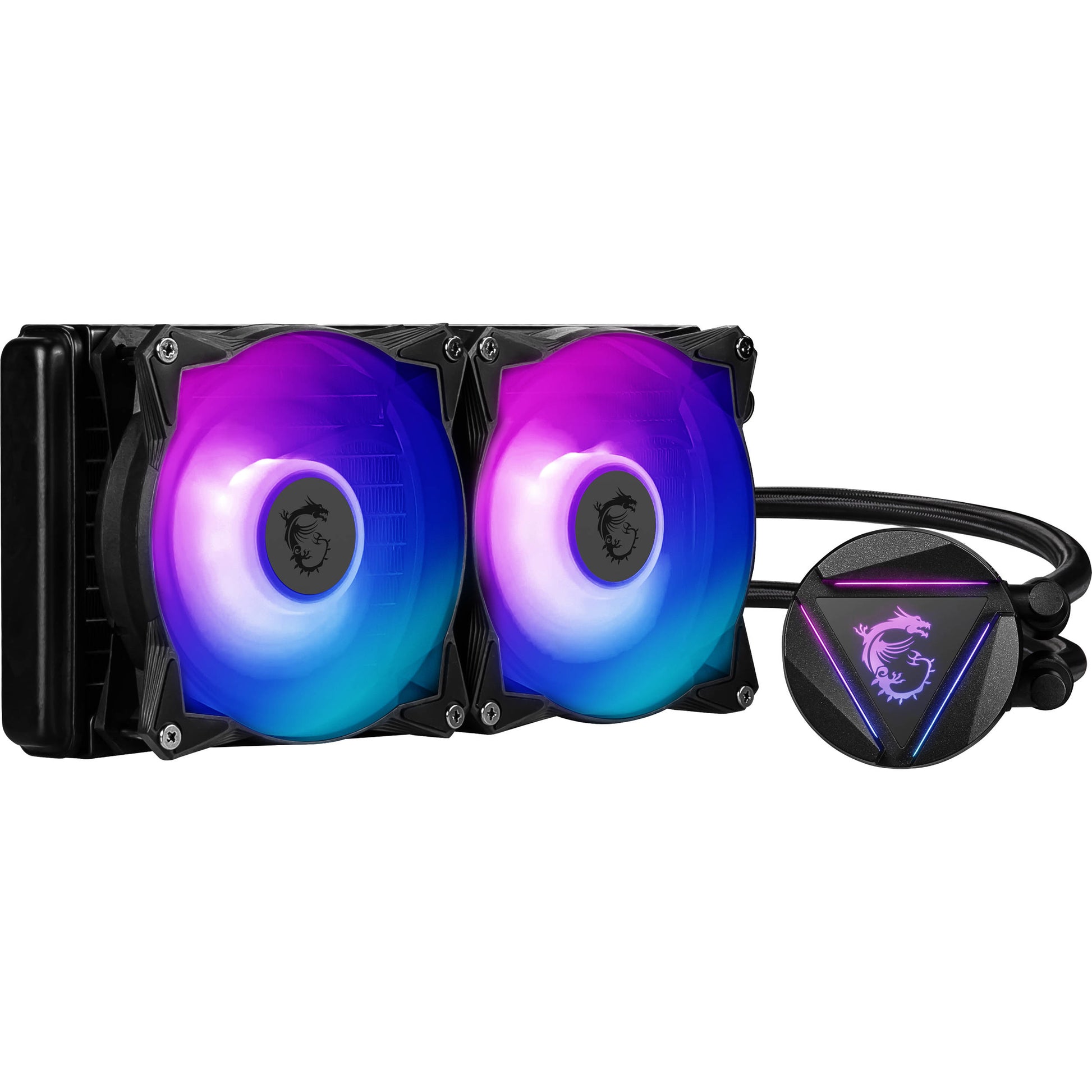

CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

CPU Socket
Intel - LGA 1150/1151/1155/1156/1200
LGA 1366/2011/2011-3/2066

AMD - AM4/FM2+/FM2/FM1/AM3+/AM2+/AM2

Radiator
Dimensions - 274 x 120 x27mm /10.79 X4.7X 1.26 inch
Water Cooling Pipe Length - 400mm
Material - Aluminum

Fan
Fan Dimensions - 120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
Fan Speed - 500 ~ 2000 RPM
Fan Air Flow - 21.63 ~ 78.73 CFM
Fan Noise Level - 14.3 ~ 34.3 dBA
Fan Bearing Type - Two Ball Bearing
Fan Connector - 4-Pin (PWM)
Fan Rated Voltage - 12V DC
Fan Rated Current - 0.15 A
Fan Power Consumption - 1.8 W
Fan Lighting - ARGB

Pump
Pump Bearing Type - Ceramic Bearing
Pump Speed - 4200 RPM
Pump Noise Level - 18 dBA
Pump Connector - 3-Pin
Pump Rated Voltage - 12V DC
Pump Load Current - 0.34 A
Pump Power Consumption - 4.08 W
