The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

The RB2011iL-RM includes a new feature - power injector on Ethernet port 10 - it can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Maximum load on the port is 500mA. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 64MB of RAM and a Level4 RouterOS license, as well as five Gigabit Ethernet ports and five Fast Ethernet ports for unbeliveable USD 99!

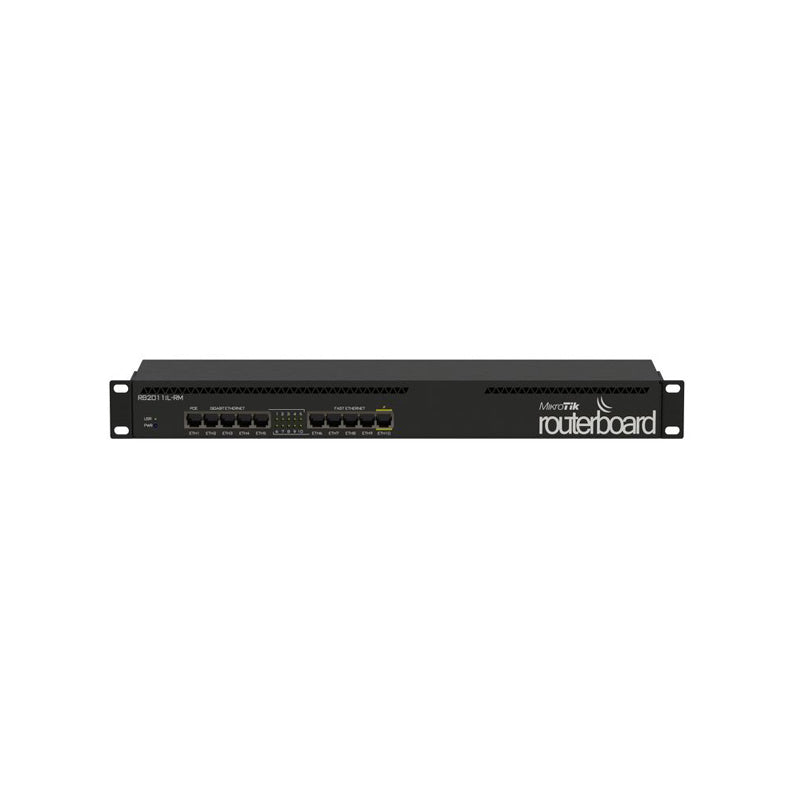

RouterBOARD 2011iL-RM comes with 1U rackmount enclosure and power supply.

Specifications
Details
Product code - RB2011iL-RM
Architecture - MIPSBE
CPU - AR9344
CPU core count - 1
CPU nominal frequency - 600 MHz
Dimensions - 443 x 92 x 44 mm
RouterOS license - 4
Operating System - RouterOS
Size of RAM - 64 MB
Storage size - 128 MB
Storage type - NAND
MTBF - Approximately 100'000 hours at 25C
Tested ambient temperature - -40°C to 60°C

Powering
Details
Number of DC inputs - 2 (DC jack, PoE-IN)
DC jack input Voltage - 8-30 V
Max power consumption - 18 W
Max power consumption without attachments - 6 W
FAN count - Passive
PoE in - Passive PoE
PoE in input Voltage - 8-30 V
PoE-out

Details
PoE-out ports - Ether10
PoE out - Passive PoE
Max out per port output (input 18-30 V) - 510 mA
Max total out (A) - 510 mA

Ethernet
Details
10/100 Ethernet ports - 5
10/100/1000 Ethernet ports - 5

Certification & Approvals
Details
Certification - CE, EAC, ROHS
IP - IP20
