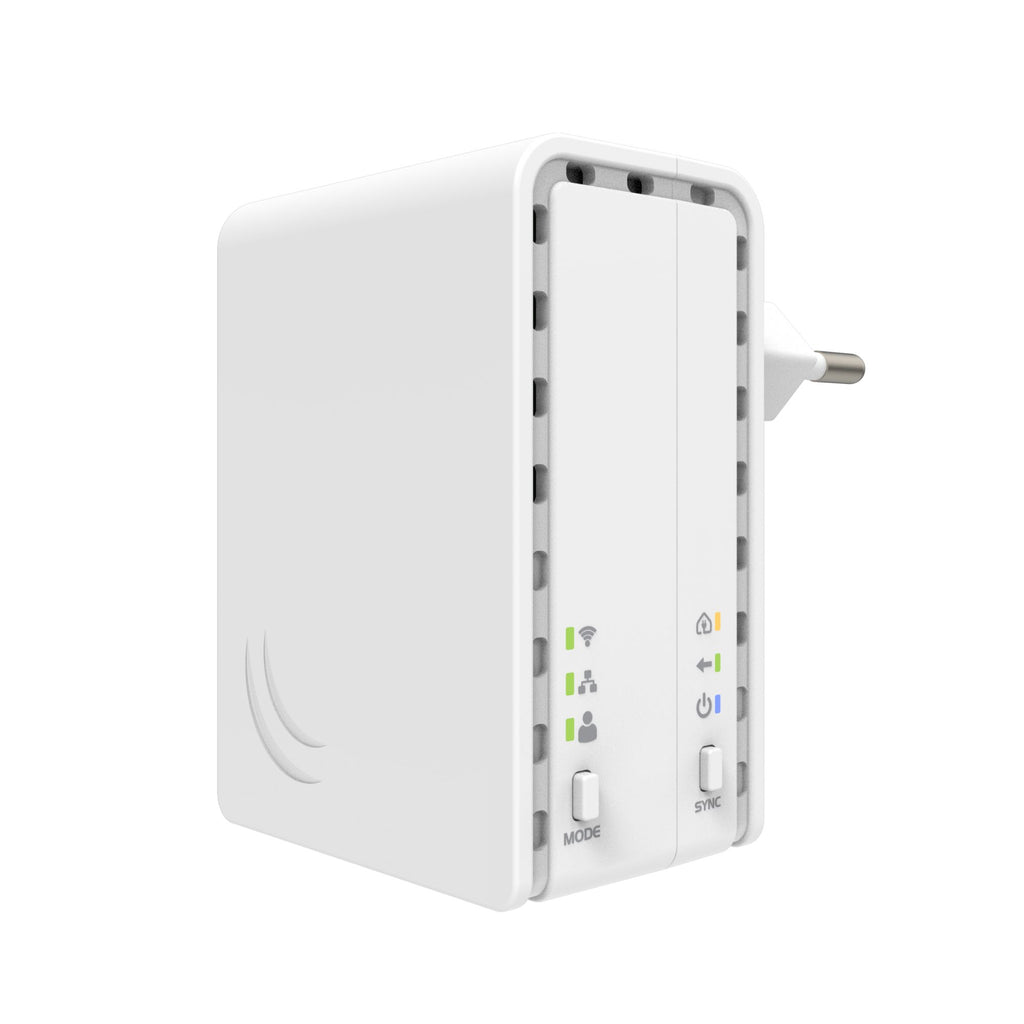

The PWR-Line AP is a small Wi-Fi access point, made as an accessory to your existing network, for places, where your signal or your cable is unable to reach. Unit comes with Type C power plug (commonly used in Europe, South America & Asia).

Especially useful in homes with thick walls, where you can extend Wi-Fi coverage to those rooms, where signal is poor, without having to re-wire your house.

Simply plug this device directly into one of the LAN ports of your MikroTik router, and add another one somewhere further in your premises. They will link together through the power lines. You can install up to eight PWR-LINE devices to further build your network.

Product code - PL7411-2nD
Architecture - MIPSBE
CPU - QCA9533
CPU core count - 1
CPU nominal frequency - 650 MHz
PLC chipset - AR7420
Dimensions - 50 x 68 x 33mm
RouterOS license - 4
Operating System - RouterOS
Size of RAM - 64 MB
Storage size - 16 MB
Storage type - FLASH
MTBF - Approximately 100'000 hours at 25C
Tested ambient temperature - -20°C to 60°C

Powering
Details
AC input range - 100-240
Frequency (Hz) - 50-60
Max power consumption - 7 W

Wireless specifications
Details
Wireless 2.4 GHz Max data rate - 300 Mbit/s
Wireless 2.4 GHz number of chains - 2
Wireless 2.4 GHz standards - 802.11b/g/n
Antenna gain dBi for 2.4 GHz - 1.5
Wireless 2.4 GHz chip model - QCA9533
Wireless 2.4 GHz generation - Wi-Fi 4

Ethernet
Details
10/100 Ethernet ports - 1
