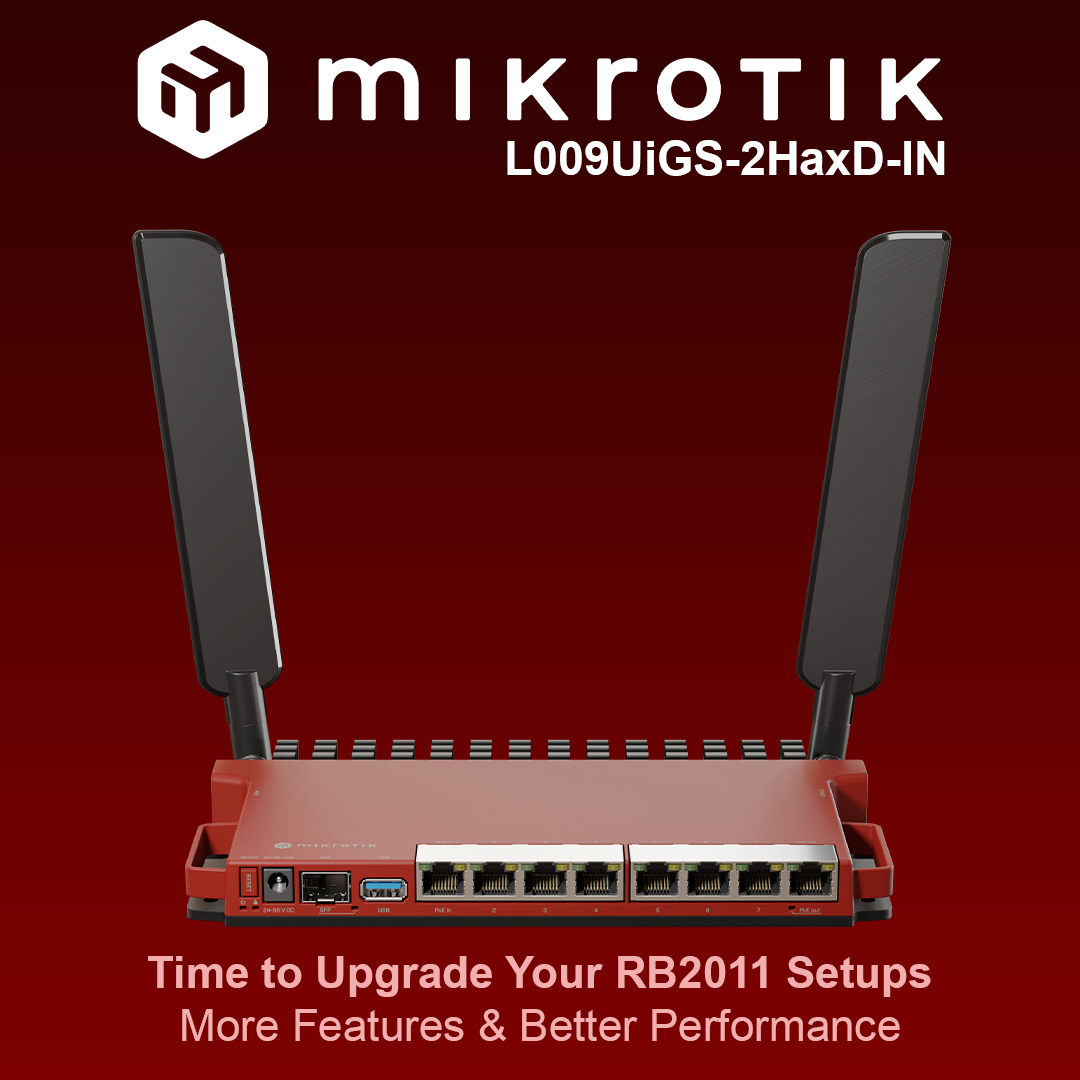

The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. In fact, it was our very first router with SFP. Finally, it’s time for an upgrade. But don’t worry: we’ve kept and improved all the key elements and features of the beloved RB2011.

Product code: L009UiGS-2HaxD-IN
Architecture: ARM
CPU: IPQ-5018
CPU core count: 2
CPU nominal frequency: 800 MHz
Switch chip model: 88E6190
RouterOS license: 5
Operating System: RouterOS v7
Size of RAM: 512 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Wireless capabilities
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 4
Wireless 2.4 GHz chip model: IPQ-5018
Wireless 2.4 GHz generation: Wi-Fi 6
WiFi speed: AX600

Ethernet
10/100/1000 Ethernet ports: 8
Number of 1G Ethernet ports with PoE-out: 1

Fiber
SFP ports: 1 (2.5G supported)
Peripherals
Details
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1.5

Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 24-56 V
Max power consumption: 47 W
Max power consumption without attachments: 14 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 24-56 V

PoE-out
PoE-out ports: Ether8
PoE out: Passive PoE
Low voltage PoE-Out current limit: 1 A
High voltage PoE-Out current limit: 450 mA
Max total out (A): 1.0 A
