Mikrotik hAP AC Lite Access Point

Mikrotik hAP AC Lite Access Point

Regular price
Rf2,100.00
Sale price
Rf2,100.00
Regular price
Sold out
Unit price
per

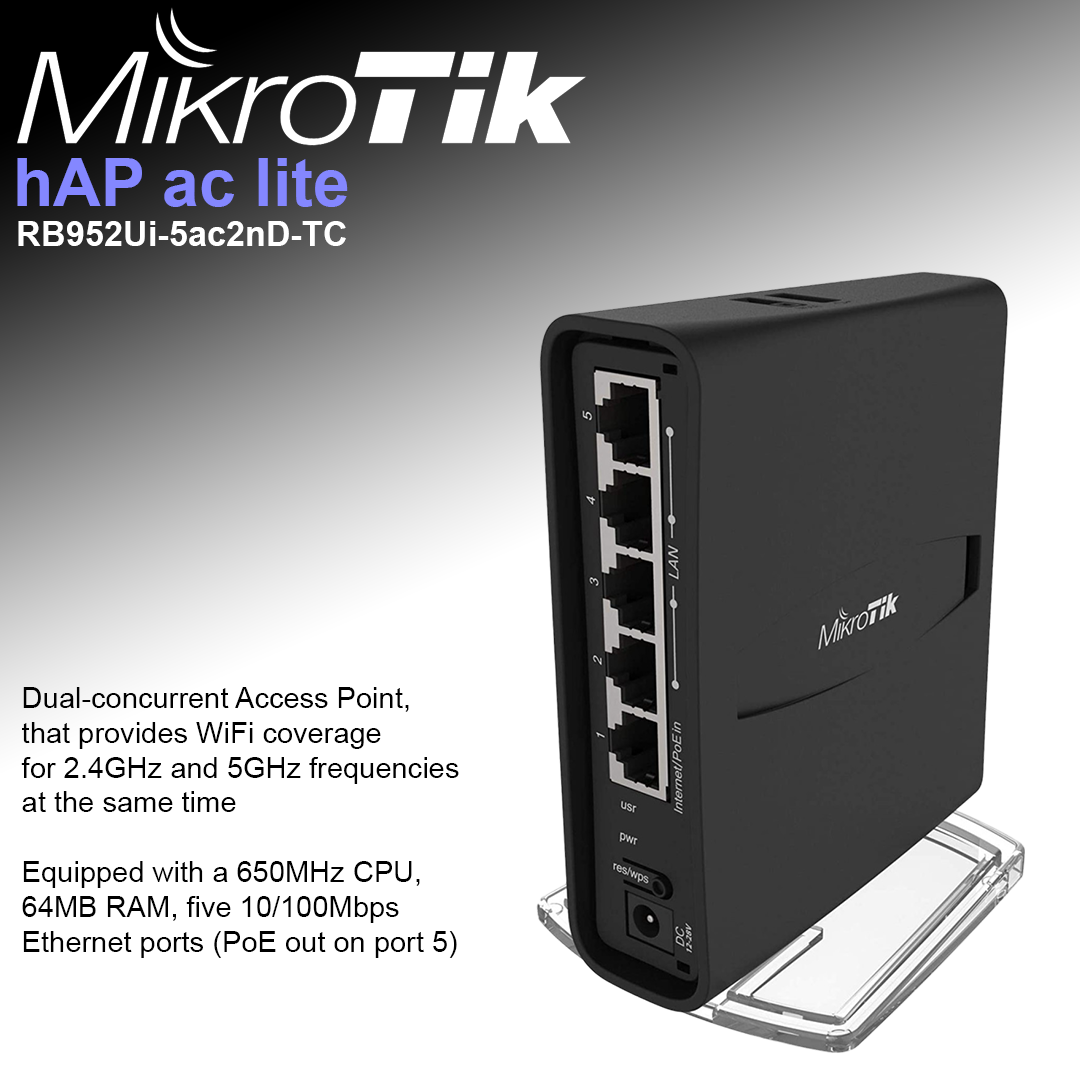

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

Specifications
Details
Product code - RB952Ui-5ac2nD-TC
Architecture - MIPSBE
CPU - QCA9531
CPU core count - 1
CPU nominal frequency - 650 MHz
Dimensions - 34 x 119 x 98mm
RouterOS license - 4
Operating System - RouterOS
Size of RAM - 64 MB
Storage size - 16 MB
Storage type - FLASH
MTBF - Approximately 100'000 hours at 25C
Tested ambient temperature - -30°C to 70°C

Wireless capabilities
Details
Wireless 2.4 GHz Max data rate - 300 Mbit/s
Wireless 2.4 GHz number of chains - 2
Wireless 2.4 GHz standards - 802.11b/g/n
Antenna gain dBi for 2.4 GHz - 2
Wireless 2.4 GHz chip model - QCA9531
Wireless 2.4 GHz generation - Wi-Fi 4
Wireless 5 GHz Max data rate - 433 Mbit/s
Wireless 5 GHz number of chains - 1
Wireless 5 GHz standards - 802.11a/n/ac
Antenna gain dBi for 5 GHz - 2
Wireless 5 GHz chip model - QCA9887
Wireless 5 GHz generation - Wi-Fi 5
AC speed - AC750

Ethernet
Details
10/100 Ethernet ports - 5

Peripherals
Details
Number of USB ports - 1
USB Power Reset - Yes
USB slot type - USB type A
Max USB current (A) - 1

Powering
Details
Number of DC inputs - 2 (DC jack, PoE-IN)
DC jack input Voltage - 10-28 V
Max power consumption - 20 W
Max power consumption without attachments - 8 W
FAN count - Passive
PoE in - Passive PoE
PoE in input Voltage - 10-28 V

PoE-out
Details
PoE-out ports - Ether5
PoE out - Passive PoE
Max out per port output (input 18-30 V) - 500 mA
Max total out (A) - 500 mA

Certification & Approvals
Details
Certification - CE, FCC, IC, EAC, ROHS
IP - IP20

Wireless specifications
2.4 GHz Transmit (dBm) - Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71

5 GHz Transmit (dBm) - Receive Sensitivity
6MBit/s 23 -93
54MBit/s 20 -75
MCS0 23 -93
MCS7 19 -71
MCS9 16 -63
