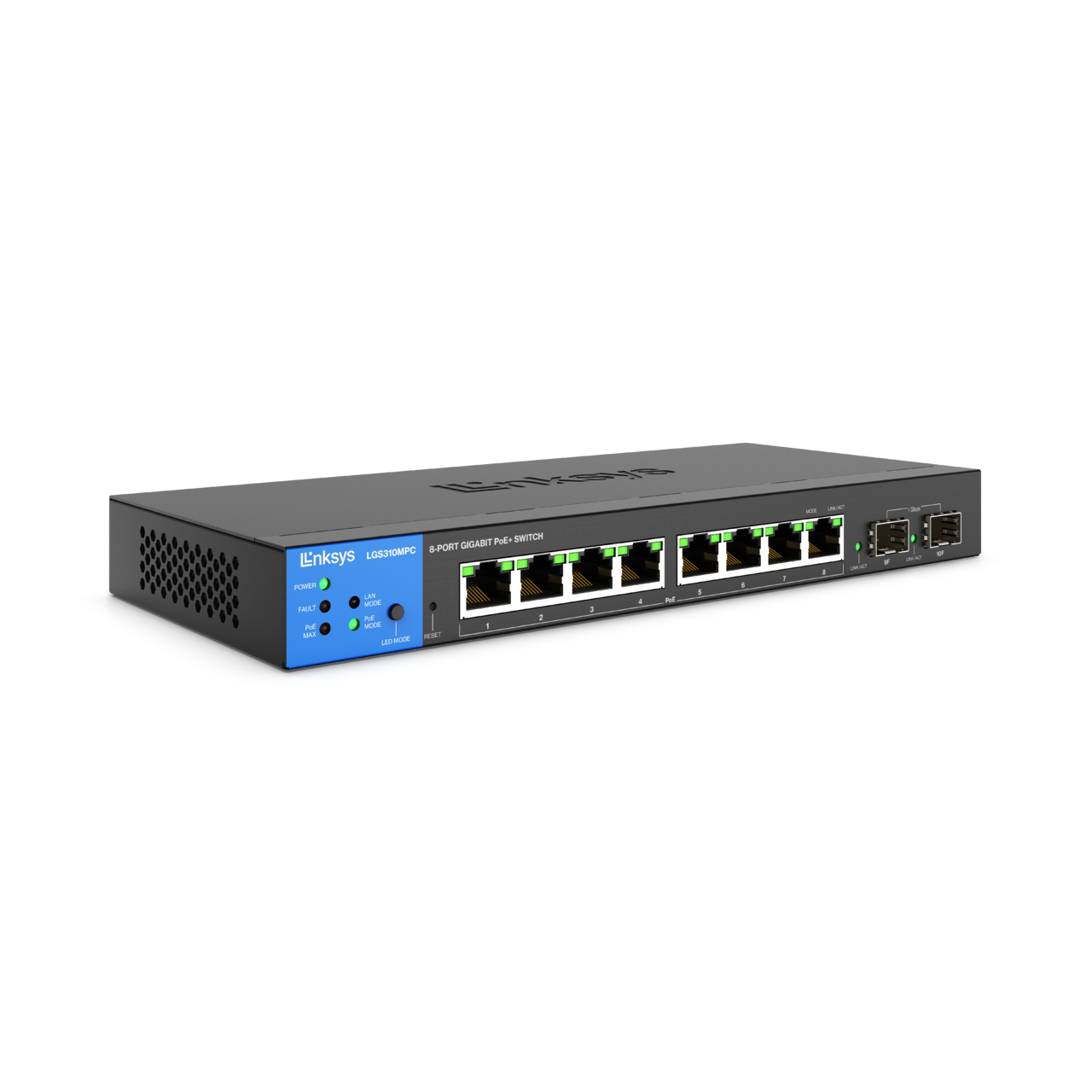

Designed for business-class management, security, speed, and quality of service with 8 Gigabit Ethernet PoE+ ports, 2 Gigabit SFP uplinks and 110W of total PoE power budget.

Integrated Power over Ethernet Plus (110W)
Gigabit SFP Uplink Ports (2)
Advanced Network Security and QoS
TAA Compliant

Switch Type
Managed

Switch Ports
8

PoE+ Budget
111W - 250W

PoE Support
Yes

Power Consumption
133.77W

Jumbo Frame (FE, GE)
10Kbytes

LEDs
Power, Fault, PoE Max, LAN Mode, PoE Mode

VLAN
Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support

Memory
256MB

Forwarding Rate
14.88 Mpps

Dimensions (LxWxH)
240 x 105 x 27 mm
9.45 x 4.13 x 1.06 in

Weight
636 g (1.40 lb)

Number of VLANs Supported
256 active VLANs (4,096 range)

Operating Humidity
10 to 90% RH

Operating Temperature
0 to 40°C (32 to 104°F)

Ports
2 Gigabit SFP
8 Gigabit Ethernet

Power Dedicated to PoE+
110W

Security Features
802.1x Radius authentication
DHCP snooping
DOS Attack Prevention
IP-MAC binding
Port Isolation (Protected Ports)
Port Security (256 max entries per port)

Rate Limiting
Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps

Power Input
100–240V
2.2A
50–60 Hz

Spanning Tree
IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)

Quality Of Service
8 hardware queues
Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Strict, Weighted Round Robin (WRR)

Storage Temperature
-20 to 70°C (-4 to 158°F)

RMON
Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis

MAC Address Table Size
8K

Switching Capacity
20 Gbps

HOL Blocking Prevention
Head of line (HOL) blocking prevention

Auto Voice VLAN
Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

Other Management
Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP

Link Aggregation
IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group

Access Control
Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny

Storm Control
Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps

Management Interface
HTTP
HTTPS

Routing
Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)

SNMP
Version 1
Version 2c
Version 3

Storage Humidity
5 to 95% RH (non-condensing)

IGMP Snooping
IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups

Power Saving
EEE

Port Mirroring
Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer

Firmware Upgrade
Web Browser (HTTP/HTTPS)
