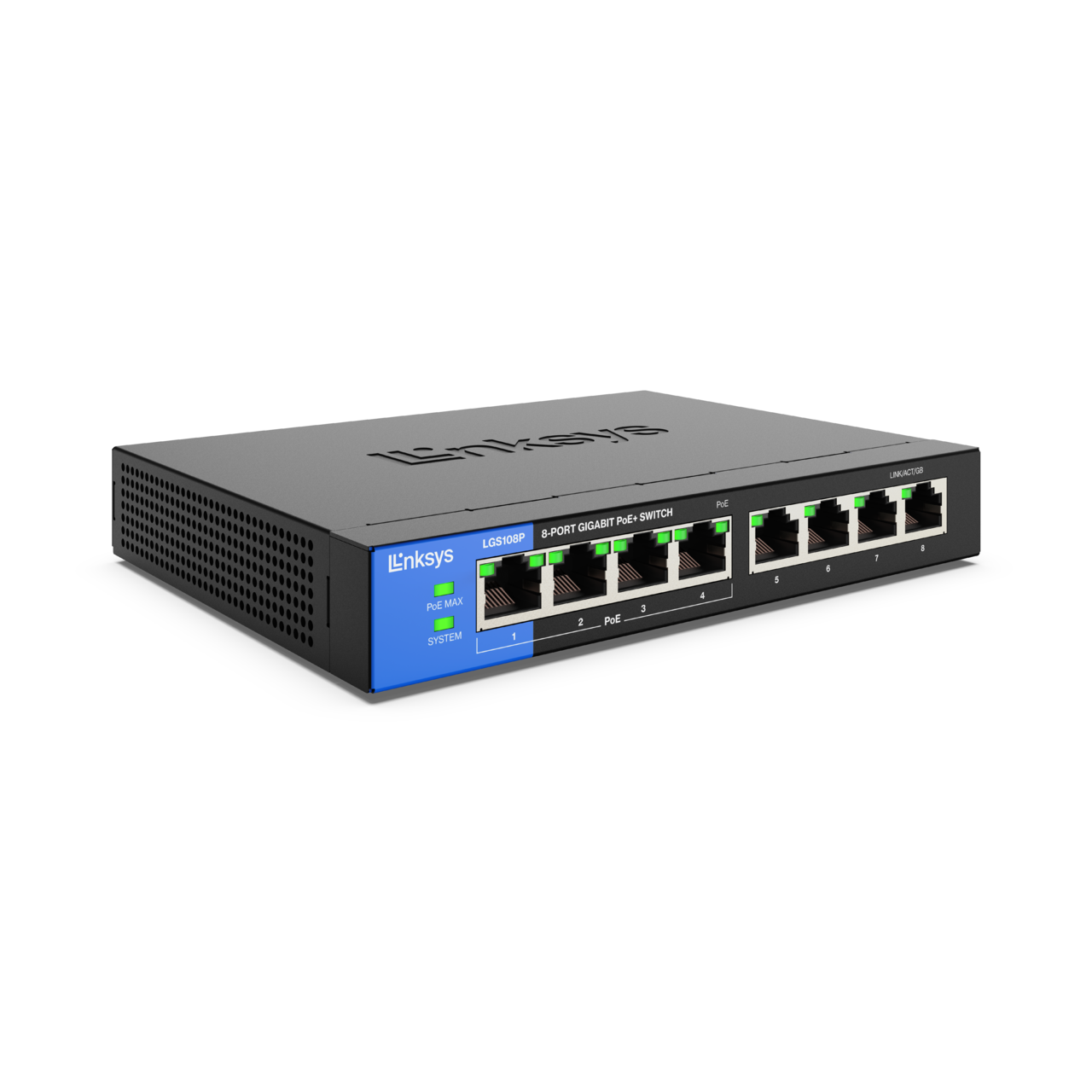

Upgrade the data paths of your local wired network to information superhighways with 8-port desktop Gigabit PoE switches.

Wired connection speed up to 1,000 Mbps
8 Gigabit Ethernet autosensing ports
Power over Ethernet (PoE) support
Easy plug & play connection
QoS
Meets EEE (Energy Efficient Ethernet) 802.3az standard

Switch Type
Unmanaged

Switch Ports
8

PoE+ Budget
Up to 110W

PoE Support
Yes

Power Consumption
3.83 W / 7.0 W

LEDs
Link, speed, activity, and PoE indicators

Dimensions (LxWxH)
210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)

Weight
0.50 kg (1.10 lbs)

Minimum System Requirements
Connected devices need Ethernet connectivity and Ethernet cables

Operating Humidity
10–90% (non-condensing)

Operating Temperature
0–50°C (32–122°F)

Ports
8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W

Mounting
Wall

Quality Of Service
802.1p and DSCP

Storage Temperature
-40–70°C (-40–158°F)

Warranty and Support
5 Year Warranty

MAC Address Table Size
8,000 entries

Performance
0.01488 Mpps for 10M port
0.1488 Mpps for 100M port
1.488 Mpps for 1000M port
Full line rate and forwarding rate of 64B frame at:

Power
54 VDC, 1.2 A

Regulatory Compliance
FCC Class A, CE

Maximum Power Consumption
1.71 W / 5.08 W

Fans
None

Power Consumption
3.83 W / 7.0 W

Storage Humidity
10–90% (non-condensing)

Power Saving
Cable connected detection, sleep mode

Network Standards
IEEE 802.3
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at (PoE+)
IEEE 802.3az
IEEE 802.3u
IEEE 802.3x

Bandwidth
16 Gbps (non-blocking)

2 Monitors
External
