Simple assembly with interlocking and daisy chain functionality
Only two cables required for a cluster of fans

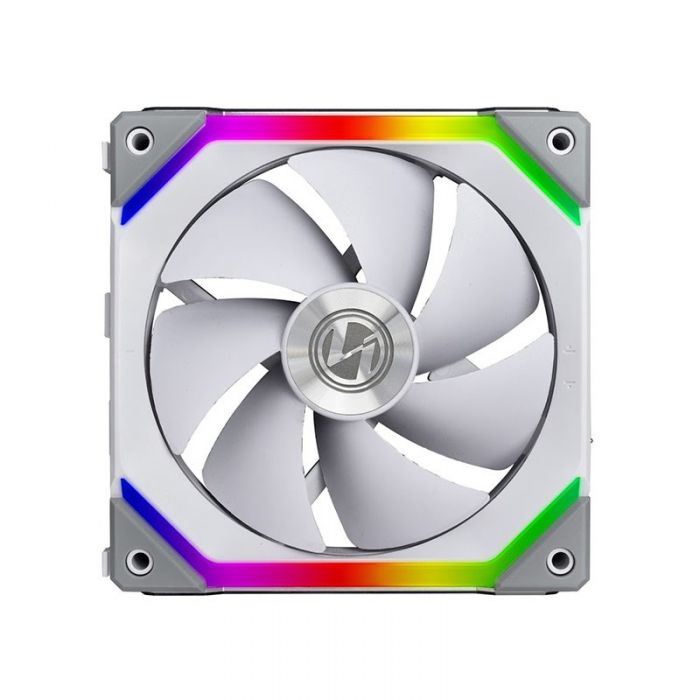

Aesthetic look with aluminum medallion and LEDs on both sides
Customized LEDs on fan blades and the inner edge of the fan frame
Multiple lighting effects/fan speed control via L-connect software
Improved static pressure and airflow while remaining silent

BETTER PERFORMANCE
Compared to UNI FAN SL120, AL120 has better performance in air flow(64.5 CFM), noise levels(17 ~ 28.3 dB) and static pressure(2.62 mmH2O).

ENDLESS LIGHTING EFFECT COMBINATIONS
The ARGB LEDs are located at the inner fan blade and the four corner edges of the fan frame.

Users can set both the fan blade lighting effects and the fan frame inner edge lighting effects separately, or go with the built-in combined lighting effects.

L-CONNECT 2 SOFTWARE TO CONTROL AL120
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.

ADJUST THE SPEED OF EACH FAN GROUP
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.

SET PERSONALIZED LED MODE AND COLOR
Designed for AL120, users can choose to set their personalized lighting effect through L-Connect 2. Thousands of combinations can be accomplished.

CONTROL UP TO 16 FANS IN ONE GO
The exclusive controller (UNI HUB) for the AL series that can connect up to 16 fans is included in the 3 pack.

MANAGE UP TO 64 FANS
L-Connect 2 can now manage a maximum of 4 controllers at a time, allowing users to control 64 fans within the software.

MATERIAL
PBT/PC/Aluminum

FAN DIMENSION
120 X 120 X 25mm

RATED VOLTAGE
DC 12V (FAN) & 5V (LED)

FAN SPEED
800~1900 RPM

AIR PRESSURE
2.62 mmH2O (Maximum)

AIRFLOW
64.5 CFM (Maximum)

ACOUSTIC NOISE
17 ~ 28.3 dB

LOCKED CURRENT
>= 50mA

BEARING TYPE
Fluid Dynamic Bearing (FDB)

OPERATION VOLTAGE
DC 12V & 5V

START-UP VOLTAGE
DC 6.0V

INPUT CURRENT
0.22A(FAN) / 0.66A (LED)

INPUT POWER
5.94Watt
