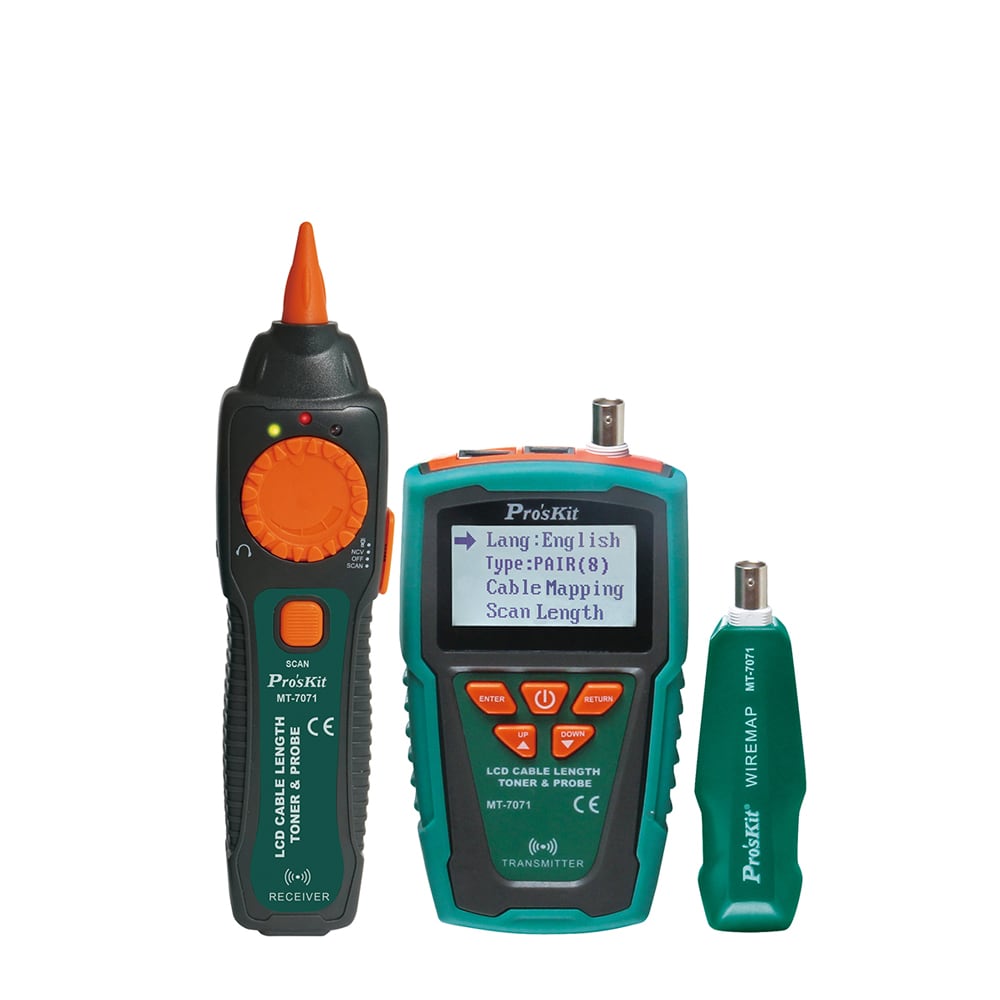

LCD Cable Length Toner & Probe Kit - MT-7071
LCD Cable Length Toner & Probe Kit - MT-7071
Couldn't load pickup availability
Delivery Options
Delivery Options
Free Delivery
- Male
- Hulhumale
- Boat Delivery
Air Cargo (Additional charges will apply)
- Redbox Delivery
- F&C Speed Delivery
- Maldivian Air Cargo Delivery
Network toner and probe kit designed for measuring cable length up to 1200 m (4000 ft), locating and verifying the cable status and wiring troubleshooting. Pro'sKit MT-7071 is ideal for all installation and maintenance fields of telecommunication, networking, cable TV, etc.
FEATURES
Measuring cable length up to 1200 m (4000 ft)
Wire tracing up to 3 km
Cable mapping and status indication
Non-contact voltage detection
TECHNICAL SPECIFICATIONS
TONER
Cable types RJ45 (UTP/STP), RJ11/12 (2/4/6 pin), coaxial, alligator clips
Test modes 1 KHz, wire mapping
Measurement technology Cable capacitance method
Max. distance 1200 m (4000 ft)
Min. distance
split pair: 1 m (3 ft)
other cables: 1.25 m (4 ft)
Calibration accuracy ±2.0%
Max. distance of transmission ≧3 km (1 kHz)
Dimensions 138 × 80 × 35 mm
RECEIVER
Signal status indication 1 kHz, 1 LED and buzzer, built-in headphone jack
Dimensions 198 × 45 × 33 mm
REMOTE UNIT
Compatible connectors RJ45 (8 pin), RJ11/12 (6 pin), BNC
Dimensions 90 × 32 × 30 mm
