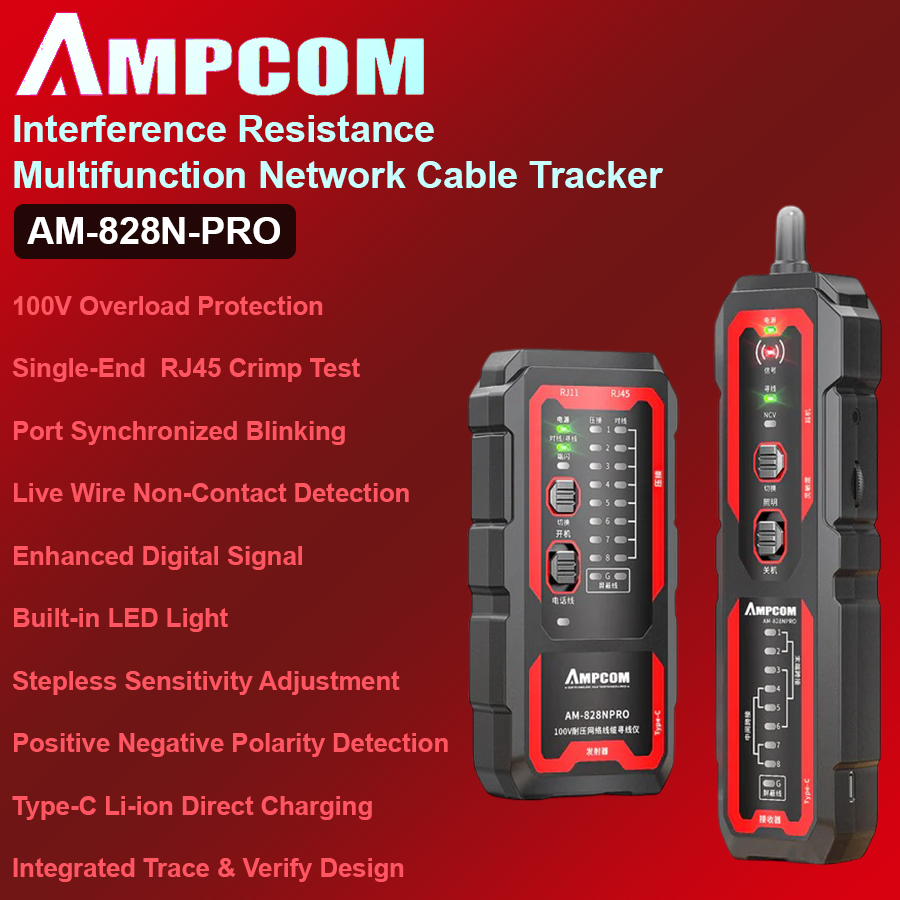

100V Voltage-resis Anti-burnout
Ultra-high voltage-resistant circuit design ensures safety and allows operation under voltages below 100V.Using digital signals, it can operate normally even in high-interference environments.

Switch Port Flashing Function
By plugging one end into the switch and the other into the network cable tester, this function triggers the switch's port LED to flash, enabling rapid identification of the corresponding RJ45 cable.

Auto Tracing and Testing Switching
Once the cable is traced, there is no need to switch the transmitter to testing mode. Simply plug the other end into the testing port to immediately perform wire alignment testing, which significantly improves work efficiency.

RJ45 Connector Crimping Test
After crimping the RJ45 connector, simply insert it into the crimping detection port to quickly check if the crimping is accurate.

Non-contact Voltage Testing
Supports non-contact voltage testing for live cables with AC 50/60Hz over 70V, avoiding electric shock risks and enabling quick target location.

Use alligator clips to clamp both ends of the power supply under test, then insert into the RJ11 port for testing
Black Clip Positive Red Clip Negative
Light-Red
Black Clip Negative Red Clip PositiveLight-Blue

Brand: Ampcom

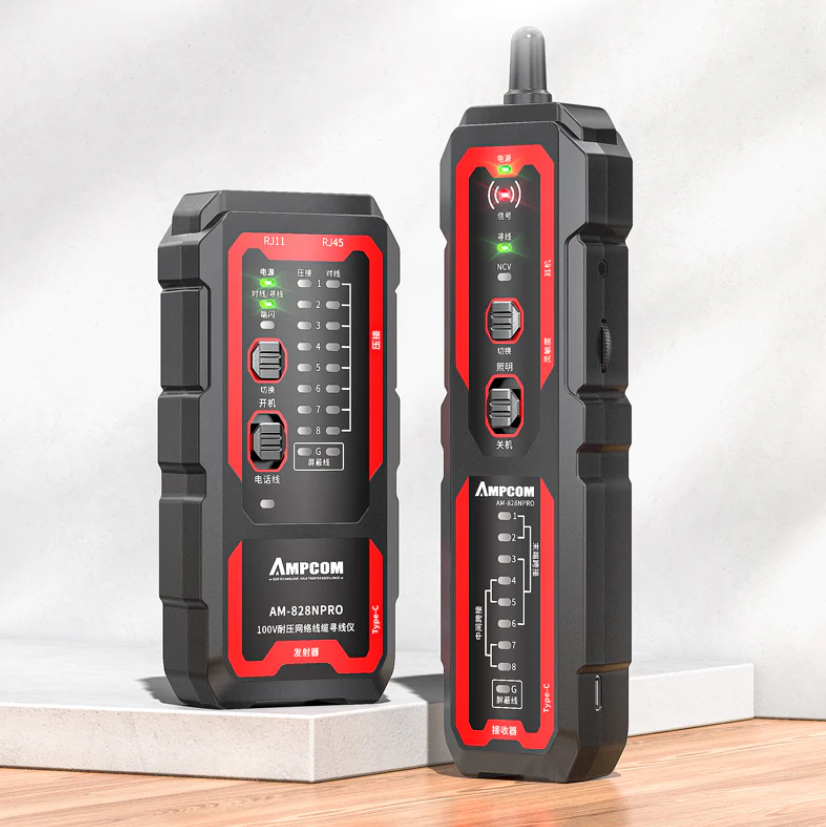

Model: AM-828NPRO
Charging: Via USB C
Battery: 3.7V 1200mAh Lithium Rechargable Battery
Cable Testing: Auto
Scan: Strong Anti-Electromagnetic Interference Ability
Cable Tracking: Interference Resitance Digital Signal
Polarity Test: Yes
Crip Test: Yes
Port Flash: Yes
NCV: Yes
Tel Port Test: Yes
Lamp: Yes
Sensitivity Adjustment: Yes
Headphone Fuction: Yes
Low Battery Prompt: <3.3V+0.1V
Automatic Shutdown: After 30 Mins of Inactivity
Working Temperature: -10C to 45C
Max Voltage: 100V Voltage Resistance Anti Burnout
Charging Time: 3.5 Hours

Size:
Emitter: 135x61x30 mm
Receiver: 194x46x30 mm
